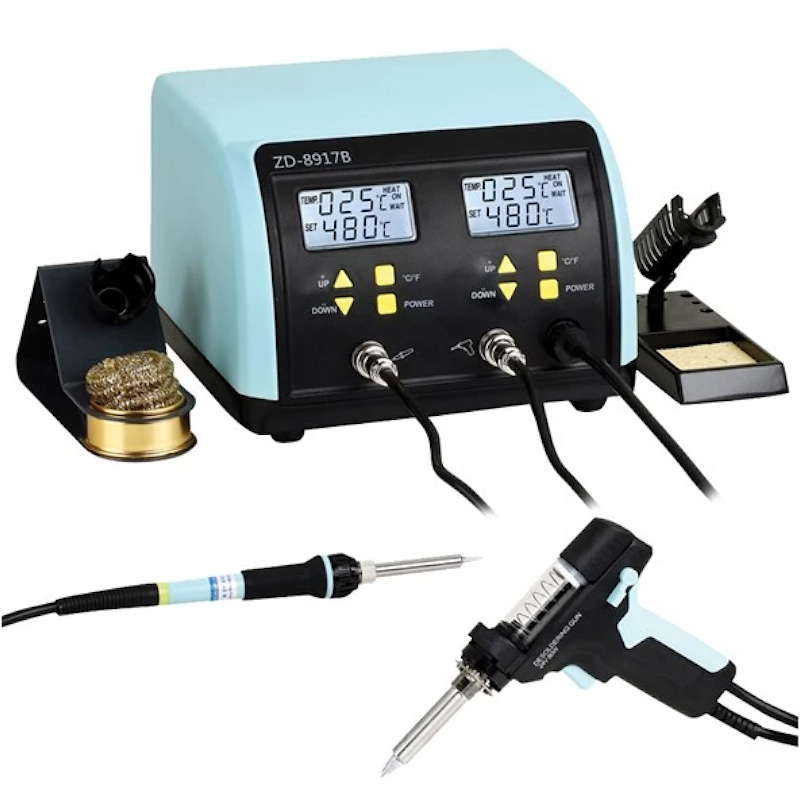

Estação de soldadura e dessoldadura digital - ZD-8917B

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description

The high-performance multifunctional (soldering / desoldering) station ZD-8917B is developed and manufactured for research, production and repair of electronic products and is adapted for lead-free soldering and desoldering. This device is used in the field of electronic research, teaching and production, especially in the repair and reworking of electronic devices and communication equipment. Thanks to the fast heating and high power, this station is suitable for clean desoldering of all types of printed circuit components. Thanks to the cleverly designed structure, one-handed operation and high performance, solder can be easily removed (sucked out) from single-sided or double-sided printed circuits. This desoldering station with a suction pump is used in the field of electronic research, teaching and production, especially in the repair of electronic devices and communication equipment.

Product parameters:

1) ZD-8917B control unit: This soldering station is automatically controlled by two microprocessors. Digital control electronics and a high-quality heat transfer system together with sensors in the tips. The sensors are included in the feedback of the electronics control circuits and ensure the highest degree of accuracy in setting and maintaining the temperature.

2) Soldering iron (ZD415T)

The ZD-415T soldering iron with a power of 48W (when heated up to 130W) has a wide selection of soldering tips and can be used anywhere in the field of electronics. High performance and slim design make this solder an ideal tool for fine soldering work. The heater is made of PTC and the soldering tip sensor can quickly and accurately control the soldering temperature. The tips are interchangeable (series N9) and it is possible to buy other tips of the types.

3) Desoldering iron (ZD-553T)

The handle of the ZD-533T desoldering iron with a power of 80W (when heated up to 130W) and can be used anywhere in the field of electronics. High performance and slim design make this solder an ideal tool for desoldering work. The heater is made of PTC and the desoldering tip sensor can quickly and accurately control the desoldering temperature. Supplied suction tips N5-1, N5-2, N5-3.


Technical parameters:

1) Service station ZD-8917B
- input voltage: 220 - 240V AC / 50Hz
- power consumption: up to 140W
- main fuse 3.15A
- vacuum pressure: 600mm Hg

2) Soldering iron (ZD415T)
- heating element supply voltage: 24V AC
- nominal power consumption 60W (when heating up to 130W)
- temperature: 160 ° C-480 ° C

3) Desoldering iron (ZD-553T)
- heating element supply voltage: 24V AC
- nominal power consumption 90W (when heating up to 130W)
- temperature: 160 ° C-480 ° C

Package contents :

- control unit ZD-8917B
- soldering iron (ZD415T)
- desoldering iron (ZD-553T)
- 3 pcs of suction tips with holes of diameters 0.8mm (type N5-2), 1.0mm (type N5-1), 1.3mm (type N5-3)
- 1 piece of soldering tip N9-x
- 3 pcs of wires for cleaning the suction tips
- 1 pc storage holder for solder handle
- 1 piece of storage holder for the handle of the extractor with cleaning metal wool
- spare air filters (1pc dia. 9mm + 3pcs dia.16,8mm)
- instructions for use

Parameters and specifications

Function: soldering, suction

Power consumption: 90 W

Min. temperature: 160 C

Max. temperature: 480 C
