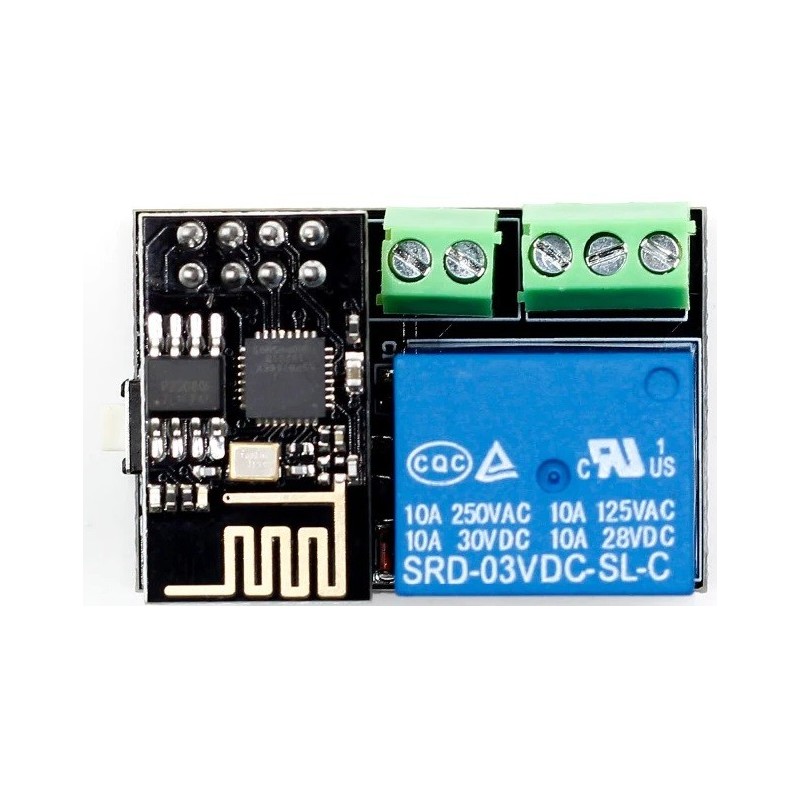

Shield Relé com ESP8266 ESP-01 (ESP-01 incluído)

: MRE04042
7,50 €
6,50 € Poupe 1,00 €
preço com IVA incluído

Com este pequeno relé poderá Ligar / Desligar qualquer equipamento elétrico através do seu smartphone.

Poderá encontrar a APP e outros programas aqui:
https://github.com/IOT-MCU/ESP-01S-Relay-v1.0

Manual:
ESP-01S Relay v1.0 Usage.pdf

Quantidade
Sem Stock


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

This intelligent relay module is designed based on ESP-01/01S WIFI module and can be used for DIY's own intelligent switch. It can provide APP and LUA source programs through remote control of mobile APP. Ready to use, simple and convenient.


Download Android APP, LUA source code and Manual:

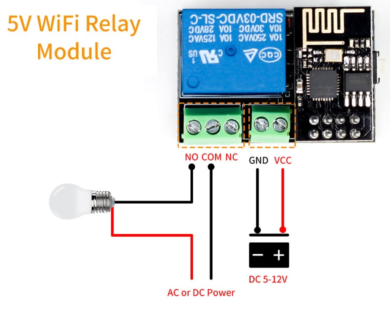

Wire Conections:


Connections



This WIFI relay based on AI-Thinker ESP-01S WIFI module. It is designed for smart home, Internet of thing and other DIY project. With this smart relay, you will easy to DIY your smart switch to control any device by your phone anywhere. We support the APP and LUA source code.
We had upload a demo code in the ESP0-01S, just supply a DC5V power, then you can control it.


Product parameters:

  • Product size: 37 * 25mm
  • Operating voltage: DC5V
  • Communication: WIFI (ESP8266 module)
  • Transmission distance: the maximum transmission distance of 400m (open environment, mobile phone equipped with WIFI module)
  • Load: 10A/250VAC 10A/30VDC, the relay pull 100,000 times


Package Included:

1 x ESP-01S / ESP8266 5V WiFi module
1 x Relay board ESP-01S / ESP8266
