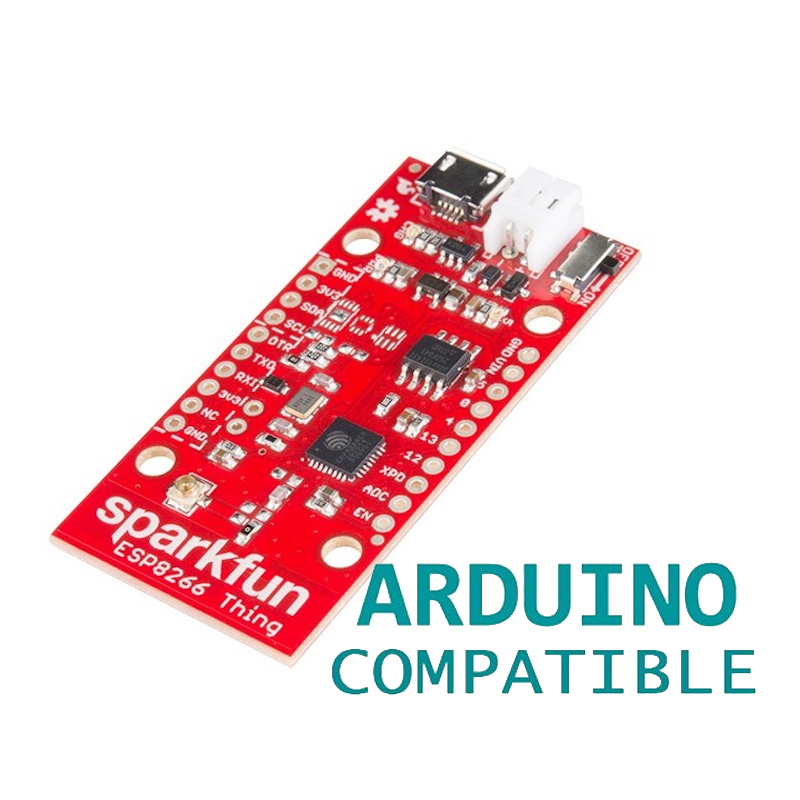

SparkFun ESP8266 Thing

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos

The Thing is low-cost and easy to use, and Arduino IDE integration is seamless.

This new development board breaks out all of the module’s pins – matching most I2C-based breakout boards – and comes equipped with a LiPo charger, power supply and all other supporting circuitry.
The Thing does everything from turning on an LED to posting data with phant.io, and can be programmed just like any microcontroller.

The ESP8266’s maximum voltage is 3.6V, so the Thing has an onboard 3.3V regulator to deliver a safe, consistent voltage to the IC. That means the ESP8266’s I/O pins also run at 3.3V, you’ll need to level shift any 5V signals running into the IC.

A 3.3V FTDI Basic is required to program the SparkFun ESP8266 Thing, but other serial converters with 3.3V I/O levels should work just fine as well. The converter does need a DTR line in addition to the RX and TX pins.

Features:

• All module pins broken out
• On-board LiPo charger/power supply
• 802.11 b/g/n
• Wi-Fi Direct (P2P), soft-AP
• Integrated TCP/IP protocol stack
• Integrated TR switch, balun, LNA, power amplifier and matching network
• Integrated PLLs, regulators, DCXO and power management units
• Integrated low power 32-bit CPU could be used as application processor
• +19.5dBm output power in 802.11b mode

Documents:

• Schematic
• Eagle Files
• Hookup Guide
• GitHub (Design Files)
