Product description: ESP32-C6-DevKitC-1-N8 - WiFi / Bluetooth / ZigBee / Thread - development board with ESP32-C6-WROOM-1 chip
The ESP32-C6-DevKitC-1-N8 development kit from Espressif is an advanced platform that allows you to create IoT projects quickly and efficiently. The ESP32-C6-WROOM-1 module, which is the heart of the set, integrates the latest communication technologies, ensuring versatility and high performance in wireless applications. With support for WiFi 6, Bluetooth 5.0 and IEEE 802.15.4 standards such as Zigbee and Thread , it offers unrivaled communication capabilities while maintaining low power consumption. It has 8 MB of Flash memory , 512 kB of SRAM memory (including 16 kB of RTC memory) and 320 kB of ROM memory. The ESP32-C6-DevKitC-1-N8 development board is equipped with 23 configurable GPIO pins that allow easy connection of various peripherals and sensors, and the integrated PCB antenna ensures reliable wireless communication. ESP32-C6-DevKitC-1-N8 can operate with a voltage of 3.3 V or 5 V, depending on the selected power source: via the USB Type-C port to UART (default), via 5V0 and GND or 3V3 and GND pin connectors.
Also check out the user guide prepared by the manufacturer!

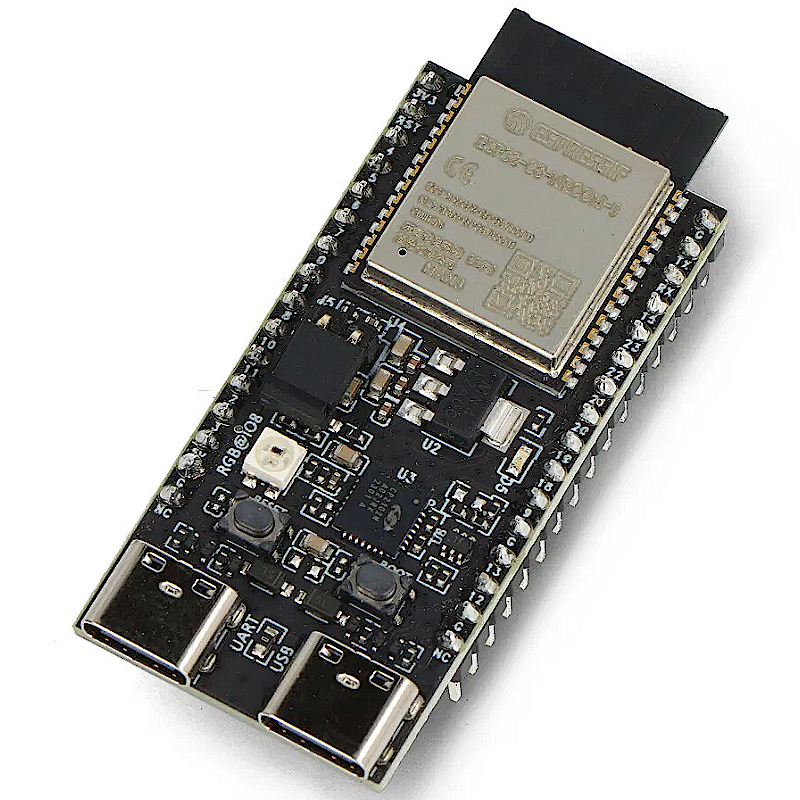

ESP32-C6-DevKitC-1-N8 - WiFi / Bluetooth / ZigBee / Thread - development board with the ESP32-C6-WROOM-1 system.
ESP32-C6-WROOM-1 supports the latest communication technologies.
Special features ESP32-C6-DevKitM-1-N4
-
Advanced wireless connectivity : Support for WiFi 6, Bluetooth 5.0 and IEEE 802.15.4 (Zigbee and Thread) provides comprehensive communication capabilities.
-
High performance : ESP32-C6-WROOM-1 offers the computing power and memory necessary to perform complex tasks.
-
Energy efficiency : Technologies such as Target Wake Time (TWT) in WiFi 6 allow for efficient energy management.
-
Wide operating temperature range : the ability to operate at temperatures from -40 to 85°C makes the set suitable for difficult environmental conditions.
-
Versatile interfaces : 23 configurable GPIO pins and a variety of interfaces (SPI, UART, I2C) enable easy integration with various peripherals.
-
Ease of use : The availability of development tools, documentation, and technical support makes it easier to get started and speeds up the application development process.
Applications of the development board
ESP32-C6-DevKitC-1-N8 is the ideal solution for a wide range of IoT applications such as:
-
Smart homes : home automation, security systems, energy management.
-
Industrial automation : process monitoring and control, SCADA systems.
-
Consumer electronics : audio equipment, computer accessories.
-
Energy management : measurement systems, energy management in buildings.
-
Health applications : health monitoring, medical devices.
The module can operate with a voltage of 3.3 V or 5 V.
Arrangement of elements on the board
-
ESP32-C6-WROOM-1
-
GPIO pinout
-
LDO power regulator from 5V to 3.3V
-
Power LED
-
USB-UART bridge
-
USB Type-C port
-
Boot button
-
Reset button
-
USB-UART port
-
Addressable RGB LED
-
J5 - enables measurement of the current consumed by the module
-
GPIO pinout
Key elements of the board.
Technical specifications of ESP32-C6-DevKitM-1-N4
-
Model: ESP32-C6-DevKitC-1-N8
-
Module: ESP32-C6-WROOM-1
-
Chip: ESP32-C6
-
Wireless communication: WiFi 6 2.4 GHz, Bluetooth 5.0, Thread, Zigbee, IEEE 802.15.4
-
Processor: 32-bit RISC-V single-core
-
Clock: up to 160 MHz
-
Flash memory: 8 MB
-
SRAM memory: 512 kB
-
LP SRAM: 16 kB
-
ROM memory: 320 kB
-
Antenna type: PCB
-
GPIO: 23 configurable pins
-
Operating temperature: -40 to 85°C
-
Voltage: 2.7V to 3.6V
-
Dimensions: 51.8 x 25.4 mm
