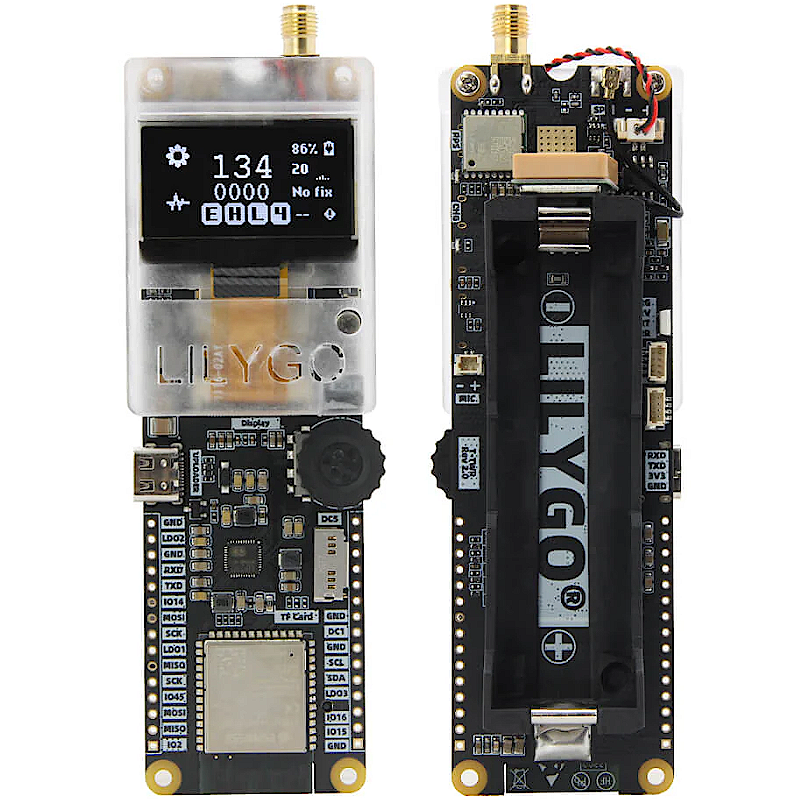

T-TWR Plus: ESP32-S3 com Radio SA868 UHF 400-480Mhz GNSS L76K 1.3 inch OLED, Suporte Bat. 21700 - LILYGO® H632

:PCO05165
78,80 €
preço com IVA incluído

T-TWR Plus é a placa de desenvolvimento definitiva para os ambiciosos entusiastas da tecnologia. Esta placa pode alcançar a funcionalidade Walkie-Talkie com Wi-Fi integrado, Bluetooth e um transceptor sem fios SA868.
Inclui também um ecrã OLED e GPS para um rastreamento de localização preciso. Liberte o potencial do T-TWR Plus e torne os seus sonhos tecnológicos realidade.

Pode encontrar a bateria para este módulo aqui: BAT03019

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.



More info and updated documentation on LilyGo product page (UHF 400-480Mhz [H632])



Specifications

MCU ESP32-S3-WROOM-1-N16R8
Flash 16MB
PSRAM 8MB
Wireless protocol Wi-Fi & Bluetooth 5 (LE)
Onboard functions 4 Buttons (PPT+Boot + PWR + Reset),
PMU AXP2102, TF Card function, WS2812 RGB LED

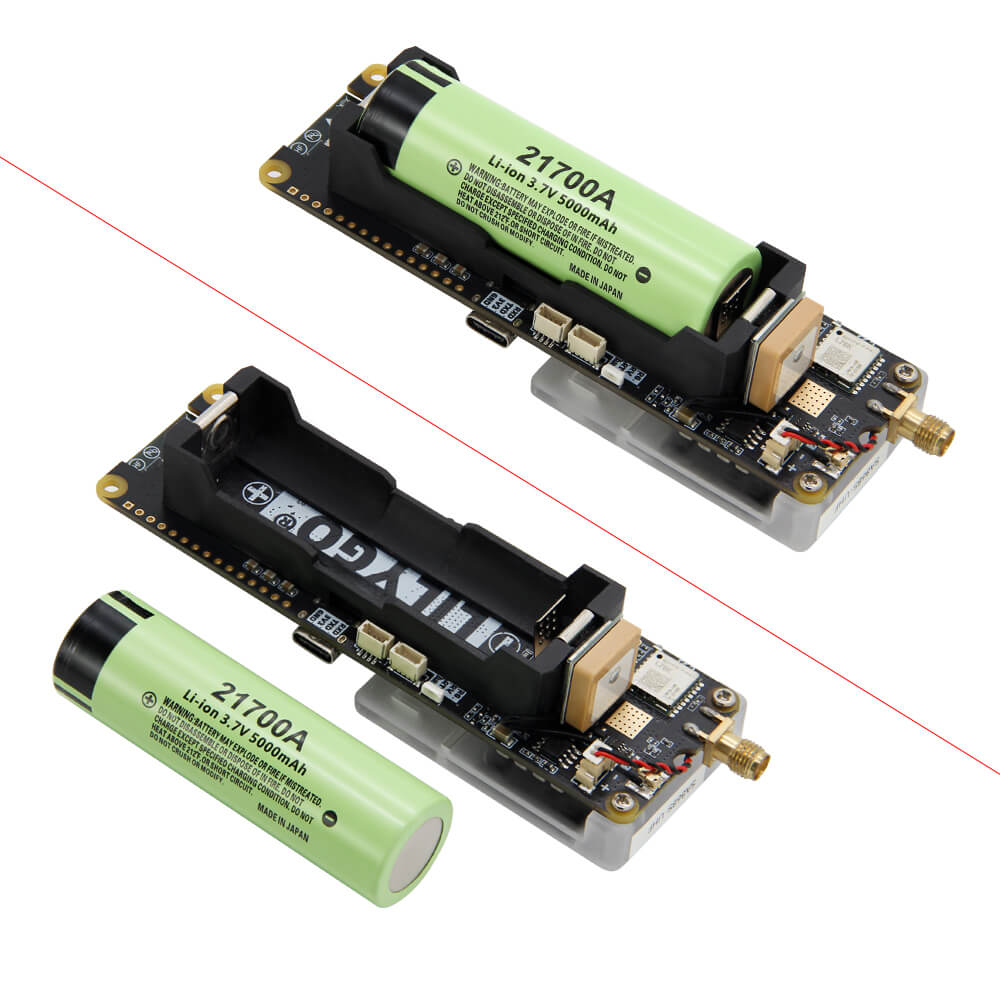

Supply Mode USB / 21700 battery / 18650 battery + spring
L76K GNSS Module Support GPS, BDS, GLONASS
Built-in LNA, SAW Filter, Support AGNSS and 1PPS
 1.3 inch SH1106 OLED
Resolution 128x 64
I2C Interface SDA--IO08 SCL--IO09
Display Color  2





Sample Code For Reference [Github]

If you need technical support please check the below link to find more details

  1. T-TWR Plus (LILYGO)





Other Support

  1. SoftRF Ham Edition
  2. OpenRTX for T-TWR Plus
  3. ESP32APRS
  4. ArcticTracker

Size

Pin Diagram

More

UHF 400-480MHz

  • 1 X T-TWR Plus UHF
  • 1 X U band antenna: 400-480MHz
  • 2 X (1 * 15pin 2.54mm)
  • 1 X 4pin 2.54 Dupont cable 1.0mm connector
  • 1 X Spring
PCO05165
