- Novo
![](https://www.botnroll.com/21039-medium_default/t-panel-esp32-s3-esp32-h2-w-lcd-4inch-version-rs485-lilygo-h701.jpg)

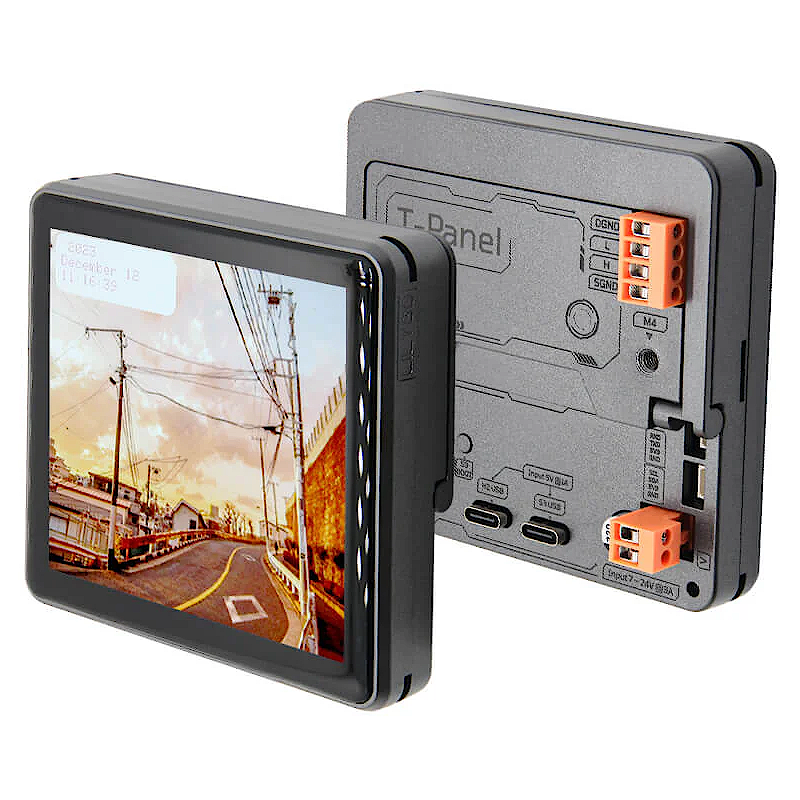

O LILYGO T-Panel é um ecrã HMI de 4 polegadas e um gateway IoT baseado no módulo ESP32-H2 com Bluetooth LE 5 e um rádio 802.15.4 para conectividade Zigbee, Thread e Matter.
DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos.
*Atenção: as imagens são meramente ilustrativas.
More info and updated documentation on LilyGo product page (T-Panel S3 [H719])
MCU2 | ESP32-H2 |
Flash | 4MB |
Wireless Connectivity | IEEE 802.15.4 + Bluetooth 5 (LE) |
Development | Arduino, PlatformIO-IDE, Micropython |
4.00" 480*480 IPS ST7701S LCD: |
Visible pixels | 480(W) 480(H) |
Interface | SPI+RGB |
Compatibility library | Arduino_ GFX, LVGL |
Onboard functions |
QWiiCx2 + TF Card + Antenna ESP32 4 X Button= S3(Boot + RST) + H2(Boot + RST) |
RS485 / CAN FD Transceiver Module(Optional) |
Using bus communication protocol | UART |
XL9535 Input/Output (GPIO) Expansion Chip 16-bit I2C-bus and SMBus I/O port Expander |
If you need technical support please check the below link to find more details.
Size
RS485 500kbp
Pin Diagram
More Details
RS485 500kbp
