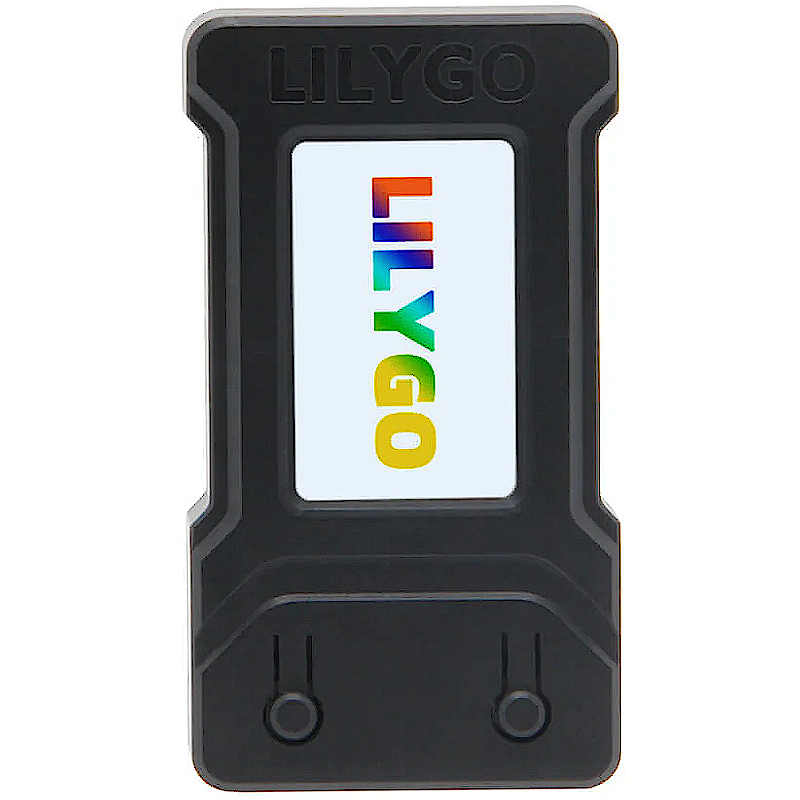

T-DISPLAY TTGO ESP32 16MB (headers não soldados) c/ Display 1.14 USB-C c/ Caixa incluída - LILYGO® K164

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

More info and updated documentation on LilyGo product page (T-Display [K164])

Specifications

Description

For 1.14 inch ST7789V IPS LCD

• Resolution: 135 x 240
• High Density 260 PPI
• 4-Wire SPI interface
• Working Power Supply: 3.3V
• 1.14" diagonal
• Full-color TFT Display
• Drive: ST7789


1. Appearance

2. Size

3. Pin diagram

T-Display CH9102F Chip [4MB/ 16MB ]Options

• 1 X TTGO T-Display
• 1 X Power Cable
• 2 X Pin

Technology Support

You can also get more technical support on GitHub

Quick start

1. Copy TFT_eSPI to the <C:\Users\Your User Name\Documents\Arduino\libraries> directory
2. Open Arduino IDE, find TFT_eSPI in the file, and for example, the T-Display factory test program is located at TFT_eSPI -> FactoryTest, you can also use other sample programs provided by TFT_eSPI 3 In the Arduino IDE tool options, select the development board ESP32 Dev Module, select Disable in the PSRAM option, select 4MB in the Flash Size option, Other keep the default
3. Select the corresponding serial port. If you are not sure, please remove all the serial ports, leaving the board in the USB connection state, just select that one
4. Finally, click upload, the right arrow next to the tick

SD card connection

Demonstrate how to use the second SPI device, using the SD card as a demonstration device
