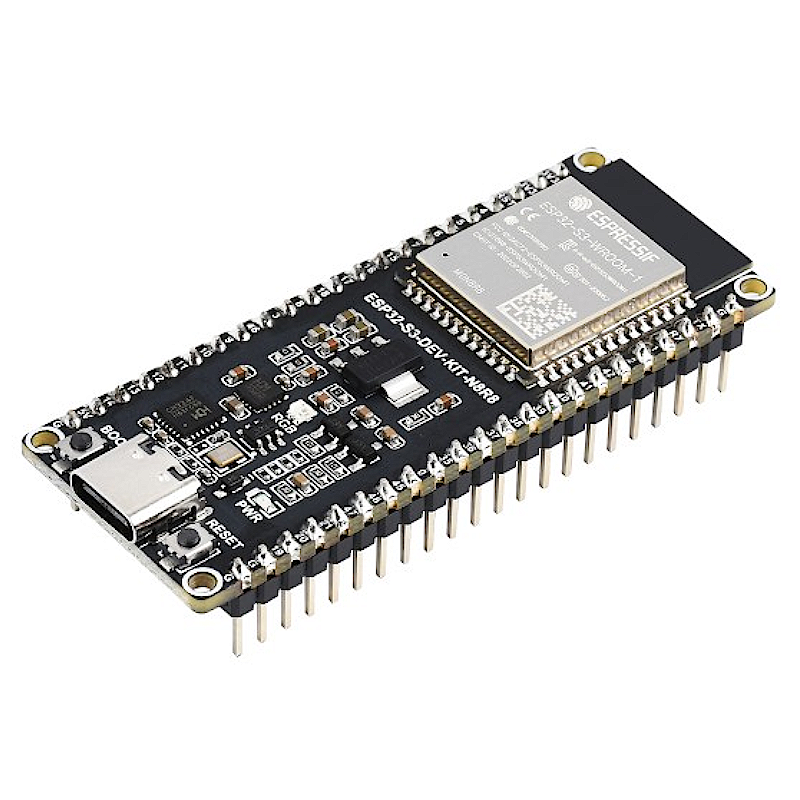

ESP32-S3 - Placa da Waveshare com ESP32-S3-WROOM-1-N8R8 240MHz Dual Core, USB-C - Waveshare 24243

: PCO05149
11,90 €
preço com IVA incluído

Este ESP32-S3-DEV-KIT-N8R8 é uma placa de desenvolvimento compacta com várias interfaces.
Em termos de hardware, o módulo ESP32-S3-WROOM-1-N8R8 está equipado com um processador dual-core Xtensa 32-bit LX7 com uma frequência principal até 240MHz, 512KB SRAM (TCM) e 8MB PSRAM, e uma porta serie CH343 e CH334 USB HUB dual chip integrado na placa, permitindo assim o uso e desenvolvimento simultâneo de USB e UART através de uma interface USB-C.

Se quiseres saber mais sobre este produto, consulta a sua Wiki Page.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.







Board specifications

The ESP32-S3-DEV-KIT-N8R8 is a compact-size microcontroller development board with multiple digital interfaces.

Adopts ESP32-S3-WROOM-1-N8R8 module, which is equipped with a dual-core Xtensa 32-bit LX7 processor with 240MHz running frequency, built-in 512 KB SRAM (TCM) and 8MB PSRAM; Onboard CH343 and CH334 chips for USB and UART development via USB-C port. Compatible with the pinout of ESP32-S3-DevKitC-1 development board, more convenient to use and expand a variety of peripheral modules.

You can choose ESP-IDF, Arduino, MicroPython, or other development environments in software so that you can easily and quickly get started and apply it to the product.

Key features include:

  1. Adopts ESP32-S3-WROOM-1-N8R8 module with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz

  2. Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM, 8MB Flash memory

  3. Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.

  4. Type-C connector, easier to use

  5. Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface

  6. Rich peripheral interfaces, compatible with the pinout of ESP32-S3-DevKitC-1 development board, offers strong compatibility and expandability

  7. Castellated module allows soldering directly to carrier boards

  8. Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios



Supports ESP-IDF, Arduino, MicroPython

Comprehensive SDK, dev resources, and tutorials to help you easily get started


ESP32-S3 Designed for AIoT applications

Powered by Xtensa 32-bit LX7 dual-core processor with frequency up to 240 MHz
Powerful AI Computing Capability & Reliable security features



WIFI and BLE 5 support

ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 b/g/n) with 40 MHz of bandwidth support
Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh




Function Block Diagram




Pinout Definition

Compatible with the pinout of ESP32-S3-DevKitC-1 development board




Onboard Resources




Outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/ESP32-S3-DEV-KIT-N8R8



Package Content

Weight: 0.013 kg

  1. ESP32-S3-DEV-KIT-N8R8 with pre-soldered header x1
ESP32-S3-DEV-KIT-N8R8-M
