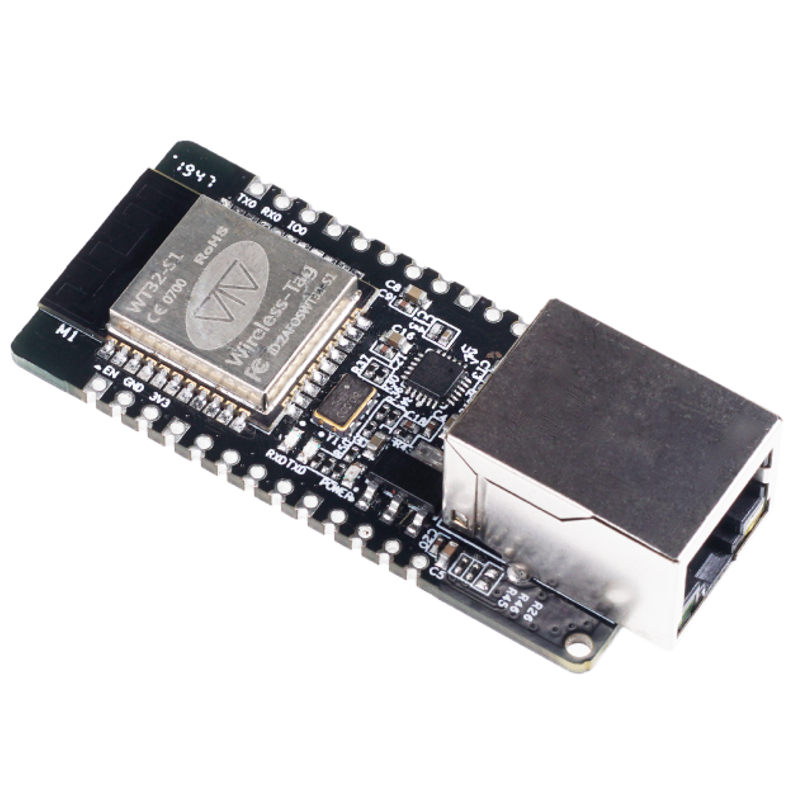

ESP32 c/ porta RJ45 - Conversor serie para Ethernet - WT32-ETH01

: PCO05098
22,50 €
preço com IVA incluído

WT32-ETH01 é um módulo serie para Ethernet baseado no microcontrolador ESP32 WT32-S1 . O módulo integra o protocolo TCP/IP, o que torna mais fácil aos utilizadores trabalhar com o mesmo e reduz o tempo de desenvolvimento. A série ESP32 de ICs são SOCs que integram Wi-Fi de 2,4 GHz e Bluetooth de modo duplo, com desempenho de radiofrequência ultrarrápido, estabilidade, versatilidade, confiabilidade e consumo de energia ultrabaixo.

Quantidade
Sem Stock


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

PRODUCT DETAILS

Features

  • Support complete TCP/IP protocol stack
  • Rich wireless communication interface
  • Multiple working modes using through holes and half-pads

Description

WT32-ETH01 is an embedded serial to Ethernet module based on the ESP32 series WT32-S1 MCU. The module integrates an optimized TCP/IP protocol stack, which is convenient for users to easily complete the networking functions of embedded devices while reducing development time cost. In addition, the module is compatible with half-pad and through-hole connectors. The board width is a universal width and therefore, it can be directly soldered to boards, connectors, or even breadboards, which is convenient for users to use in different scenarios.

The ESP32 series of ICs are SOCs that integrate 2.4GHz Wi-Fi and Bluetooth dual-mode, with ultra-high radio frequency performance, stability, versatility, reliability, and ultra-low power consumption.

Specifications

SpecificationItemsDetails
Wi-Fi RF Certifications FCC/CE/RoHS
Protocols 802.11 b/g/n/e/i（802.11n，Up to 150 Mbps）
A-MPDU and A-MSDU aggregation, 0.4_ s guard interval support
Frequency range 2.4~2.5 GHz
Bluetooth Protocols Bluetooth v4.2 BR/EDR and BLE standards
Radio NZIF receiver with -97 dBm sensitivity
Hardware Network port specifications RJ45, 10/100Mbps, Cross-direct connection adaptive
Serial baud rate 80~5000000
On-board flash 32Mbit
Operating voltage 5V or 3.3V
Operating current Average: 80mA
Supply current Minimum: 500 mA
Operating temperature -40°C~+85°C
Ambient temperature Normal temperature
Packaging Half pad/ Through-hole connector( Optional）
Software Wi-Fi mode Station/softAP/SoftAP+station/P2P
Wi-Fi security mechanisms WPA/WPA2/WPA2-Enterprise/WPS
Encryption types AES/RSA/ECC/SHA
Firmware update Remote OTA upgrade via network
Software development SDK used for further development
Networking protocol IPv4、TCP/UDP
IP access methods Static IP、DHCP（Default）
Transparent transmission modes TCP Server/TCP Client/UDP Server/UDP Client
User configurations AT+ commands set

Pinout Diagram



Part List

1 x Serial to Ethernet Module based on ESP32 series - WT32-ETH01

ECCN/HTS

HSCODE 8517709000
UPC
PCO05098
