T-Beam Meshtastic ESP32, LoRa SX1276 868mhz, GPS NEO-6M, Suporte Bateria 18650, (c/ oled 0.96 não soldado) - LILYGO® Q401
O que é Meshtastic?
Meshtastic é um projecto que visa fomentar o uso de sistemas GPS de baixo custo com foco no baixo consumo e que permite desenvolver dispositivos de monitorização para escalada, esqui, parapente, entre muito outros desportos e aplicações.
Guia para iniciantes
Recomendamos o seguinte site onde poderá encontrar toda a informação em como usar este módulo:
meshtastic.letstalkthis.com.
Este módulo tem suporte para uma bateria 18650 (vendida em separado aqui)
DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos.
*Atenção: as imagens são meramente ilustrativas.
More info and updated documentation on LilyGo product page (868MHz Non-Soldered OLED [Q401+L206]):
Note: OLED is not soldered to T-BEAM so if you need you can use T-Beam Shield directly
Meshtastic T-Beam ESP32 LoRa 433/868/915/923Mhz SX1276/SX1278 Wireless Module WiFi GPS NEO-6M With 0.96 inch OLED Display For Arduino.
Battery Size Reference
Specifications
MCU | ESP32 |
Flash | 4MB |
PSRAM | 8MB |
Serial Chip | CH9102 |
Wireless protocol | Wi-Fi + Bluetooth 4.2 |
PMU | AXP2101 |
Onboard functions | 3 Buttons (Power+IO38+Reset) |
Antenna |
|
Description
GPS
- NE0-6M GPS Modules: Support GPS protocol
- Onboard RTC crystal, Support interrupt/ wakeup
LoRa
- Long Range Low Power LoRa Transceiver
- High sensitivity: -i48dBm
- Transceive rate: 300 kbps
- Optional Hardware
- Version: SX1278[433Mhz] / SX1276[868/915/923Mhz]
Display Details
- OLED: 0.96 inch
- Driver: SSD1306
Software
- Meshtastic
Power Supply Mode
Support USB Micro/ 18650 battery holder [USB can power the battery]
1. Appearance
2. Size
3. Pin Diagram
[Pay attention to the OLED when opening the box, ship without 18650 battery]
433Mhz or 868Mhz Options
(OLED Not Soldered Version)
-

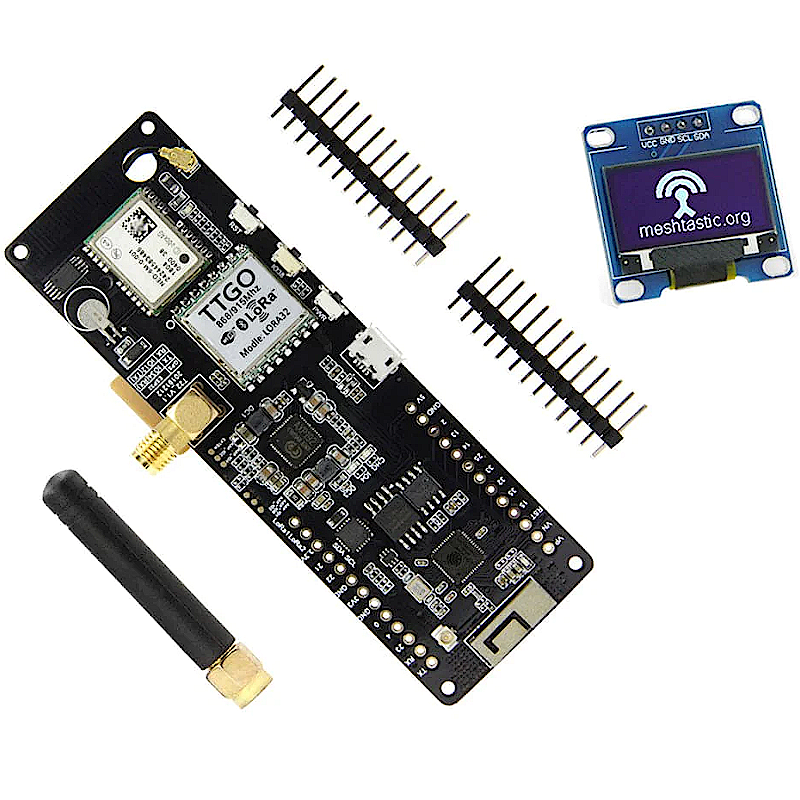

1 X T-Beam V1.1 CH9102
-
1 X 433Mhz or 868Mhz Antenna
-
1 X 0.96 inch 128X64 OLED
-
2 X Pin
Technology Support [Github]
If you need technical support please check the link to find more details.
