LILYGO® LoRa V1.0 ESP32 SX1278 433Mhz com display OLED 0.96" e Cabo para Bateria

Referência : PCO05075

23,85 €

preço com IVA incluído

Pequeno e potente!

Este produto usa o chip SX1278 para as comunicações LoRa e um ESP32 como Processador Principal. De base o processador ESP32 disponibiliza WiFi e Bluetooth.

Dispõe ainda de um muito útil display onde poderá apresentar informação relativa a sensores (não incluídos) que possa adicionar ao seu projecto, bem como dados recebidos através da rede ou até fazer debug do seu código.

Notas: Fornecido com headers não soldados e cabo para a bateria. Não incluí bateria. Poderá encontra uma bateria aqui (Não se esqueça de validar a polaridade antes de ligar a bateria!)

Descrição

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

The 433MHz antenna must be used in conjunction with the IPEX interface (if the antenna is not connected, it may damage the LoRa chip)

Lithium battery charging and discharging circuit, when the battery is full, the blue LED will stop working. When using, pay attention to the positive and negative of the battery, otherwise it will be damaged.

Note:This product does not include the battery.
Using the IO port touch screen touch signal input, you need to add the 100nF pull-down capacitor at this pin!

Package included:

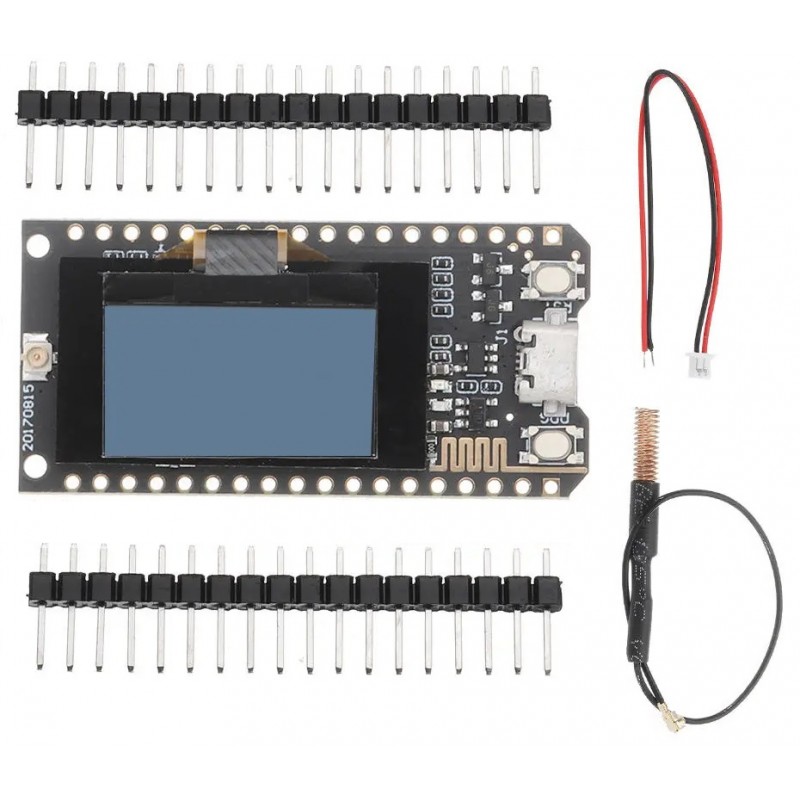

1 x ESP32 OLED
1 x Line
2 x pin
1 x 433m Spring Antenna

Example:

This product is a SX1278 chip based on ESP32 WIFI increased, OLED, namely LoRa remote modem, 433MHz frequency, high sensitivity is about -148dBm, +20dBm output power, high reliability, long transmission distance.
The onboard 16 Mt bytes (128 Mt bit), Wi-Fi antenna, 0.96 inch blue OLED display, lithium battery charging circuit, CP2102 interface and USB serial chip, the perfect support for development environment, can be used for program verification and product development is very simple and fast.

```
Operating voltage: 3.3V to 7V
```

Operating temperature range: -40 degrees C to +90 degrees C

Support for Sniffer, Station, softAP, and Wi-Fi Direct modes

Data rates: 150 Mbps@11n HT40, 72 Mbps@11n HT20, 54 Mbps@11g, 11 Mbps@11b

Transmit power: 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n

```
Receiver sensitivity up to -98 dBm
```
```
UDP sustained throughput of 135 Mbps
```

Pin reference description:

2Pcs TTGO 433Mhz LORA SX1278 ESP32 0.96 OLED Display Module LILYGO for Arduino - products that work with official Arduino boards

For more product information, click https://drive.google.com/file/d/1L8ll-DeAC2SATBZn0-KbSaZsrinbnXkF/view

Test details:

2Pcs TTGO 433Mhz LORA SX1278 ESP32 0.96 OLED Display Module LILYGO for Arduino - products that work with official Arduino boards

Click links for more details: https://eyun.baidu.com/s/3hsiTNgg

Example Code (1) LoRaSender

#include
#include
#include
// GPIO5  -- SX1278's SCK
// GPIO19 -- SX1278's MISO
// GPIO27 -- SX1278's MOSI
// GPIO18 -- SX1278's CS
// GPIO14 -- SX1278's RESET
// GPIO26 -- SX1278's IRQ(Interrupt Request)

#define SS      18
#define RST     14
#define DI0     26
#define BAND    433E6
int counter = 0;

void setup() {
  pinMode(25,OUTPUT); //Send success, LED will bright 1 second

  Serial.begin(115200);
  while (!Serial); //If just the the basic function, must connect to a computer

  SPI.begin(5,19,27,18);
  LoRa.setPins(SS,RST,DI0);
//  Serial.println("LoRa Sender");

  if (!LoRa.begin(BAND)) {
    Serial.println("Starting LoRa failed!");
    while (1);
  }
  Serial.println("LoRa Initial OK!");
}

void loop() {
  Serial.print("Sending packet: ");
  Serial.println(counter);

  // send packet
  LoRa.beginPacket();
  LoRa.print("hello ");
  LoRa.print(counter);
  LoRa.endPacket();

  counter++;
  digitalWrite(25, HIGH);   // turn the LED on (HIGH is the voltage level)
  delay(1000);                       // wait for a second
  digitalWrite(25, LOW);    // turn the LED off by making the voltage LOW
  delay(1000);                       // wait for a second

  delay(3000);
}

Example Code (1) LoRaReceiver

#include
#include
// GPIO5  -- SX1278's SCK
// GPIO19 -- SX1278's MISO
// GPIO27 -- SX1278's MOSI
// GPIO18 -- SX1278's CS
// GPIO14 -- SX1278's RESET
// GPIO26 -- SX1278's IRQ(Interrupt Request)

#define SS      18
#define RST     14
#define DI0     26
#define BAND    433E6

void setup() {
  Serial.begin(115200);
  while (!Serial); //if just the the basic function, must connect to a computer
  delay(1000);

  Serial.println("LoRa Receiver");

  SPI.begin(5,19,27,18);
  LoRa.setPins(SS,RST,DI0);

  if (!LoRa.begin(BAND)) {
    Serial.println("Starting LoRa failed!");
    while (1);
  }
}

void loop() {
  // try to parse packet
  int packetSize = LoRa.parsePacket();
  if (packetSize) {
// received a packet
    Serial.print("Received packet '");

    // read packet
    while (LoRa.available()) {
      Serial.print((char)LoRa.read());
    }

    // print RSSI of packet
    Serial.print("' with RSSI ");
    Serial.println(LoRa.packetRssi());
  }
}

Example Code (2) LoRaReceiverCallback

#include
#include
// GPIO5  -- SX1278's SCK
// GPIO19 -- SX1278's MISO
// GPIO27 -- SX1278's MOSI
// GPIO18 -- SX1278's CS
// GPIO14 -- SX1278's RESET
// GPIO26 -- SX1278's IRQ(Interrupt Request)

#define SS      18
#define RST     14
#define DI0     26
#define BAND    433E6

void setup() {
  Serial.begin(115200);
  while (!Serial); //if just the the basic function, must connect to a computer

  SPI.begin(5,19,27,18);
  LoRa.setPins(SS,RST,DI0);

  Serial.println("LoRa Receiver Callback");

  if (!LoRa.begin(BAND)) {
    Serial.println("Starting LoRa failed!");
    while (1);
 }

  // register the receive callback
  LoRa.onReceive(onReceive);

  // put the radio into receive mode
  LoRa.receive();
}

void loop() {
  // do nothing
}

void onReceive(int packetSize) {
  // received a packet
  Serial.print("Received packet '");

  // read packet
  for (int i = 0; i < packetSize; i++) {
    Serial.print((char)LoRa.read());
  }

  // print RSSI of packet
  Serial.print("' with RSSI ");
  Serial.println(LoRa.packetRssi());
}
}
