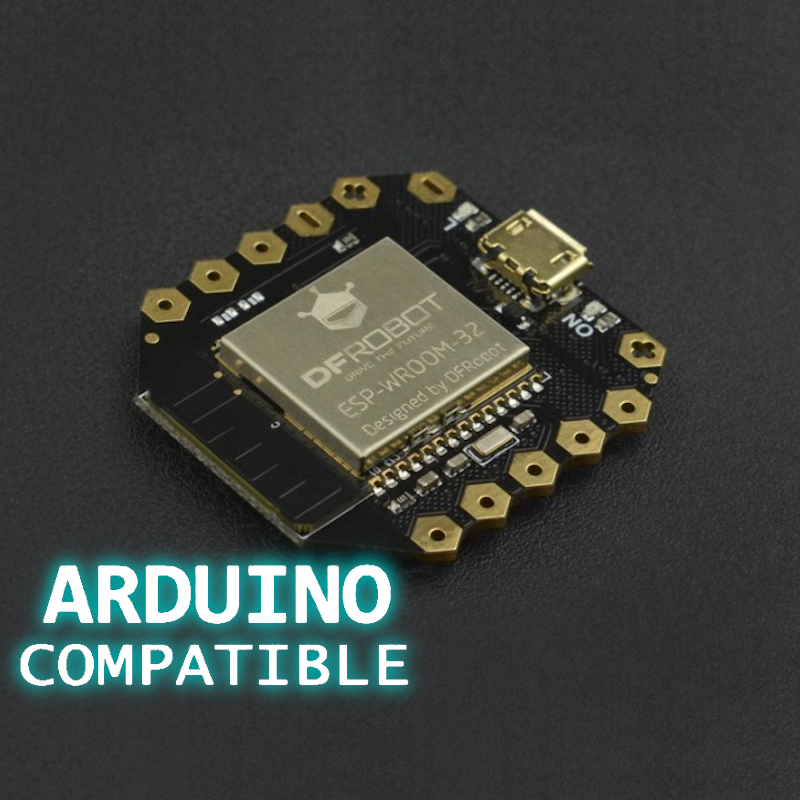

Beetle ESP32 WiFi Bluetooth Microcontroller

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

INTRODUCTION

Is FireBeetle-ESP32 too big for your projects? Why not try our newly launched Beetle-ESP32. This Beetle-ESP32 Microcontroller of 1.38”×1.34”small size is a simplified version of FireBeetle-ESP32 and specially designed for electronic engineering fans and DIY lovers. It is equipped with 4 analog ports, 4 digital ports, UART and I2C interfaces, which would be a perfect replacement of FireBeetle-ESP32.

FEATURES

• A small size of 35mm×34mm
• Enable users to directly download and debug programs through Micro USB, free from programmer.
• Large-scale I/O ports with gold plating, easy to screw wire on it or to sew the board on the clothes with wires, no need to solder.
• A group of gold plating power interfaces of honeycomb type, convenient to use.
• Integrate WIFI and Bluetooth

SPECIFICATION

• USB Supply Voltage: 5.0V
• VIN Supply Voltage: DC 3.5-6.5V
• Processor: Tensilica LX6 dual-core processor (One for high speed connection; one for independent programing)
• Frequency: 240MHz
• SRAM: 520KB
• Flash: 16Mbit
• Wi-Fi Standard: FCC/CE/TELEC/KCC
• Wi-Fi Protocol: 802.11 b/g/n/d/e/i/k/r（802.11n, high speed can reach to 150 Mbps),  converge A-MPDU and A-MSDU, supporting 0.4us protecting interval.
• Frequency Range: 2.4~2.5GHz
• Bluetooth Protocol: comply with BR/EDR/BLE standard of Bluetooth v4.2.
• On-chip Clock: 40MHz crystal and 32.768 KHz crystal
• Digital Interface: D2, D3, D4, D7
• Analog Interface: A0, A1, A2, A3
• I2C: 1
• Serial Port: 1
• Dimension: 35×34mm/1.38×1.34"

DOCUMENTS

• Product wiki

SHIPPING LIST

• Beetle ESP32 Microcontroller               x1
