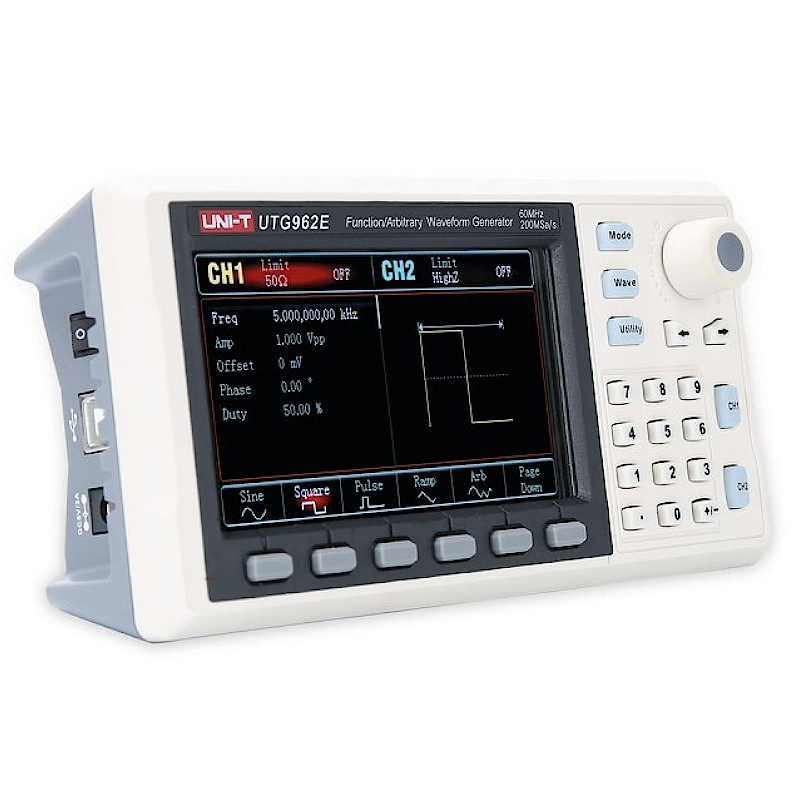

Gerador de Funções 60MHz 2 canais - UNI-T UTG962E

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description

The UTG932E Function (Arbitrary Waveform) Generator of the UTG900E series is a two-channel generator using direct digital synthesis technology to produce an accurate and stable arbitrary waveform signal with 1μHz resolution and low distortion. Modulation of signals with various modulations such as AM, PM, FM, FSK, etc. from internal or external source, linear and logarithmic frequency sweep is available.

The generator has a miniature size - fits in the palm of your hand, is high-performance, with excellent technical parameters, and at the same time is cost-effective.

The generator panel is ergonomically designed for easy operation. The graphic LCD TFT display with a diagonal of 4.3 inches allows you to work much more efficiently and quickly.

The use of the generator is envisaged in the teaching, design, testing, troubleshooting and repair of electronic and electroacoustic devices; testing of semiconductor components, etc.

It has a USB interface and powerful software for transferring data to a computer. It has an excellent price/performance ratio and a number of functions.

Product parameters :

1. two-channel generator with DDS digital signal synthesis

2. generation of sine signals with a frequency of 1μHz to 60MHz

3. generating rectangular signals with a frequency of 1μHz to 20MHz

4. generation of various other waveforms (sine, square, triangle, pulse, noise, DC, any)

5. types of modulation of AM, FM, PM, FSK signals from internal and external sources

6. support for the output of frequency-swept signals

7. supports internal / external / manual trigger triggering

8. 6-bit high-precision measurement of the frequency of external TTL compatible signals in the range of 100mHz to 100MHz

9. output signal amplitude up to 10Vpp at 50Ω impedance or up to 20Vpp in high impedance mode

10. sampling frequency 200MSa/s and 14-bit vertical resolution

11. storage of random waves with a length of up to 4 kpts points

12. 24 types of waveforms independent of the power supply are saved from the factory

13. USB interface with powerful PC software

14. multifunction knob and numeric keypad for easy operation

15. system help

16. TFT LCD color display with a diagonal of 109 mm (4.3 inches), 480 x 272 pixels

Technical parameters :

1. Output channels: 2

2. Sampling frequency: 200MSa/s

3. Output frequency: up to 60MHz

4. Frequency resolution: 1μHz

5. Vertical resolution: 14 bits

6. Memory depth: 8 kpts

7. Types and frequencies of generated signals:

8. Sinusoidal: from 1μHz to 60MHz

9. Rectangular: from 1μHz to 20MHz

10. Ramp (saw): from 1μHz to 400kHz

11. Pulse: from 1μHz to 20MHz

12. Any: from 1μHz to 10MHz

13. White Gaussian noise: 60MHz

14. DC signal offset (peak AC+DC): ± 5V (50 Ω), ± 10V (high resistance)

15. Minimum signal rise/fall time: typically < 20ns

16. Amplitude range for signals ≤ 10MHz: 1mVpp to 10Vpp; (50Ω)

17. amplitude range for signals ≤ 60MHz: 1mVpp to 5Vpp; (50Ω)

18. modulation types: AM, FM, PM, FSK, Sweep

19. output impedance impedance: adjustable from 1Ω to 1kΩ, or High Z

20. factory impedance setting: High Z

21. output short circuit protection: yes

22. total harmony. distortion (for DC to 20kHz, 1Vpp, typical): <0.2%

23. accuracy within 90 days: ±50 ppm (18℃ to 28℃)

24. accuracy up to 1 year: ±100 ppm (18℃ to 28℃

25. display: color TFT LCD with a diagonal of 4.3", 480 x 272 pixels

26. USB Device interface: yes

27. power supply: DC 5V, 2A

28. consumption: max. 10W

29. cooling: natural

30. ambient working temperature: 0°C to +40°C

31. ambient working humidity: < +35℃: ≤ 90%RH, +35℃ to +40℃: ≤ 60%RH

32. working altitude: max. 2000m

33. weight (net): 0.33kg

34. weight (gross): 0.77 kg

35. dimensions: 172 x 90 x 68mm

Contents of individual packaging :

1. - function generator UTG962E: 1pc

2. - power adapter AC/100 to 240V//DC/5V/2A: 1pc

3. - USB interface cable (UT-D14): 1pc

4. - BNC-crocodile cable (UT-L02): 1pc

5. - cable BNC-BNC 1m (UT-L45): 1pc

6. - user manual: 1pc

Documents:

1. English Manual

2. Datasheet
