Fita LEDs RGB Endereçável 5V, WS2812B, 30 LED/m, Fundo Preto IP67 (Neopixel) - 5 metros

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

• Input Voltage: DC5V
• Power: 18Watt/meter
• LED Resource: WS2812B Led(5050 SMD RGB LED With Built-in Improved Version Of WS2811 IC)
• LED: Each Led is Separately Controlled
• IC Type: Improved Version WS2812 IC(Built Inside The 5050SMD RGB LED)
• Pixels: 30/Meters
• Grey Scale: 256
• Bits/Color: 8-Bits/Color
• FPC Width: 10mm
• FPC color: Black

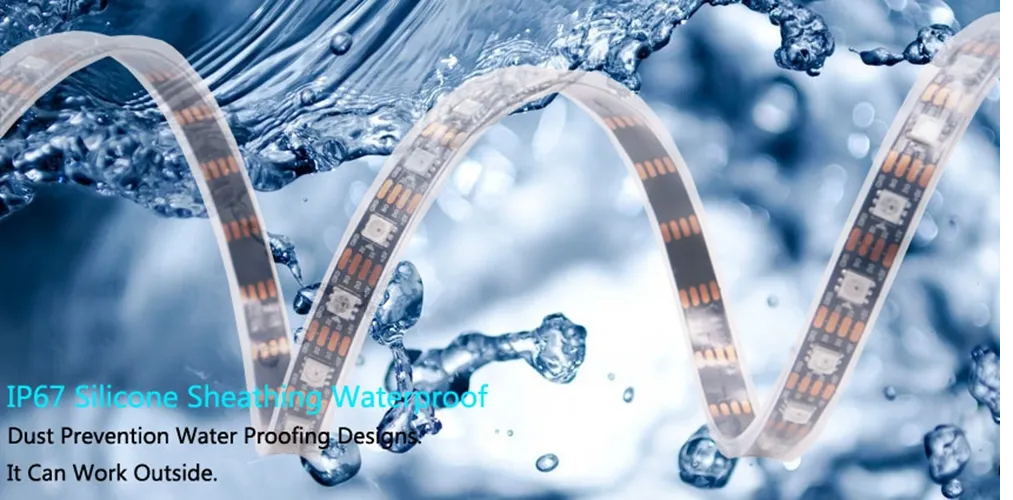

• Protection Rate: IP67
• Colors: Full Color RGB, Dream Color Changing

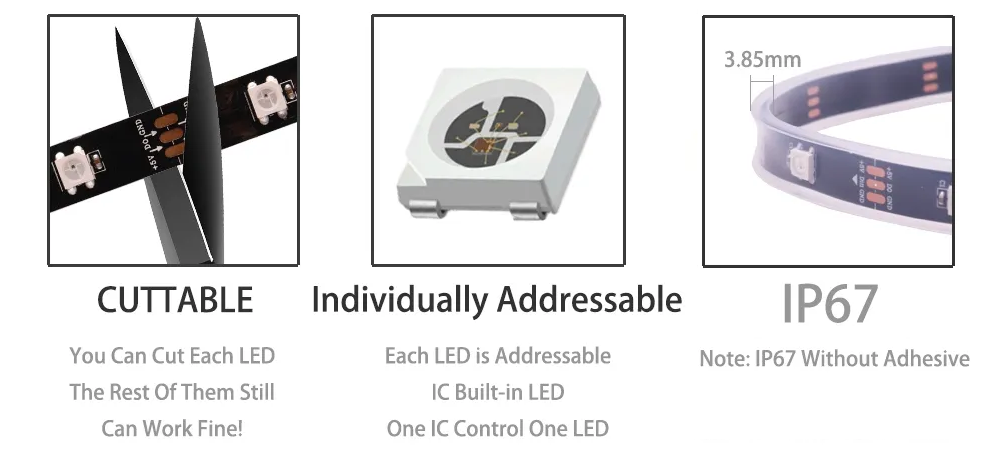

• Cuttable: Every LED is Cuttable
• Reel: 5 meters

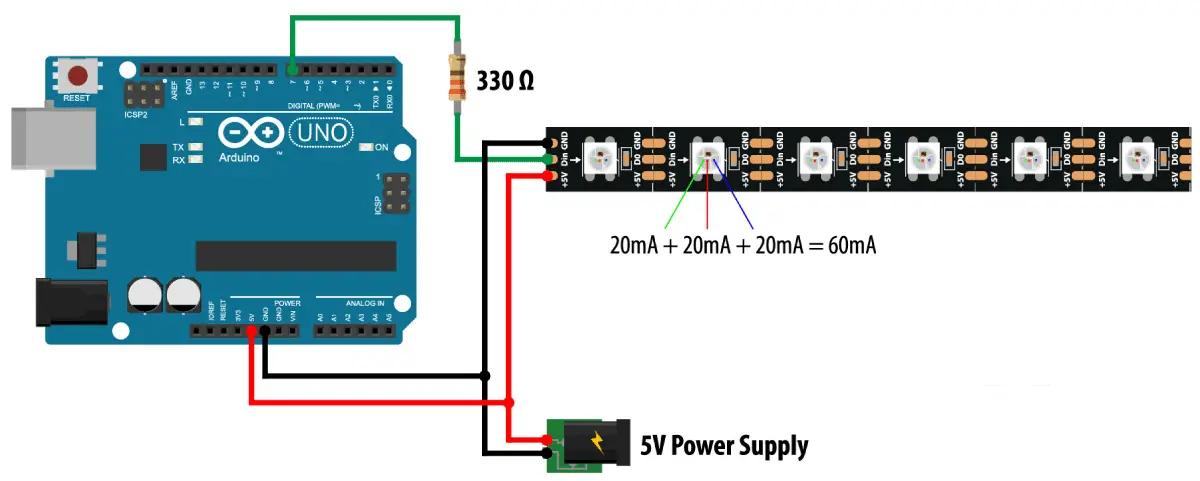

Arduino

For programming the Arduino, we will use the FastLED library.

This is an excellent and well documented library which enables easy control of the WS2812B LEDs.

Sample Code

#include <FastLED.h>
#define LED_PIN     7
#define NUM_LEDS    20

CRGB leds[NUM_LEDS];

void setup() {

  FastLED.addLeds<WS2812, LED_PIN, GRB>(leds, NUM_LEDS);
}

void loop() {
  leds[0] = CRGB(255, 0, 0);
  FastLED.show();
  delay(500);
  leds[1] = CRGB(0, 255, 0);
  FastLED.show();
  delay(500);
  leds[2] = CRGB(0, 0, 255);
  FastLED.show();
  delay(500);
  leds[5] = CRGB(150, 0, 255);
  FastLED.show();
  delay(500);
  leds[9] = CRGB(255, 200, 20);
  FastLED.show();
  delay(500);
  leds[14] = CRGB(85, 60, 180);
  FastLED.show();
  delay(500);
  leds[19] = CRGB(50, 255, 20);
  FastLED.show();
  delay(500);
