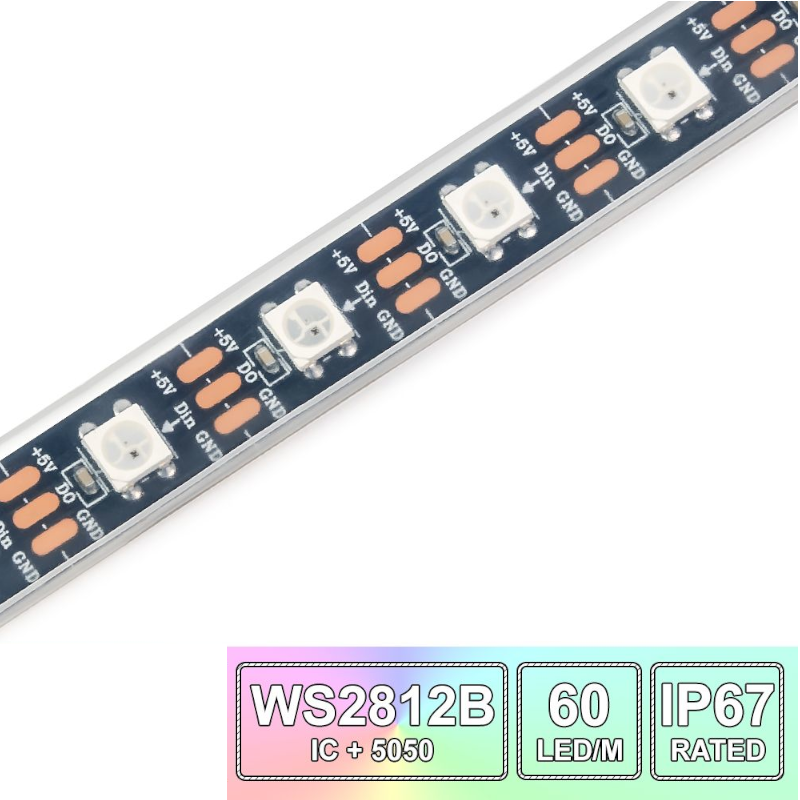

Fita LEDs RGB Endereçável 5V, WS2812B, 60 LED/m, Fundo Preto IP67 (Neopixel) - metro

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

• Input Voltage: DC5V
• Power: 18Watt/meter
• LED Resource: WS2812B Led(5050 SMD RGB LED With Built-in Improved Version Of WS2811 IC)
• LED: Each Led is Separately Controlled
• IC Type: Improved Version WS2812 IC(Built Inside The 5050SMD RGB LED)
• Pixels: 60/Meters
• Grey Scale: 256
• Bits/Color: 8-Bits/Color

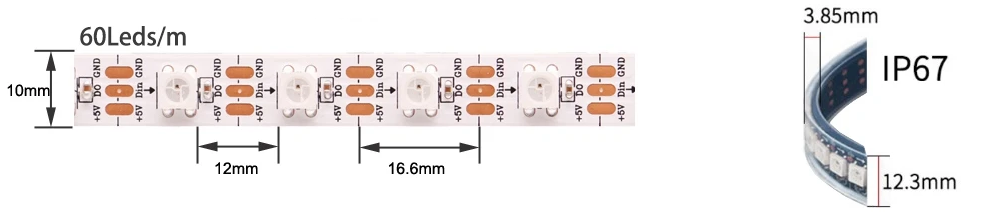

• FPC Width: 10mm
• FPC color: Black
• Protection Rate: IP67
• Colors: Full Color RGB, Dream Color Changing
• Cuttable: Every LED is Cuttable

Arduino

For programming the Arduino, we will use the FastLED library.

This is an excellent and well documented library which enables easy control of the WS2812B LEDs.

Sample Code

#include <FastLED.h>
#define LED_PIN     7
#define NUM_LEDS    20

CRGB leds[NUM_LEDS];

void setup() {

  FastLED.addLeds<WS2812, LED_PIN, GRB>(leds, NUM_LEDS);
}

void loop() {
  leds[0] = CRGB(255, 0, 0);
  FastLED.show();
  delay(500);
  leds[1] = CRGB(0, 255, 0);
  FastLED.show();
  delay(500);
  leds[2] = CRGB(0, 0, 255);
  FastLED.show();
  delay(500);
  leds[5] = CRGB(150, 0, 255);
  FastLED.show();
  delay(500);
  leds[9] = CRGB(255, 200, 20);
  FastLED.show();
  delay(500);
  leds[14] = CRGB(85, 60, 180);
  FastLED.show();
  delay(500);
  leds[19] = CRGB(50, 255, 20);
  FastLED.show();
  delay(500);
