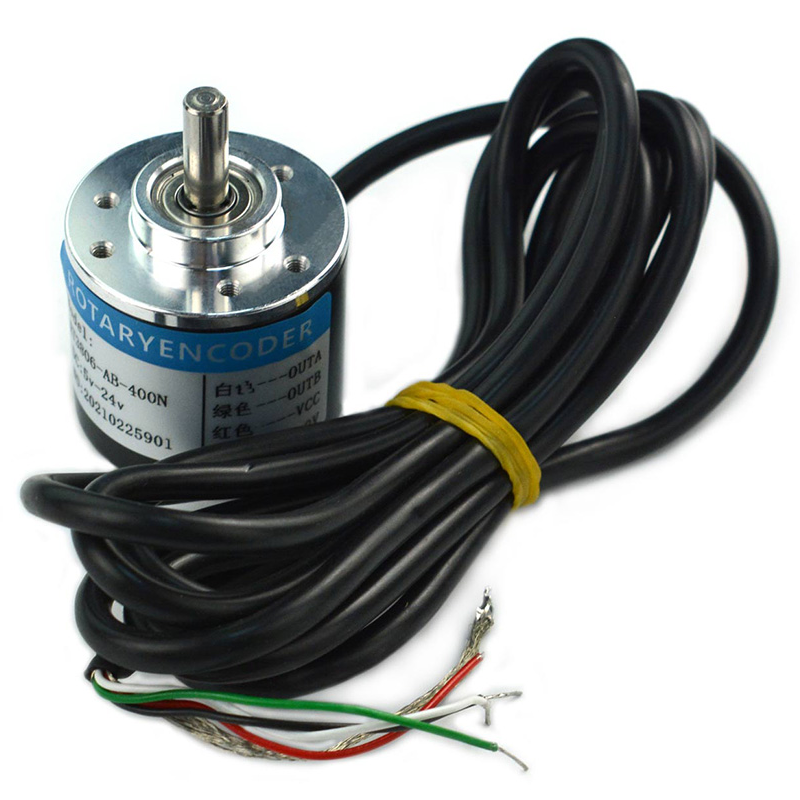

Encoder fotoelétrico incremental - 400P/R

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

This is an industrial incremental photoelectric rotary encoder with aluminum material, metal shell and stainless steel shaft. It generates AB two-phase orthogonal pulse signal though the rotation of the grating disk and optocoupler. 400 pulses/round for each phase, and 1600 pulses/round for dual-phase 4 times output. This rotary encoder supports max 5000 r/min speed. And it can be used for speed, angle, angular velocity and other data measurement.

The photoelectric rotary encoder has a NPN open collector output. It could work with Microcontroller with internal pull-up resistors directly. And it is using 750L05 voltage regulator chip, which has a DC4.8V-24V wide range power input, compatible with Arduino, STM32, PLC and other types of microcontrollers.

Note: NPN open collector output needs pull-up resistors for the oscilloscope display.

Specification

• Supply Voltage: 4.8V ~ 24v
• Encoder Body Size: Φ39× 36.5mm
• Output Shaft Diameter: Φ6 × 13mm
• Outside Shaft Platform: Φ20 × 4.85 mm
• Fixing Holes Screws: M3
• Weight: 234 g

Documents

• Product WIKI

Shipping List

• Encoder x1
• Encoder mounting bracket x1
• 6mm coupling x1
• Screw accessories x1
• 10K resistance x2
•

This is an industrial incremental photoelectric rotary encoder with aluminum material, metal shell and stainless steel shaft. It generates AB two-phase orthogonal pulse signal though the rotation of the grating disk and optocoupler. 400 pulses/round for each phase, and 1600 pulses/round for dual-phase 4 times output. This rotary encoder supports max 5000 r/min speed. And it can be used for speed, angle, angular velocity and other data measurement. The photoelectric rotary encoder has a NPN open collector output. It could work with Microcontroller with internal pull-up resistors directly. And it is using 750L05 voltage regulator chip, which has a DC4.8V-24V wide range power input, compatible with Arduino, STM32, PLC and other types of microcontrollers.

Specification

• Supply Voltage: 4.8V ~ 24v
• Encoder Body Size: Φ39× 36.5mm
• Output Shaft Diameter: Φ6 × 13mm
• Outside Shaft Platform: Φ20 × 4.85 mm
• Fixing Holes Screws: M3

Board Overview

Tutorial

Direction & Interrupt count

Requirements

• Hardware

  • DFRduino UNO (or similar) x 1
  • Incremental Photoelectric Rotary Encoder
  • 2x 1K Resistor
  • M-M/F-M/F-F Jumper wires

• Software

  • Arduino IDE, Click to Download Arduino IDE from Arduino®

Connection Diagram

Sample Code

/*!
 * @file  SEN0230.ino
 * @brief  Two phase quadrature encoder(Incremental)
 * @n  To determine motor with encode （CW OR CCW）
 * @copyright  Copyright (c) 2010 DFRobot Co.Ltd (http://www.dfrobot.com)
 * @license  The MIT License (MIT)
 * @author  Dongzi(1185787528@qq.com)
 * @version  V1.0
 * @date  2016-5-26
 */

#define  A_PHASE 2
#define  B_PHASE 3
unsigned int flagA = 0;  //Assign a value to the token bit
unsigned int flagB = 0;  //Assign a value to the token bit
/** *  */
void setup() {
  pinMode(A_PHASE, INPUT);
  pinMode(B_PHASE, INPUT);
  Serial.begin(9600);   //Serial Port Baudrate: 9600
  attachInterrupt(digitalPinToInterrupt( A_PHASE), interrupt, RISING); //Interrupt trigger mode: RISING
}
void loop() {

  Serial.print("CCW:  ");
  Serial.println(flagA);
  Serial.print("CW: ");
  Serial.println(flagB);
  delay(1000);// Direction judgement

}
void interrupt()// Interrupt function
{ char i;
  i = digitalRead( B_PHASE);
  if (i == 1)
    flagA += 1;
  else
    flagB += 1;
}

OUTPUT

Expected Results

Use the interruption to detect the rotation direction and count cylinder number.
