Shield LCD TFT 2.4 polegadas tátil c/ driver ILI9341

: ARD03180
13,95 €
preço com IVA incluído

Com este shield LCD poderá criar interfaces e dar interacção ao seu projecto com Arduino.

Com 2.4 polegadas de tamanho e 320x240 pixeis de resolução tem ainda suporte para interface tátil e slot para cartões de memória do tipo SD.

Ver na descrição como usar com o seu Arduino UNO ou Mega.

Quantidade

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Product Description

  • Supports development boards such as Arduino UNO and Mega2560 for plug-in use without wiring
  • 320X240 resolution, clear display, support for touch function
  • Support 16-bit RGB 65K color display, display rich colors
  • 8-bit parallel bus, faster than serial SPI refresh
  • On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
  • Easy to expand the experiment with SD card slot
  • Provides an Arduino library with a rich sample program
  • Military-grade process standards, long-term stable work
  • Provide underlying driver technical support

Product Parameters

Name Parameter
Display Color RGB 65K color
SKU MAR2406
Screen Size  2.4(inch)
Type TFT
Driver IC ILI9341
Resolution 320*240 (Pixel)
Module Interface 8-bit parallel interface
Active Area  48.96*36.72(mm)
Module PCB Size 72.20*52.7(mm)
Operating Temperature -20℃~60℃
Storage Temperature -30℃~70℃
Operating Voltage 5V/3.3V
Power Consumption TBD
Product Weight(Package containing) 39(g)

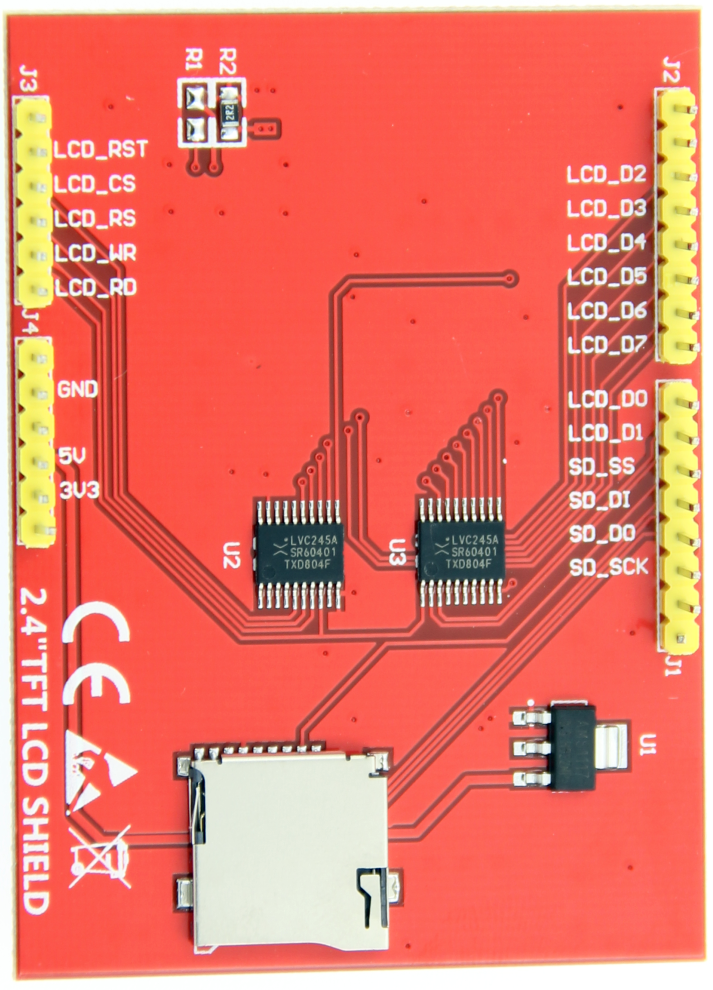

Interface Definition

Number Pin Label Pin Description
1 LCD_RST LCD bus reset signal, low level reset
2 LCD_CS LCD bus chip select signal, low level enable
3 LCD_RS LCD bus command / data selection signal,

low level: command, high level: data
4 LCD_WR LCD bus write signal
5 LCD_RD LCD bus read signal
6 GND Power ground
7 5V 5V power input
8 3V3 3.3V power input, this pin can be disconnected
9 LCD_D0 LCD 8-bit data Bit0
10 LCD_D1 LCD 8-bit data Bit1
11 LCD_D2 LCD 8-bit data Bit2
12 LCD_D3 LCD 8-bit data Bit3
13 LCD_D4 LCD 8-bit data Bit4
14 LCD_D5 LCD 8-bit data Bit5
15 LCD_D6 LCD 8-bit data Bit6
16 LCD_D7 LCD 8-bit data Bit7
17 SD_SS SD card SPI bus chip select signal, low level enable
18 SD_DI SD card SPI bus MOSI signal
19 SD_DO SD card SPI bus MISO signal
20 SD_SCK SD card SPI bus clock signal



Connect to Arduino

Uno fit example Mega fit example

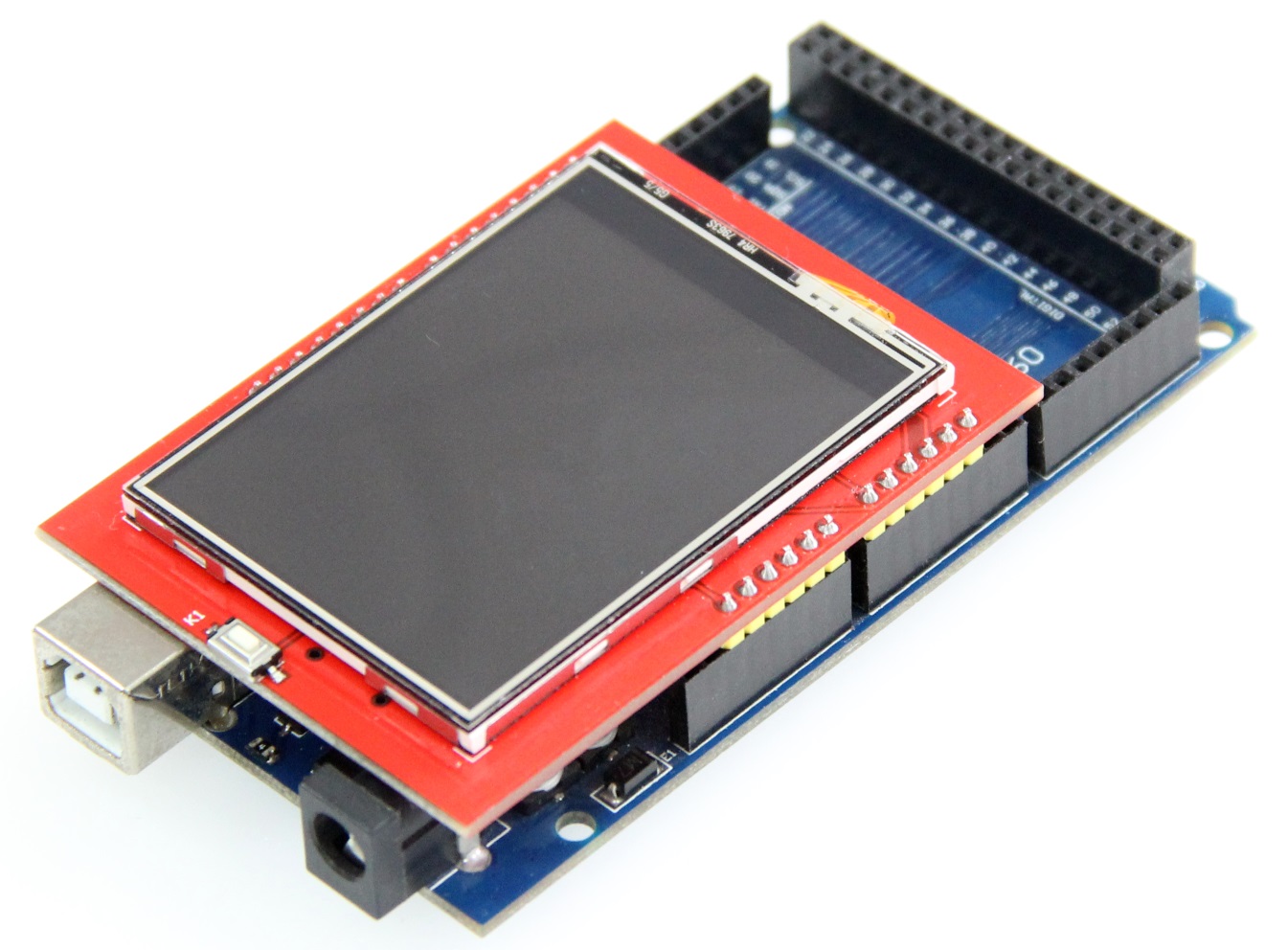

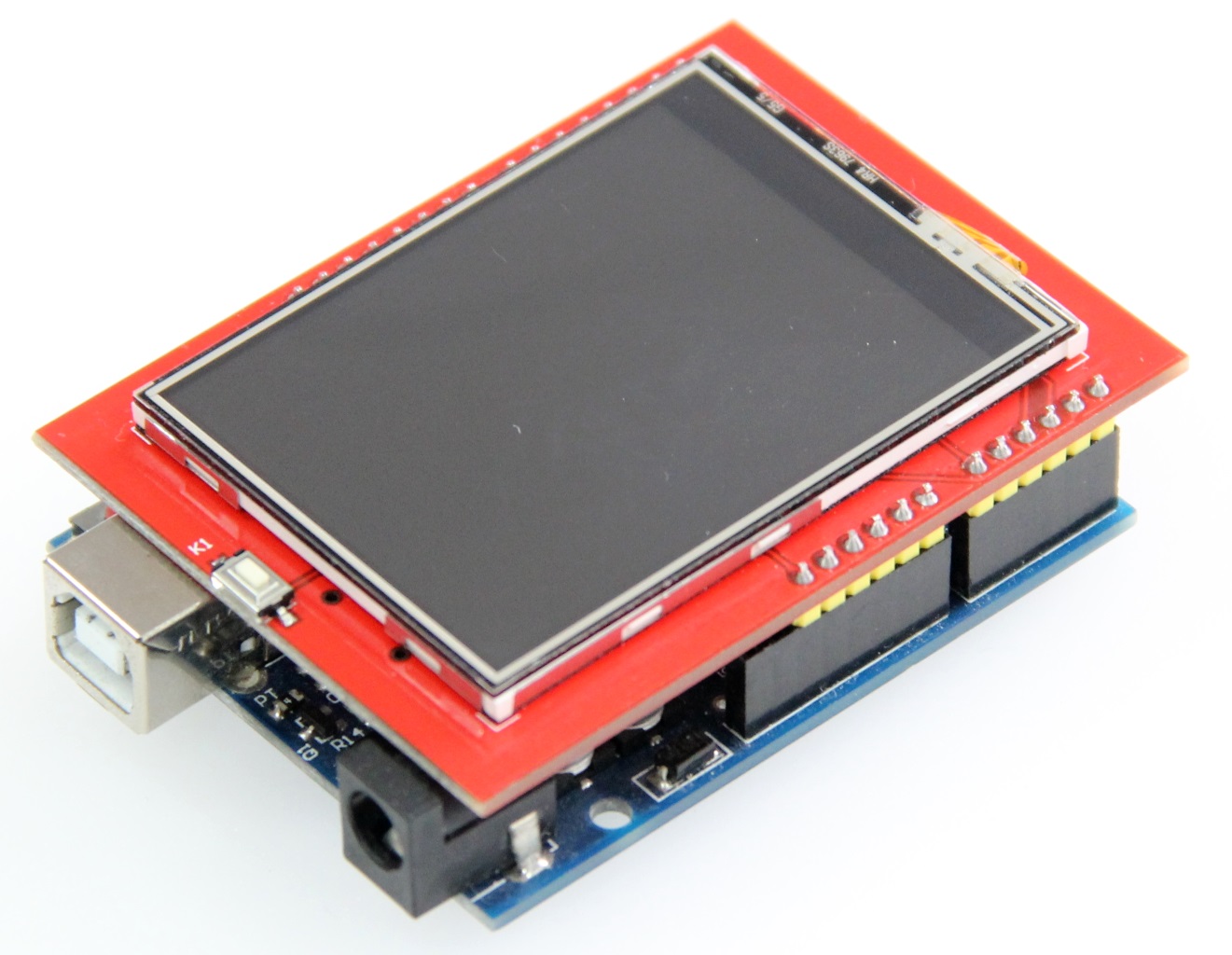

Arduino UNO direct insertion picture Arduino Mega2560 direct insertion picture

























How to use on Arduino

  • Step 1: Download the test program
  1. Download the Arduino test program from the Program Download column
  2. For a description of the relevant test procedures, please refer to the test program documentation in the package
  • Step 2: Connect the Arduino development board
  1. Plug the module directly into the Arduino development board ( Do not plug in?)
  2. After the module is plugged in, power on the Arduino board
  • Step 3: Copy the dependent library
  1. Make sure the Arduino IDE is installed on your computer (if it is not installed: Arduino IDE download URL)
  2. After installing the Arduino IDE, you need to copy the dependent library to the Arduino project directory as follows:

(1) Decompress the downloaded test package

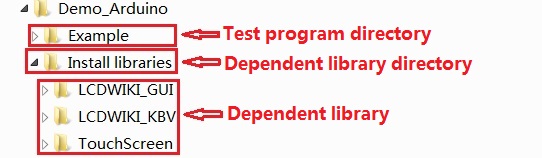

(2) Copy the dependent libraries in the Install libraries directory in the package (shown below) to the libraries folder

of the Arduino project directory （ Don't know the Arduino project directory?）


  • Step 4: Compile and download the program to the development board
  1. Open the sample in the Example directory of the package to test, compile and download（ Don't know how to compile and download?）
  • Step 5: Observe the running of the program

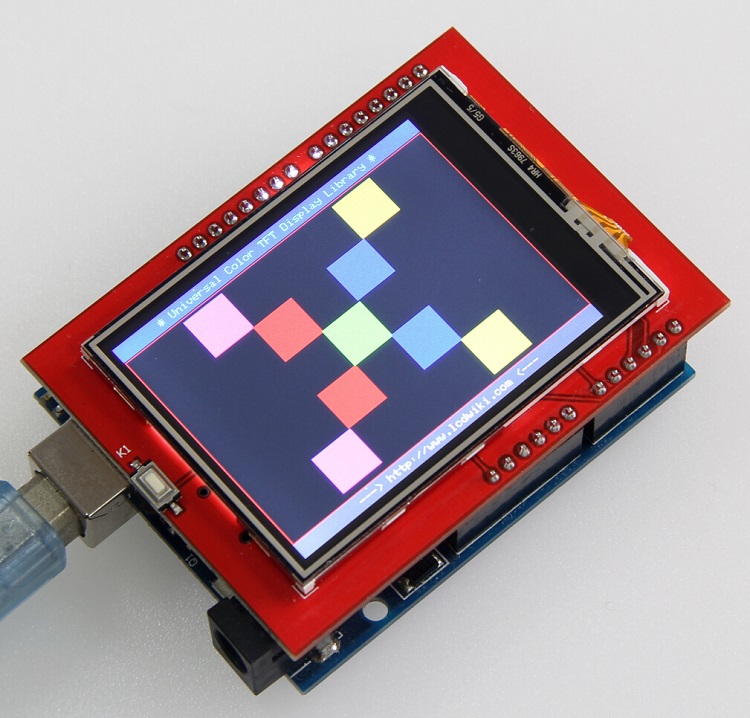

  1. After the program is downloaded, run it directly and observe the running status. If it can be displayed normally, the program runs

successfully, as shown in the following figure (take the colligate_test test program as an example):

MAR2406-001.jpg MAR2406-002.jpg

Program Download

Product Documentation

Reference Materials

Common Software
