  • Shield LCD 2.8'' tátil p/ Arduino
  • Shield LCD 2.8'' tátil p/ Arduino

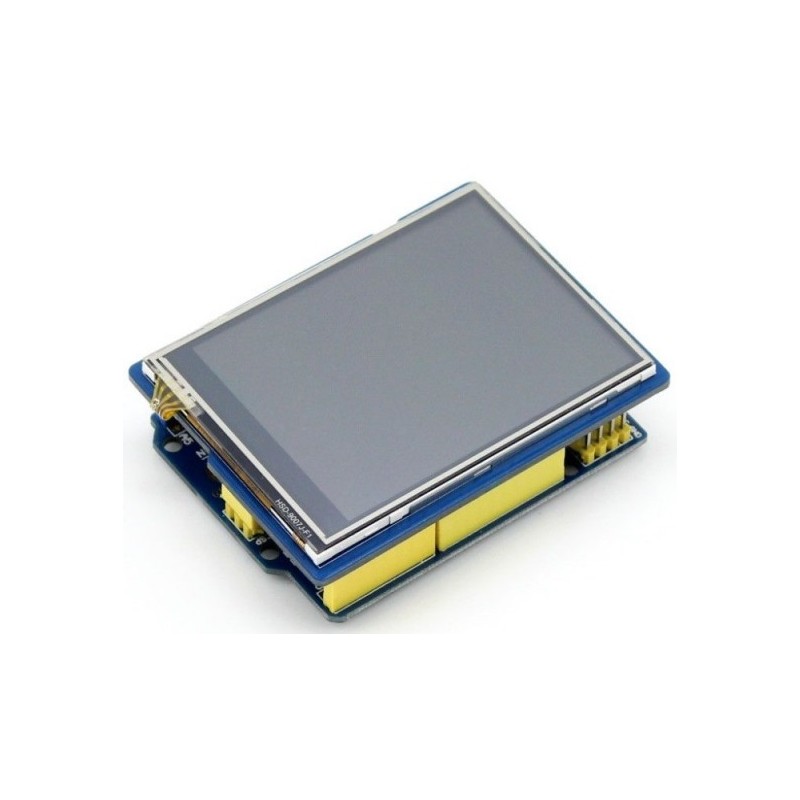

Shield LCD 2.8'' tátil p/ Arduino

: ARD03104
22,50 €
18,90 € Poupe 3,60 €
preço com IVA incluído
Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.



Features

  • Resistive touch screen TFT LCD, 2.8 inch, 320×240 resolution
  • Standard Arduino interface, compatible with development boards like : Arduino UNO, Leonardo, UNO PLUS, NUCLEO, XNUCLEO
  • Onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control
  • Micro SD slot, provides an easy way to store photos for displaying
  • Controlled via SPI, only a few Arduino pins are used
  • Backlight adjustable by program, lower power consumption



Key Parameters

LCD Type

TFT

LCD Interface

SPI

LCD Controller

HX8347D

Touch Screen Type

Resistive

Touch Screen Controller

XPT2046

Colors

RGB, 65K colors

Resolution

320x240 (Pixel)

Display Size

57.6mm×43.2mm

Outline Dimension

73.3mm×55.3mm

I/O Voltage

3.3V/5V



Interface

Arduino PIN

Symbol

Description

D3

TP_IRQ

Touch panel interrupt

D4

TP_CS

Touch panel chip select

D5

SD_CS

Micro SD card chip select

D7

LCD_DC

LCD data/command selection

D9

LCD_BL

LCD backlight control

D10

LCD_CS

LCD chip select

D11

MOSI

SPI data input

D12

MISO

SPI data output

D13

SCLK

SPI clock



External Dimension

2.8inch-TFT-Touch-Shield-dimension

Downloads

Development resources: demo codes, schematic, datasheets, etc.
www.waveshare.com/wiki/2.8inch_TFT_Touch_Shield
