Módulo 3 MOSFETs IRF540 para Arduino - Keyestudio KS0449

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Overview

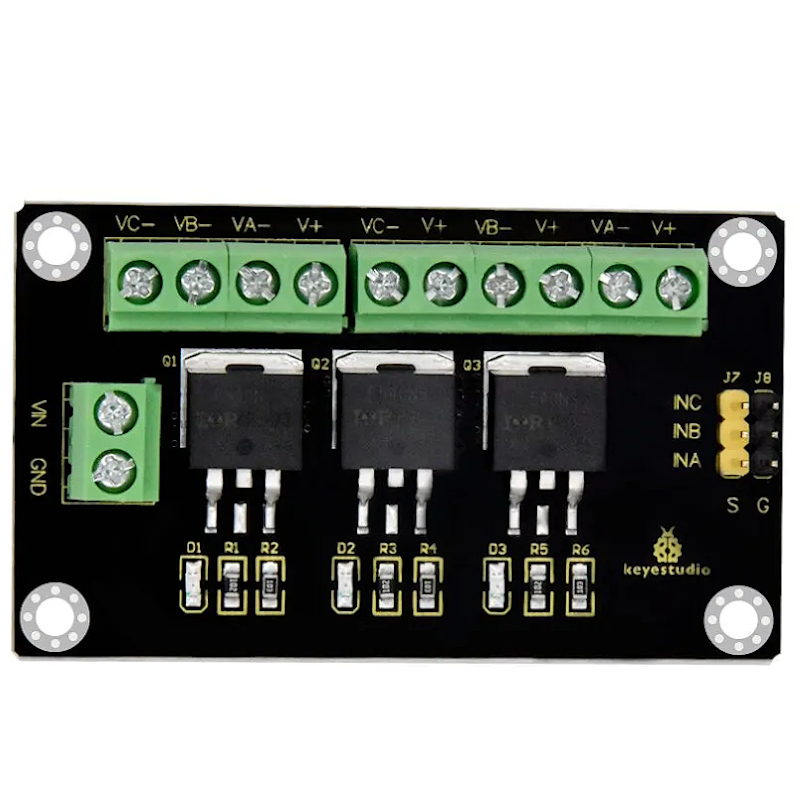

The keyestudio 3-channel IRF540NS high-current MOS module uses 3-channel MOS switch, which is applied to operate the high-current with small current, similar to a relay element.
It can be applied to drive the Servo, high-current LED light, etc.
When using, input the voltage less than 40V to the terminal block VIN GND, the voltage of V+ block is equal to VIN block.
We can control the HIGH or LOW of NA NB NC pin headers to determine whether connect to ground.
When at HIGH, NA- NB- NC-pin headers are connected to ground, D1 D2 D3 led will turn on; when at LOW, NA- NB- NC-pin headers suspend, D1 D2 D3 led will turn off.
The module comes with four 3mm fixing holes, easy to fix on any other devices.

Special note: this module only supports 5V microcontroller rather than 3.3V microcontroller.

Technical Details

1. Working voltage: VIN terminal is less than DC 40V

2. Operating current: less than 10A

3. Operating temperature: -20 ~ +60℃

4. Dimensions: 66mm * 38mm * 12 mm

5. Weight: 22.8 g

6. Environmental properties: ROHS
