Expansão 3 Relés para Jetson Nano - isolados opticamente

: MRE03042
14,90 €
preço com IVA incluído

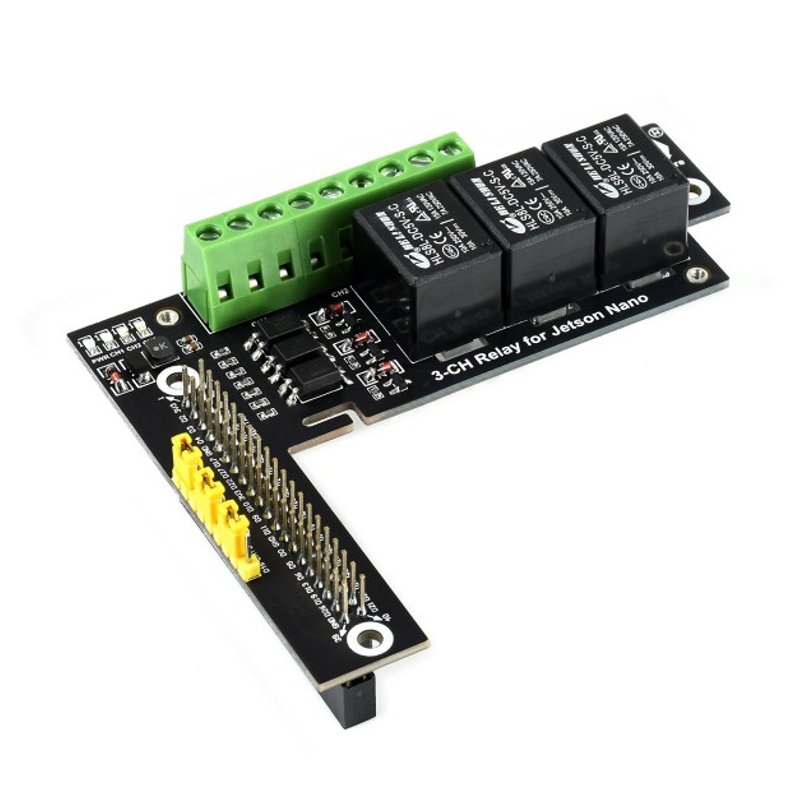

Módulo para Jetson Nano equipado com 3 relés isolados por optoacopladores. Esta expansão possui um conector GPIO de 40 pinos que pode ser conectado diretamente ao Jetson Nano. A carga máxima do relé é ≤ 5 A 250 V CA ou ≤ 5 A 30 V CC. Módulo com dimensões externas de 100x79mm.

Quantidade

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description

Quality 3-ch relay expansion board designed for Jetson Nano, Optocoupler isolation
3-CH Relay for Jetson Nano

3 channels relay control
Configurable control pin, up to 2x stackable


Features at a glance
  1. Standard 40PIN GPIO header, directly pluggable onto the Jetson Nano
  2. Incorporate quality relay component, max load: ≤5A 250V AC or ≤5A 30V DC
  3. Optocoupler isolation, prevent interference from the high voltage circuitry
  4. Indicators for monitoring the relay operating status
  5. Control pins of relays are configurable via jumpers
  6. Acrylic bottom panel, isolating the Jetson Nano from the relay expansion board
  7. Comes with development resources and user manual (python and python-bottle examples)
