Módulo Relé 10A 1 canal 5V compatível com arduino

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

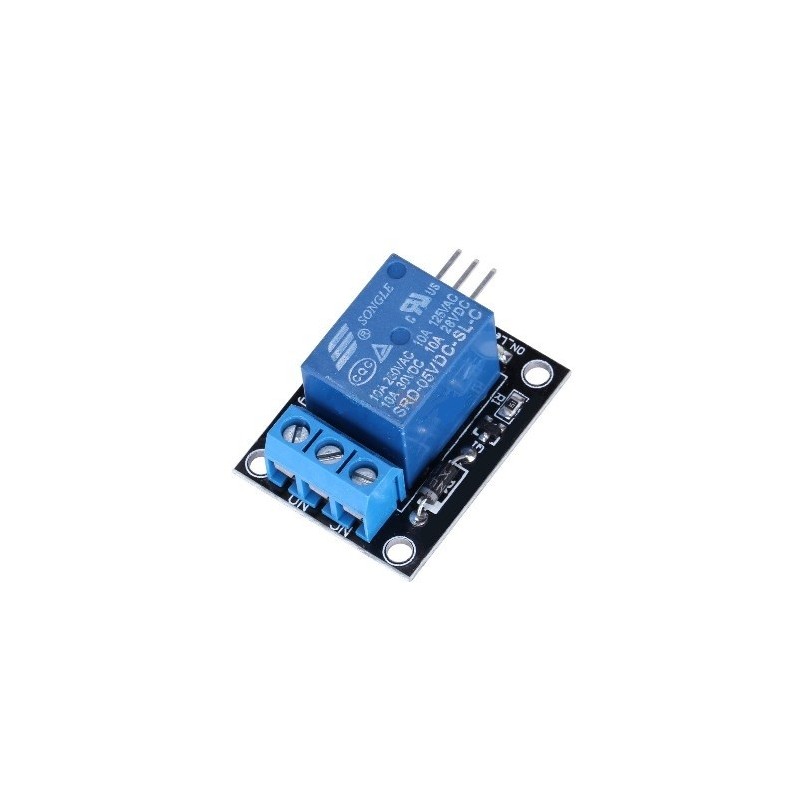

This single relay module can be used in interactive projects. This module uses SONGLE 5v high-quality relay. It can also be used to control lighting, electrical and other equipment. The modular design makes it easy to expand with the Arduino board (not included). The Relay output is by a light-emitting diode. It can be controlled through digital IO port, such as solenoid valves, lamps, motors and other high current or high voltage devices.

Specification:

• Type: Digital
• Rated current: 10A (NO) 5A (NC)
• Maximum switching voltage: 150VAC 24VDC
• Digital interface
• Control signal: TTL level
• Rated load: 8A 150VAC (NO) 10A 24VDC (NO), 5A 250VAC (NO/NC) 5A 24VDC (NO/NC)
• Maximum switching power: AC1200VA DC240W (NO) AC625VA DC120W (NC)
• Contact action time: 10ms
• Size: 40*28mm
• Weight: 15g
