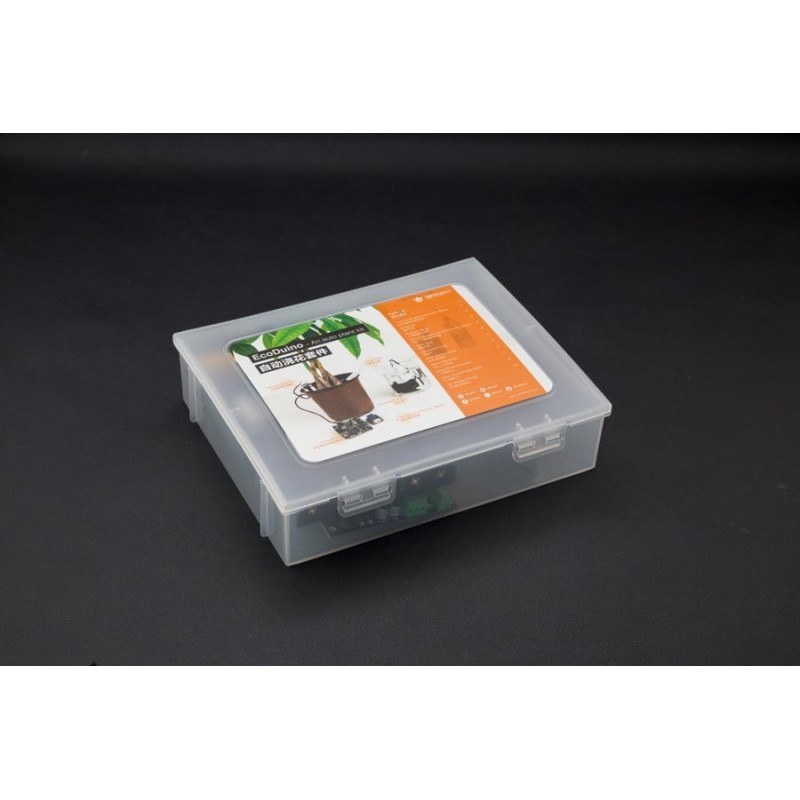

EcoDuino - Rega Automática mediante Temperatura e Humidade

: ARD04020
55,95 €
preço com IVA incluído
Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

INTRODUCTION



EcoDuino is evolving.  Now the EcoDuino has a new enclosure. It is protected from water splashes, so it is safe to use beside your plants. The EcoDuino now sports an Atmega32U4 which eliminates the requirement of an adapter.  And sketches can simply uploaded via  Micro USB just like Arduino Leonardo.  Another improvement is that the DS18B20 sensor is now directly supported.



EcoDuino is designed by DFRobot to help you grow plants. By using a series of microcontrollerssensors and actuators, the EcoDuino system can make your efforts to grow plants much easier.

In this system, sensors are used to collect data which can show you plant conditions like temperature,humidity,light intensity, etc...



If you want, EcoDuino can message you and tell you how your plants are doing through wireless communications. It will also water your plants automatically when they are thirsty, or at a pre-determined interval. The only thing you may need to do is manage your EcoDuino system through a PC with a graphic user interface.



The cool thing about the EcoDuino is that it is developed based on Arduino which means you can not only program EcoDuino in Arduino IDE environment but also use any Arduino compatible hardware in your EcoDuino system.

Сделал АвтоПолив Растений



An Auto Planting Kit from Dfrobot unboxing

Набор для автоматического полива растений EcoDuino



Version Upgrade: Kit 2.0 has redesigned the PCB to fit the new enclosure. The other feature is same to the last version and the code is compatible.



Project 1. Build An Automatic Plant Watering System with ESP8266

Hardware needs:

SPECIFICATION

  • Board power supply: 6~12V DC
  • Micro controller: Atmega32U4 (Bootloader: Leonardo)
  • 4 Analog I/O ports, 5 Digital I/O ports
  • Terminal for interfacing a Carbon rod(Soil moisture sensor)
  • Terminal for interfacing a DS18B20 temperature sensor(Soil temperature sensor)
  • Terminal for interfacing a motor or a solenoid valve
  • Potentiometer to set the threshold soil moisture value of watering
  • Xbee slot
  • Micro USB
  • 3.5mm screw terminal
  • Board dimensions: 75 x 50 mm
  • Diving pump power supply: 4.5~12V DC
  • Pumping head: 200cm
  • Flow capacity: 100-350L/H
  • Power range: 0.5W-5W
  • Pump dimensions: 38x38x29mm
  • Pump weight: 125g



DOCUMENTS



SHIPPING LIST



PROJECTS
