Gravity Starter Kit para Arduino
DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos.
*Atenção: as imagens são meramente ilustrativas.

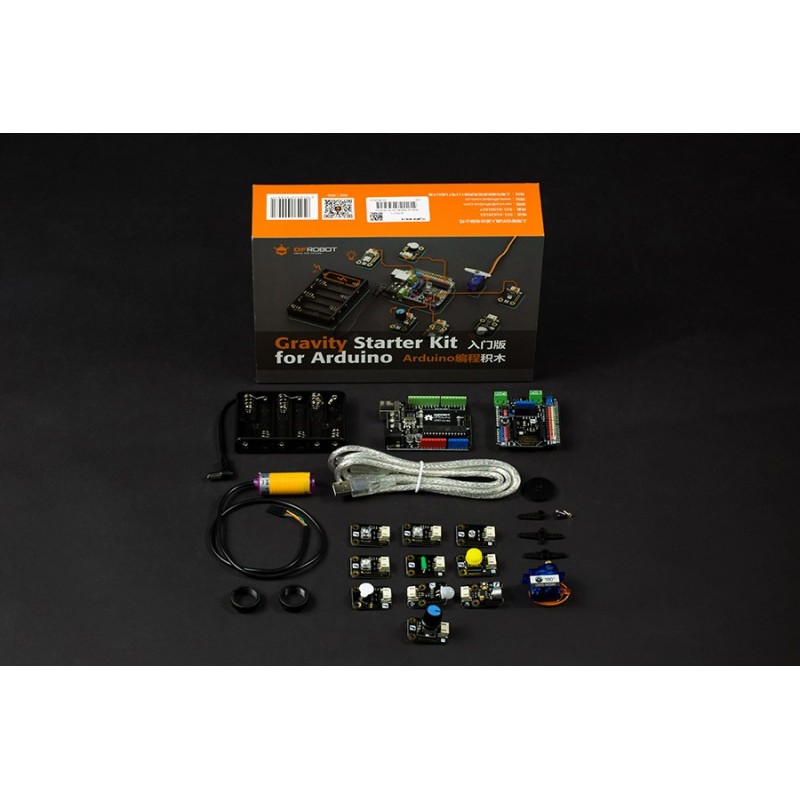

Gravity Arduino Starter kit is a plug&play electronics toolkit that provides Arduino beginners and makers with the easiest experience of learning and playing with the Arduino platform.
Gravity Starter Kit includes a DFRduino UNO R3 microcontroller, which functions exactly the same as Arduino UNO, and 12 most popular and interesting electric components and sensors. With the IO expansion shield, sensors can be connected directly onto the board without jumper wires or bread board. Sensors in the kit belongs to DFRobot’s Gravity Series. These sensor are built highly modularized and interact with microcontrollers with 3-pin pinhead. Moreover, Different types of sensors can be easily identified by the logo printed on the back of the PCB board. All components included in the kit are fully compatible with Arduino microcontrollers. With Gravity Starter Kit, making your project will just be as simple as building blocks.
Gravity Starter Kit is also provided with tutorial, which aims to help Arduino learners understand Arduino programming. The tutorial goes through the installation of the software, the Arduino IDE, and its programming language, then teach you how to build electric circuit, how to use different electric components and their signaling. It also includes instruction for building projects from lighting up an LED to eventually use multiple components to make a real project such as “Fire Alarm” or “Weather Station". The tutorial is full of graph and is written in a simply way that anyone could build their own project using Gravity Starter Kit with no difficulty.
Tutorial Content List:
- An Introduction to Arduino
- How Does A Device “Think”?
- Analog and Digital Signals
- Project 1. Make an LED Blink
- Project 2. Sensor Light
- Project 3. Mini Lamp
- Project 4. Sound Activated LED
- Project 5. Fading LED
- Project 6. Light Regulator
- Project 7. Open Sesame!
- Project 8. Pandora's Box
SPECIFICATION
- Microcontroller: DFRduino UNO R3
- Power Supply: 6*AA Batteries or 6-12V AC power adapter
- Dimension: 220cm * 165cm * 65 cm
- Weight: 300g
DOCUMENTS
SHIPPING LIST
- DFR0216 DFRduino UNO R3 x1
- DFR0265 Gravity: IO Expansion Shield for Arduino V7.1 x1
- DFR0031-R Gravity: Digital Piranha LED Module-Red x 1
- DFR0031-G Gravity: Digital Piranha LED Module - Green x 1
- DFR0031-Y Gravity: Digital piranha LED module-Yellow x 1
- DFR0029 Gravity: Digital Push Button (Yellow) x 1
- DFR0026 Gravity: Analog Ambient Light Sensor x 1
- DFR0034 Gravity: Analog Sound Sensor x 1
- DFR0054 Gravity: Analog Rotation Sensor V1 x1
- DFR0032 Gravity: Digital Buzzer Module x 1
- SEN0171 PIR (Motion) Sensor x 1
- DFR0028 Gravity: Digital Tilt Sensor for Arduino V2 x 1
- SEN0019 Adjustable Infrared Distance Sensor x 1
- SER0039 9g Metal Gear Micro Servo (1.8Kg) x 1
- FIT0141 6xAA Battery Holder with DC2.1 Power Jack x 1
- FIT0056 USB Cable A-B for Arduino x 1
