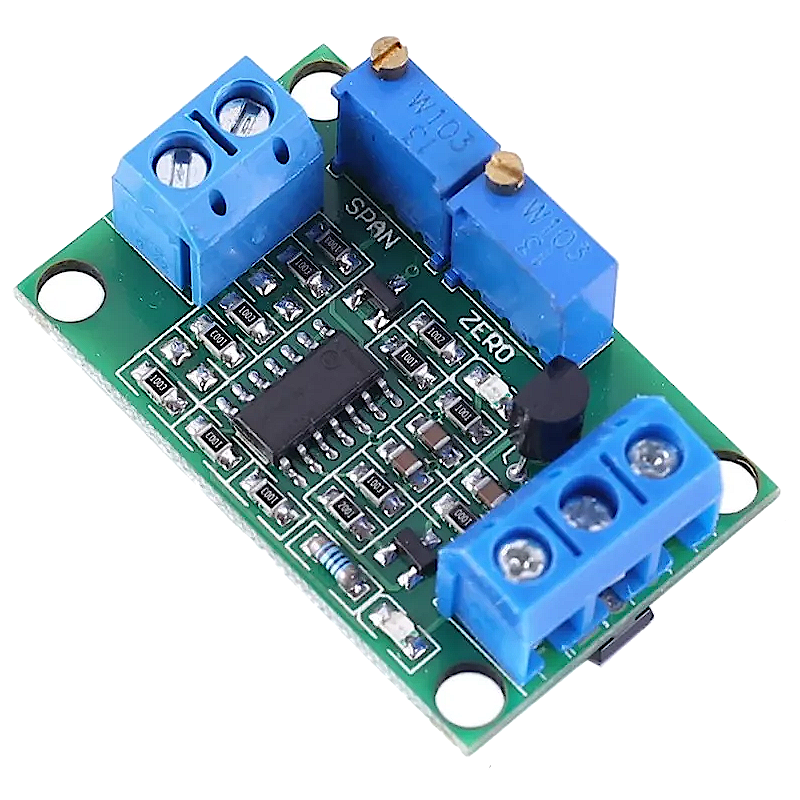

Módulo Conversor de Tensão 0~10V para Corrente 4~20mA

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

1.Description:
It is a 0-10V to 4-20mA Voltage to Current Converter. It can convert DC 0-10V voltage signal to 4-20mA current signal.User also can reset input voltage range and output current range by two potentiometer. It also can be used a constant current output source without input voltage signal.

2.Features:

1. Repeatable setting parameters
2. Constant current output source
3. Flame retardant material connector

3.Parameters:

1. Product Name:0-10V to 4-20mA Voltage to Current Converter
2. Working Voltage:DC 7V-30V
3. Input Signal Voltage:DC 0-10V(Default)
4. Output Signal Current:4mA-20mAV(Default)
5. Precision: 1mA
6. Working Temperature range:-10℃~60℃
7. Working Humidity Range:10%-90%RH
8. Module Size:40*25*16mm
