Big Easy Driver

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste ou outro produto não hesite em contactar-nos

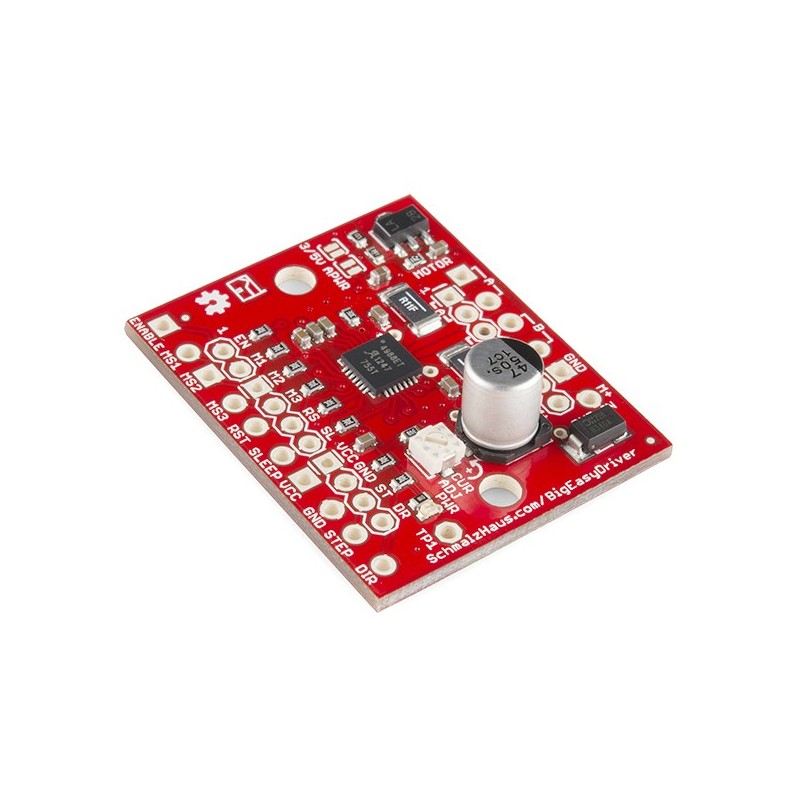

The Big Easy Driver, designed by Brian Schmalz, is a stepper motor driver board for bi-polar stepper motors up to  1.4A/phase ( 2A/phase with active cooling and heatsink ). It is based on the Allegro A4988 stepper driver chip. It's the next version of the popular Easy Driver board.

Each BigEasyDriver can drive up to about 1.4A per phase of a bi-polar stepper motor. It is a chopper microstepping driver which defaults to 16 step microstepping mode. It can take a maximum motor drive voltage of around 35V, and includes on-board 5V/3.3V regulation, so only one supply is necessary. Although this board should be able to run most systems without active cooling, a heatsink is recommended for loads approaching 2A/phase. You can find the recommended heatsink in the related items below.

Note: The arrow indicators on the current adjustment potentiometer is backwards. Keep this in mind if you're adjusting the current limits.

Note: This product is a collaboration with Brian Schmalz. A portion of each sales goes back to them for product support and continued development.

Features:

• Bi-polar Microstepping Driver
• 1.4A/Phase ( 2A/phase Max with active cooling and heatsink )
• Max Motor Drive Voltage: 35V
• On-board 5V/3.3V Regulation

Documents:

• Schematic
• Eagle Files
• Datasheet (A4988)
• Design Site
• Bildr Tutorial
