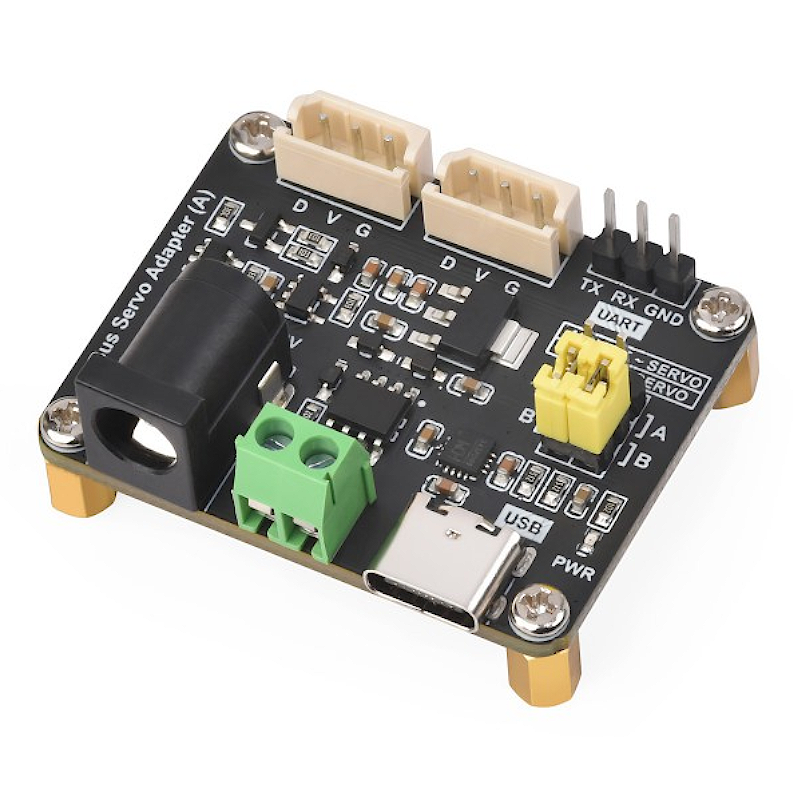

Driver de Servos Série da gama ST c/ controlo via UART ou USB, com integração de circuito de alimentação - Waveshare 25514

Features at a glance

Specifications

Application examples

1. Servos will provide various feedback like position, speed, torque lock, and operating mode (servo mode, servo motor mode, etc.) for advanced projects requiring closed-loop automatic control

2. Ideal choice for building quadruped robots, hexapod walkers, robotic arms and other robotic projects requiring multiple servos

3. Compact size, suitable for integration into sorts of space-limited projects

* images here are for reference ONLY

UART serial bus control

Allows controlling up to 253 SC/ST series serial bus servos at the same time, supports receiving the operating status and various information feedback of each servo

Note: though one channel UART can control up to 253 bus servos, due to the high power of the servos, it is necessary to consider whether the power supply solution is enough when using too many servos.

Two Power supply methods

Onboard DC5521 power jack and screw terminal for easy integration into existing projects

Supports UART and USB control

Switching the control mode by selecting A or B via the jumper

Easy to use with USB control

Connect the driver board to the host via a USB cable to easily control the serial bus servo and receive data feedback, speeding up the project prototyping process

Suitable for more Applications via UART

Supports directly controlling the serial bus servo via UART communication, and provides SDK which is compatible with various hardware platforms, please refer to the product's Wiki for more details

Note: for reference only, the servos, control boards and hosts above are NOT included.

Comes with development resources and manual

What's On Board

Outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/Bus_Servo_Adapter_(A)

Package Content

Weight: 0.016 kg

Bus Servo Adapter (A) x1
