Driver para 2 Motores DC até 1.2A (TB6612FNG)

: MOT01047
4,95 €
preço com IVA incluído

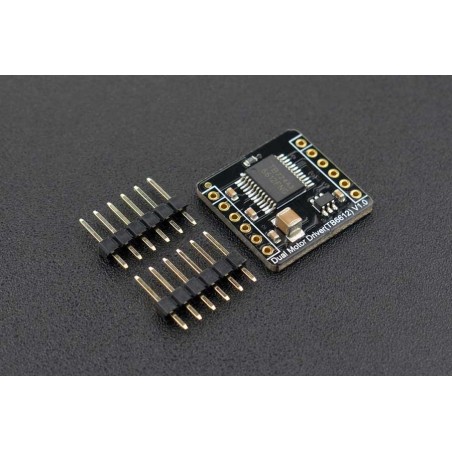

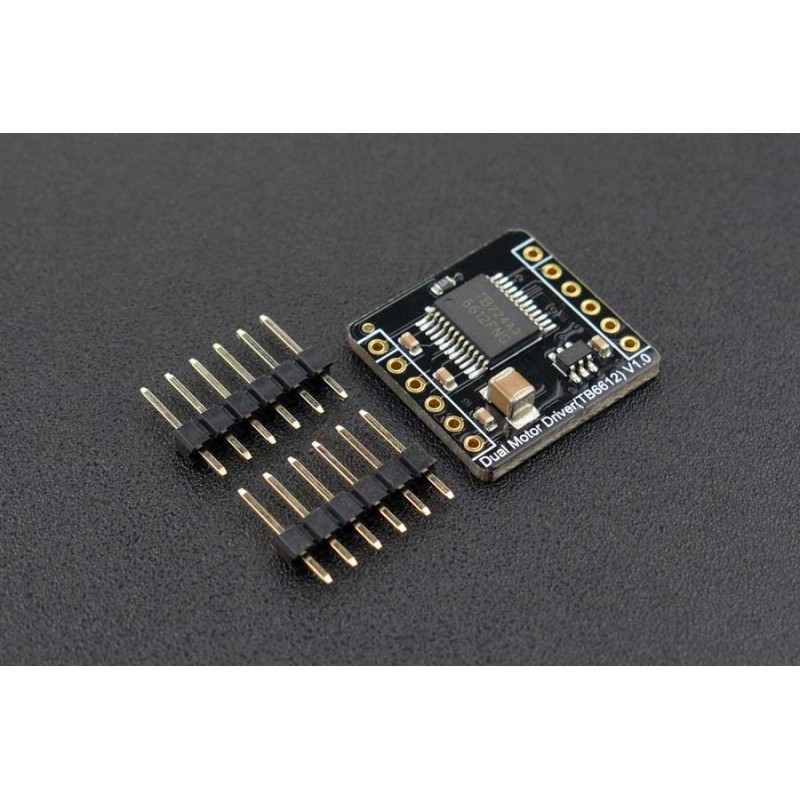

Este driver de motor DC dual-way DFRobot é projetado com base no driver de motor TB6612FNG. Precisa apenas de quatro pinos para acionar dois motores, economizando assim dois preciosos recursos do GPIO, especialmente na placa Arduino UNO.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

TB6612FNG is a dual-channel full-bridge drive chip. The maximum continuous drive current of single channel can reach 1.2A, peak value 2A/3.2A (continuous pulse / single pulse) , which can drive some micro DC motors. The control logic is similar to L298n, and the code can be directly compatible with the DFROBOT L298N motor driver. Standard XH2.54 pin can be inserted directly into the breadboard. It is a good choice for DIY project or product developments.

Specification

  • VCC Operating Voltage: 2.7V~5.5V
  • VM Input Power: 2.5V~12V
  • Output Current: 1.2A (single-channel continuous drive current)
  • Start / Peak Current: 2A (continuous pulse) / 3.2A (single pulse)
  • Dimension: 0.79 x 0.77(in) / 20 x 19.50(mm)



Board Overview


2x1.2A DC Motor Driver (TB6612FNG)
Label Number Description
1 DIR1 M1 Direction Control
2 PWM1 M1 Speed control(PWM)
3 PWM2 M2 Speed control(PWM)
4 DIR2 M2 Direction Control
5 GND Negative power supply
6 VCC Power 3.3V-5V or IO port output high
7 M1+ A Output 1
8 M1- A Output 2
9 M2+ B Output 1
10 M2- B Output 2
11 GND Negative power supply
12 VM(<12V) Motor drive power 3.3V-12V



Tutorial

Connection Diagram

  • Hardware
    • 1 x DFRduino UNO R3
    • 1 x Dual Motor Driver (TB6612)
    • 8 x Breadboard Jumper Cables
    • 2 x DC Motor
    • 5 x AA Battery




Arduino Connection



Sample Code

int PWM1 = 5;
int DIR1 = 4;
int PWM2 = 6;
int DIR2 = 7;
void setup()
{
  pinMode(DIR1, OUTPUT);
  pinMode(DIR2, OUTPUT);
}
void loop()
{
  int value;
  for(value = 0 ; value <= 255; value+=5)
  {
    digitalWrite(DIR1,HIGH);
    digitalWrite(DIR2, HIGH);
    analogWrite(PWM1, value);   //PWM Speed Control
    analogWrite(PWM2, value);   //PWM Speed Control
    delay(30);
  }
}



Result

Two motor speeds change from 0 to maximum, cycle.
