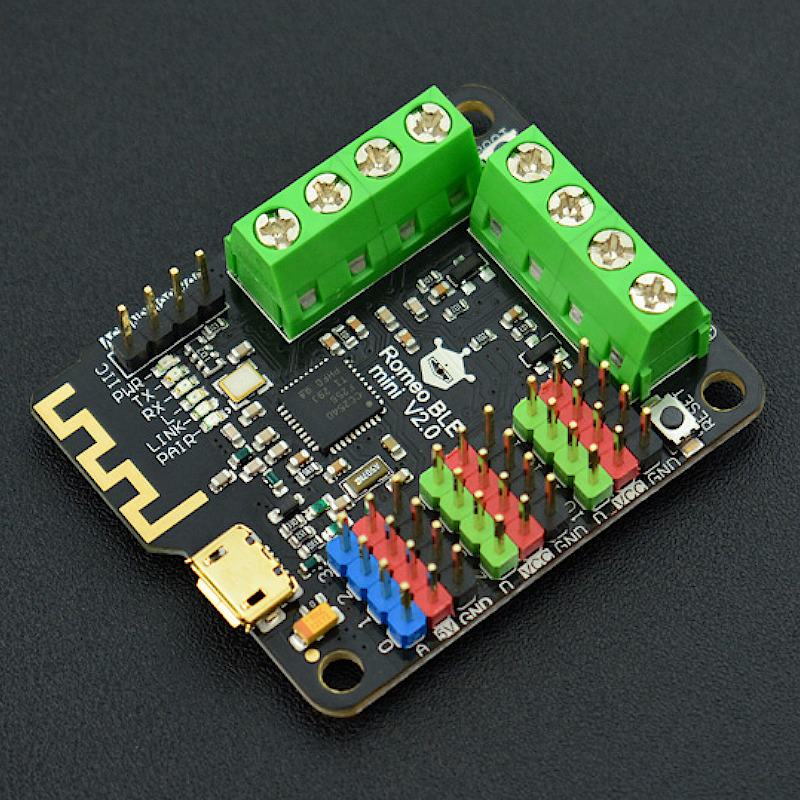

Romeo BLE mini - Arduino c/ Driver Motores e Bluetooth 4.0

: ARD02043
28,60 €
preço com IVA incluído

Romeo BLE mini é uma placa que incorpora um microcontrolador Arduino, um driver de motores que lhe permite acionar diretamente 2 motores DC até 1.5A cada um e disponibiliza ainda comunicação sem fios Bluetooth 4.0, que lhe permite também descarregar novos sketches Arduino sem ter que ligar um cabo. Todas estas funções numa placa de pequenas dimensões, ideal para construir o seu mini robô!

Se quiseres saber mais sobre este produto, consulta a sua Wiki Page.



Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

Romeo BLE mini is a simplified version of Romeo family. It inherits all functions of Romeo BLE. Moreover, IT GOT A SMALLER SIZE! Yes, you got it all. It has 8 Digital pins, 4 analog pins and integrates Bluetooth 4.0 wireless communication function. And it can easy to drive the mobile platform using two 1.2A H-bridged Motor Driver to meet the needs of small scale robots. We hope Romeo BLE mini will be a good assistant to makers. You may also check Bluetooth Microcontrollor Selection Guide to get more information.

Version Update: V2.0 has upgraded its motor driver IC, it replaces HR8833 with TB6612 motor driver chip. TB6612 has the same control logic with L298 motor driver. The code will be compatible with Romeo robot control board. And it finally breakouts 2 interrupt pins now! You can connect encoders to make PID motor control.




Romeo BLE mini Projects:

How To Make an Arduino compatible Bluetooth Tank with Custom Android Application (V1.0)

How to Build a BB-8 Robot

How to Build a Smartphone-Controlled Robot for Arduino In Only 1 hour

How to make a Wobbly Penguin Robot for Arduino



Features

  1. Support Gravity-3Pin interface, color-coded, compatible with servos and Gravity sensors & modules

  2. Support external power supply automatically switch, can simultaneously USB and external power supply

  3. Support wireless download program / wireless communication function

  4. Support mobile phone APP control

  5. Two-way H-bridged Motor Driver

  6. Support servo external power input

  7. Supports AT commands to configure BLE

  8. Support serial transmission

  9. Support master and slave switch



Specification

  1. BLE chip: TI CC2540

  2. Transmission distance: 30m (open area)

  3. Microprocessor: ATmega328P

  4. Board selection: Arduino UNO

  5. Flash: 32 KB (ATmega328P) of which 0.5 KB used by bootloader

  6. SRAM2: KB (ATmega328P)

  7. EEPROM: 1 KB (ATmega328P)

  8. Clock Frequency: 16 MHz

  9. Digital I/O Pins: 8

  10. PWM Digital I/O Pins: 4 (D3, D9, D10, D11)

  11. Analog Input Pins: 4

  12. Output current: 1.2A single-channel continuous drive current

  13. Start / Peak Current: 2A (continuous pulse) / 3.2A (single pulse)

  14. Motor Drive Pins: D4, D5, D6, D7

  15. microUSB connector

  16. 2x2A H-bridge motor driver

  17. Size: 45x38.5mm



Documents



Shipping List

  1. Romeo BLE mini V2.0 x1



ARD02043
