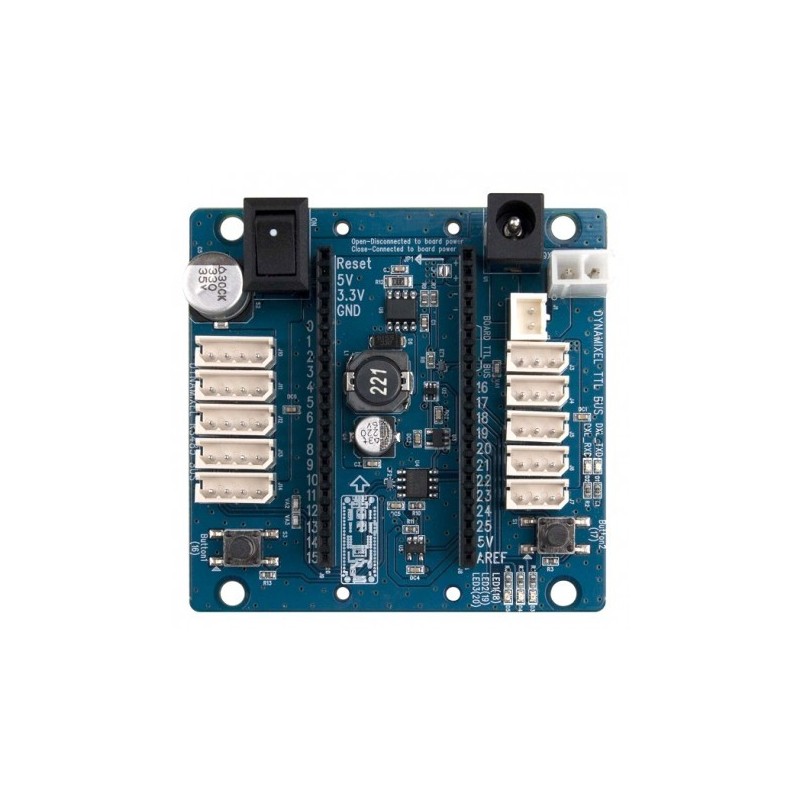

Placa expansão - OpenCM 485

: MOT01019
39,90 €
preço com IVA incluído
  • The OpenCM 485 Expansion Board connects to the OpenCM9.04 controller to connect Dynamixels that support RS-485 and TTL.

  •  Battery connectors for batteries such as LIPO and Li-ion can be connected, and SMPS connector can be connected as well.

  • Has a wide range of input voltage to connect various Dynamixels.

Quantidade
Últimos artigos em stock

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.




The OpenCM9.04 board is required in order to use the 485 Expansion Board.
 Please purchase the OpenCM9.04 board separately.

The OpenCM9.04 board is required in order to use the 485 Expansion Board.
 Please purchase the OpenCM9.04 board separately.




[902-0084-050] OpenCM 485 Expansion Board



■ Basic Components

Components

Quantity

B/D

OpenCM 485 Expansion Board

1



■ Hardware Specifications

Size

68 mm X 66.5 mm x 16 mm

Weight

32 g

Input Voltage

5~30V

Power

SMPS, LIPO, DXL PRO 24V

Power Switch

1

DYNAMIXEL Port

4Pin x 5, 3Pin x 5

Button

2개

LED

5개



■ Compatible Products

  • Controller : OpenCM9.04-A/B

  • Dynamixel : All products
  • External Sensor : Sensors sold from ROBOTIS



■ Caution

  • Please read the e-Manual before usage to correctly use the OpenCM 485 Expansion Board.
  • ROBOTIS OpenCM IDE V 1.0.1 or higher must be used.




[Link to e-Manual]
