Veyron Driver para 2 motores DC c/ escovas até 25A

INTRODUCTION

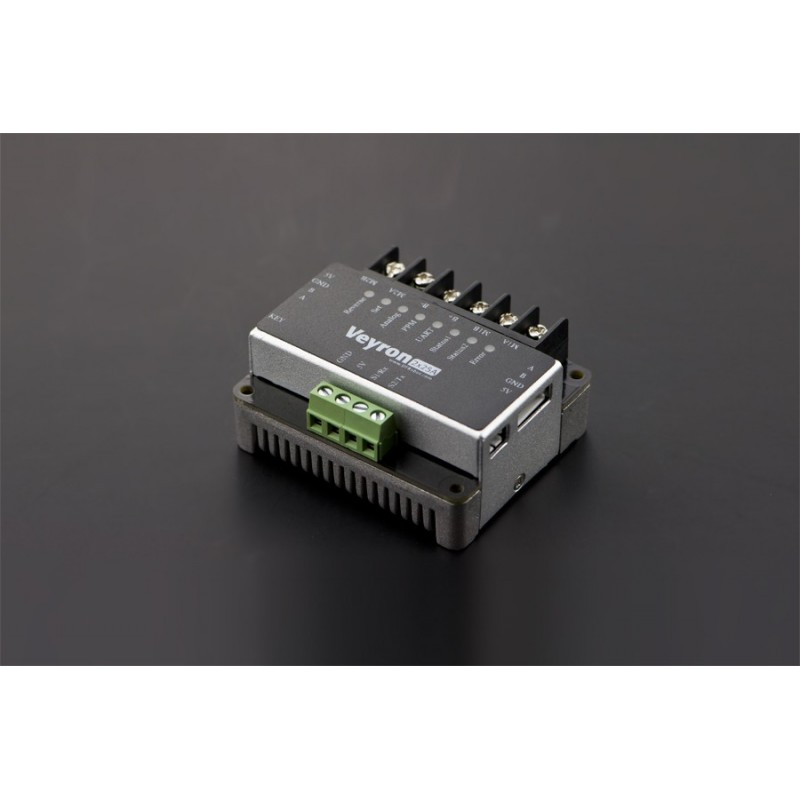

This Veyron 2x25A is a high-quality, heavy-duty Brushed DC Motor Driver which contains 3 intelligent interface modes: Analog, PPM and UART mode. It also has premium features like under-voltage protection, over-voltage protection, under-current protection, over-current protection, over-heating protection, short circuit protection and reverse voltage protection. In addtion to its industrial level functions, Veyron 2x25A Brushed DC Motor Driver is also easy to use: users can switch between tnterfaces, open/closed loop system auto recognition, PID parameter self-tuning, etc. with just one button. We developed "Veyron" series to be a better choice for you when choosing from high performance motor drivers: whether for poduct research and development, scientific research, education, or prototyping, "Veyron" series can always get the job done.

FEATURES

• Closed-loop Speed Control with self-tuning PID algorithm
• One Key Switch: Switch between Analog, PPM and UART mode with open loop/closed loop speed control.
• Multiple-Parameter Setting: such as PPM time length, UART baud rate, unidirectional rotation, maximum current setting, plus/minus speed settings, etc.
• Light Indicator for Status/fault Diagnosis
• Intelligent Motor Protection: Reverse protection, custom under-voltage over-voltage protection, over-current protection, over temperature protection, effective signal monitoring, etc.
• Built-in PID Speed Control
• Set ID for Parallel Control
• Zero Signal Monitoring
• Synchronous Asynchronous Speed Setting
• Fan Control Interface Available

APPLICATIONS

• 4WDs, Self-balancing Robots, RoboWar, Field Robots
• High Power Motors such as Conveyor Belts, Water Pumps
• Frequent Change in Motor Speed and Directions
• LED Strip, Fan Controlling

DOCUMENTS

• Wiki Doc
• DF_Veyron_Library
• User Manual

SHIPPING LIST

• Veyron 2x25A Brushed DC Motor Driver x1
• Cables x1
