Shield CAN-BUS MCP2515 com leitor de Cartões uSD para Arduino - Keyestudio KS0411

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

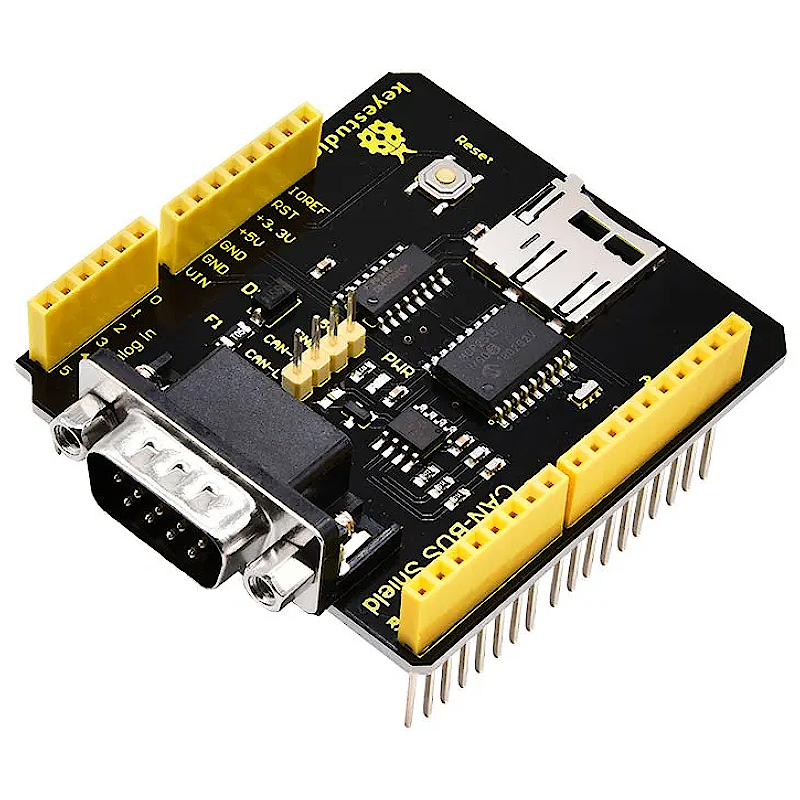

keyestudio CAN-BUS Shield is particularly designed for Arduino controllers.
The onboard BUS control chip can realize the data control on the CAN bus and data communication between devices.
It is compatible with the Arduino UNO standard interface; can be perfectly adapted to the main control boards such as Arduino UNO and Leonardo.As shown below.

The shield provides a DB9 connector, so you can choose the interface according to your needs.
It also comes with MicroSD card slot, so you can directly insert MicroSD card to store data.
A variety of expansion interfaces allow users to get more convenience in the DIY process.

Technical Parameters

1. Operating voltage: DC5V

2. Chip: MCP2515

3. Dimensions: 66mm*54mm*28mm

4. Weight: 24g

5. Environmental attribute: ROHS

Features

1. Support standard frame, extended frame of transmission and reception; support two receiving methods: Polling and interrupt

2. Provide various interfaces, such as uart, I2C, DB9 connector, etc.

3. Support SD card data storage

4. Support power supply via Arduino motherboard or DB9 connector
