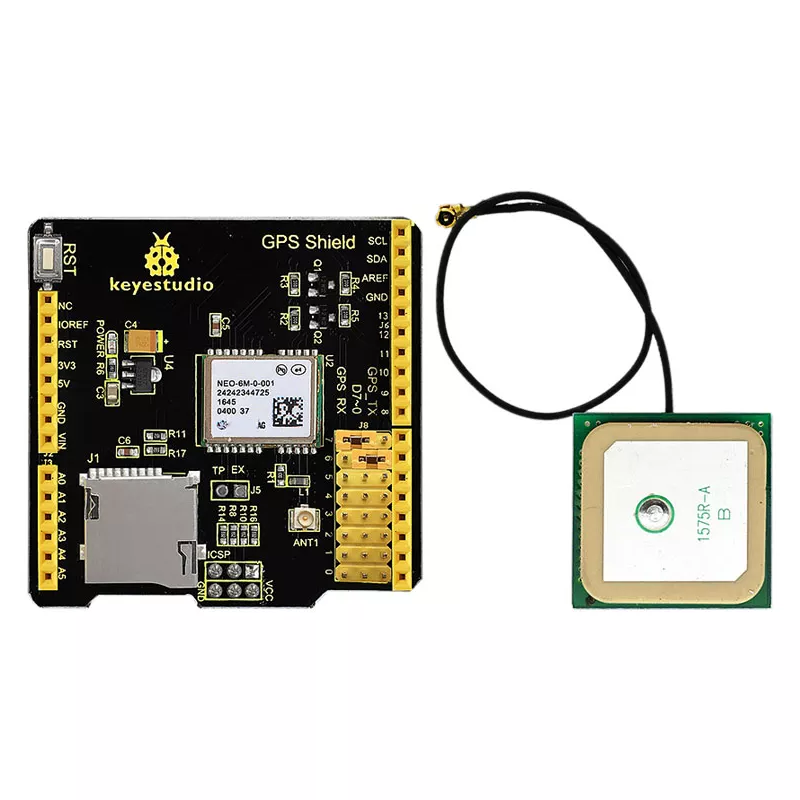

Shield GPS NEO-6M com Antena para Arduino - Keyestudio KS0253

: ARD03190
26,80 €
preço com IVA incluído

Este Shield GPS baseia-se no módulo GPS NEIO-6 u blox 6 e é compátivel com as placa controladoras Arduino UNO R3 e Arduino MEGA 2560. Este módulo tem uma antena que pode ser conectada ao Shield, o que permite saber a sua localização exata e ainda consegue fornecer um tempo bastante preciso.

Se quiseres saber mais sobre este produto, consulta a sua Wiki Page.

Quantidade
Últimos artigos em stock

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description:

In life, it is becoming more and more popular to use GPS positioning. As for arduino MCU DIY experiments, is there a GPS positioning shield that can be compatible with the Arduino MCU?
Well, use this keyestudio GPS shield. It is based on the NEO-6M-0-001 module, and those pins are also compatible with UNO R3 and MEGA 2560 control board.
Regular GPS pins (RX, TX) is connected to Arduino D0-D7, and you are able to set the connection pin via the jumper cap.
An active antenna is mounted on the GPS shield, allowing you to find your exact location within a few meters. Meanwhile, GPS also provides you with very accurate time!
It can be used in car navigation, personal positioning, fleet management, navigation and navigation.
In particular, this expansion board can only be positioned outdoors and cannot be used for indoor positioning.



Features:

  1. Using an active GPS antenna

  2. Connecting TxD and RxD to Arduino pins (D0-D8 optional) with jumper, and the default jumper caps are D7<-->RX and D6<-->TX.

  3. Onboard comes with a SD card socket

  4. Comes with an ICSP pin

  5. Comes with a reset button to reset the Arduino control board

  6. GPS shield dimensions: 54mm*53mm*24mm

  7. Antenna dimensions: 28mm*28mm*7mm

  8. Antenna lead length: 142mm

  9. Weight: 32g



Documents:

Wiki Page
