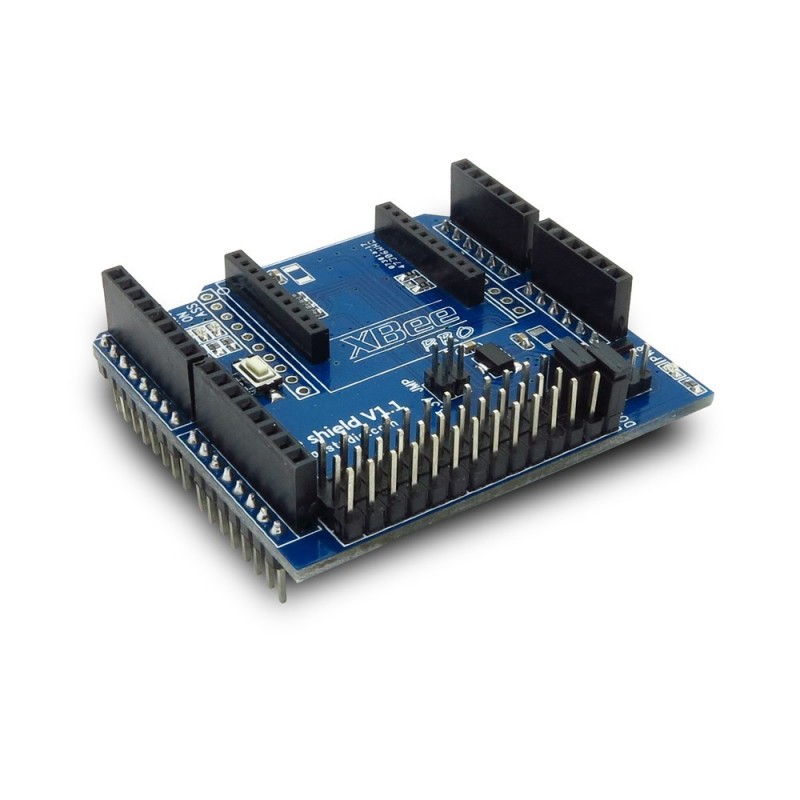

Shield Xbee - ITEAD

: ARD03095
7,90 €
preço com IVA incluído

O Shield XBee é o aprimoramento do breakout board para Arduino da série ZigBee XBee, podendo ser ligado diretamente ao Arduino, utilizando qualquer pino da placa para se ligar à porta série do modulo XBee.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos

Overview

The XBee Shield simplifies the task of interfacing an XBee with your Arduino. This board mates directly with an Arduino Pro or USB board, and equips it with wireless communication capabilities using the popular XBee module. This unit works with all XBee modules including the Series 1 and Series 2 (and 2.5), standard and Pro version.

Features

  • Double shield interfaces compatible with Arduino for easy cascading
  • 3 indicator (ON/SLEEP, RSSI, ASS)* LED for XBee
  • Provide maximal 500mA under 3.3V
  • Full 2.54mm break out for XBee
  • Switchable of communication with FTDI-USB or Arduino with HardwareSerial or SoftwareSerial

*RSSI: Receiver Signal Strength Indication
*ASS : Association

Documents

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents by correcting the errors, adding more demo codes or tutorials.



Version 1.1
Compatible Mainboard
  • Leaf maple
  • Arduino Deumlanove/UNO
  • Arduino MEGA
  • ChipKit MAX32
  • ChipKit UNO32
  • FEZ Panda II
  • Freeduino
  • Iteadmaple
  • Iteaduino
  • Iteaduino ADK
  • Iteaduino MEGA 2560
  • Simple Cortex
  • Seeeduino
  • Seeduino MEGA
Shield Functions Adapter
Board Size 55mm x 59mm
Operation Level
  • Digital 3.3V
  • Digital 5V
Stackable No
Model IM120417004
Accessories No
Weight 35.0000
ARD03095
