ITEAD GPS shield

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos

Overview

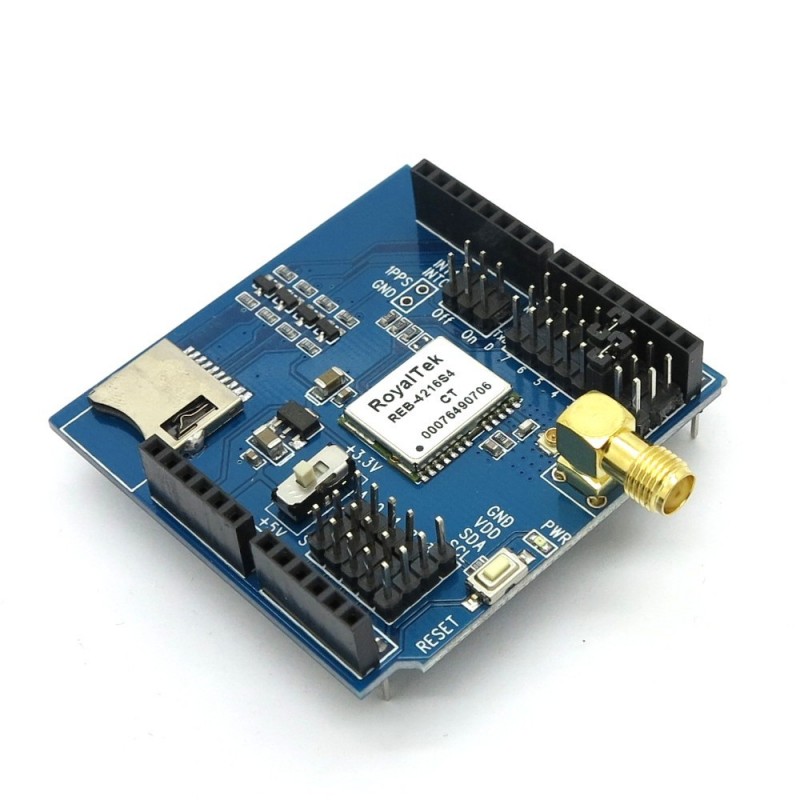

It's based on RoyalTek REB-4216 GPS module, and the footprints is compatible with Arduino/MEGA boards. The regular GPS pins (RX, TX) can be connected to D0-D7 of Arduino.

Adding GPS to your Arduino has never been easier. Multiple GPS receivers attach easily to the shield, and with the example sketch (check below), you will be able to locate your exact position within a few meters. Here's where we are. GPS also gives you amazingly accurate time!  It’s suitable for the following applications with Arduino or Arduino compatible boards :

• Automotive navigation

• Personal positioning

• Fleet management

• Marine navigation

Features

• With Micro SD interface

• RP-SMA Active  antenna  design with  high  receive  sensitivity,  compatible normal antenna (antenna not included)

• Extremely fast time to first fix at low signal level

• UART interface

• Operation temperature: -40℃ ~ +85℃

Documents

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents by correcting the errors, adding more demo codes or tutorials.

Demo Code

• DC_gps_logger.zip

Datasheet

• DS_IM120417017_ArduinoGPSshield.pdf

Software

• SF_u-center_5.07_Installer.zip

Schematic

• SCH_IM120417017_ArduinoGPSshield.pdf

Manual

• REB_4216_operational_manual_v0.55_20120912.pdf

Useful Links

• by troyka_4484 <Additional data on the GPS shield>

• by Garry <Iteaduino MEGA 2560 + GPS shield to make a logger>

• <New Years Countdown Clock With SMS Display>

• by David Houlding <GPS Location Sensing with the ITEAD GPS Shield and Arduino Uno>

• ITEAD GPS Shield by powellbob424

This demo shows use of logging GPS data to an SD Card for later review.
