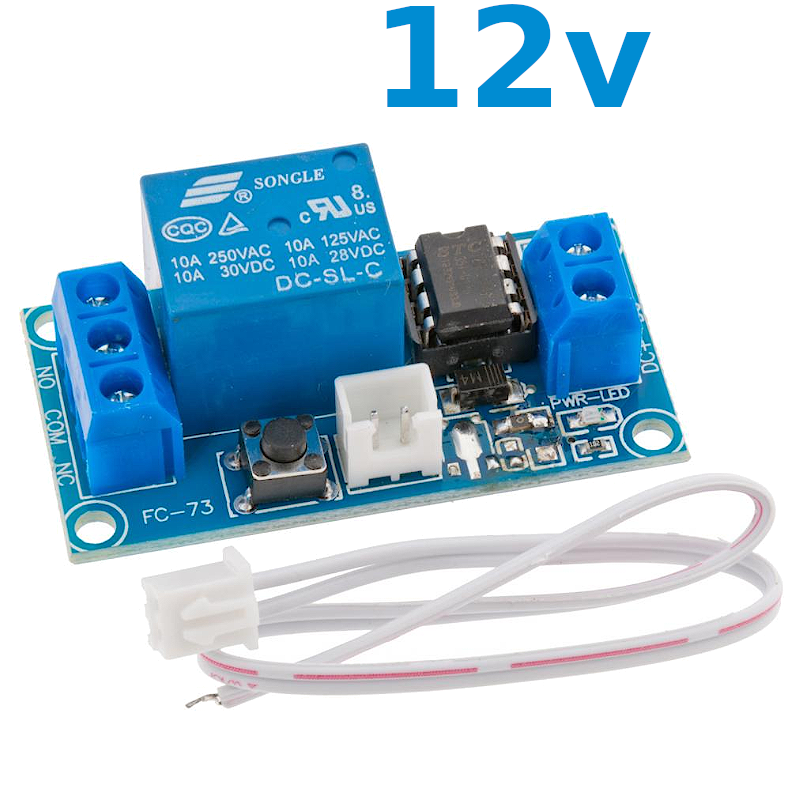

Modulo de Relé Biestável 10A 12V

: MRE02017
4,95 €
preço com IVA incluído

Módulo de relé com relé unipolar de saída Normalmente Aberta (NO) e Normalmente Fechada (NC) (SPDT) que pode ser operado com sinal momentâneo. O relé pode ser ativado através do botão integrado ou de um interruptor externo. Está incluído um cabo de 200 mm para utilização com botão externo.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Manufacturer information:

  • The power required by the by -line diagram , is not reversed , although the protection circuit , but not for a long time reversed
  • Product regulator slight fever is a normal phenomenon , long working hours have a normal relay heat phenomena are normal
  • Relay load power to give leave some margin should avoid high-power ( about 2000W) and long working environment , there will be some impact on the life of the product

 Features:

  • Double panel design PCB;
  • Chips made using stable and reliable control , stable and reliable performance , strong anti-interference , not false triggering , performance is superior than the CD4013 ;
  • Regulator has the power to provide adequate and stable voltage , and have enough vents to ensure stable and reliable product to work for a long time
  • With anti- reverse protection diode power , reverse power for a short time without any damage to the product ;
  • Use relay control load in 250V 10A ( AC ) and 30V 10A ( DC ) under load can withstand ;
  • Has a touch switch as product testing , stability testing of products directly ;
  • Can also trigger an external trigger switch , the products have a connection with a good seat and lead , more convenient to use ;
  • Triggering sensor module can also be used to do other triggers , are valid as long as the trigger is low , there are more functional expansion;

Note: DC voltage input voltage to match the voltage relay, the relay must not exceed the voltage range, otherwise it will burn module

  • Size:(L*W*H)5.00*2.60*1.75cm

Parameters :

  • Supply Voltage :12V (DC)
  • Supply current : more than 100mA
  • Load : 250V 10A (AC) or 30V 10A (DC)

Usage:

  • Press the trigger button , the relay is locked , press again , the relay off , you can also add the trigger switch , and the use of low-level trigger .
  • Control appliances , home of various lighting control, factory equipment control , current control for a variety of small high-voltage power control products .

Package includes:

  • 1Pc x1 Channel Self-locking Relay Module
  • 1pc× Trigger Line
MRE02017
