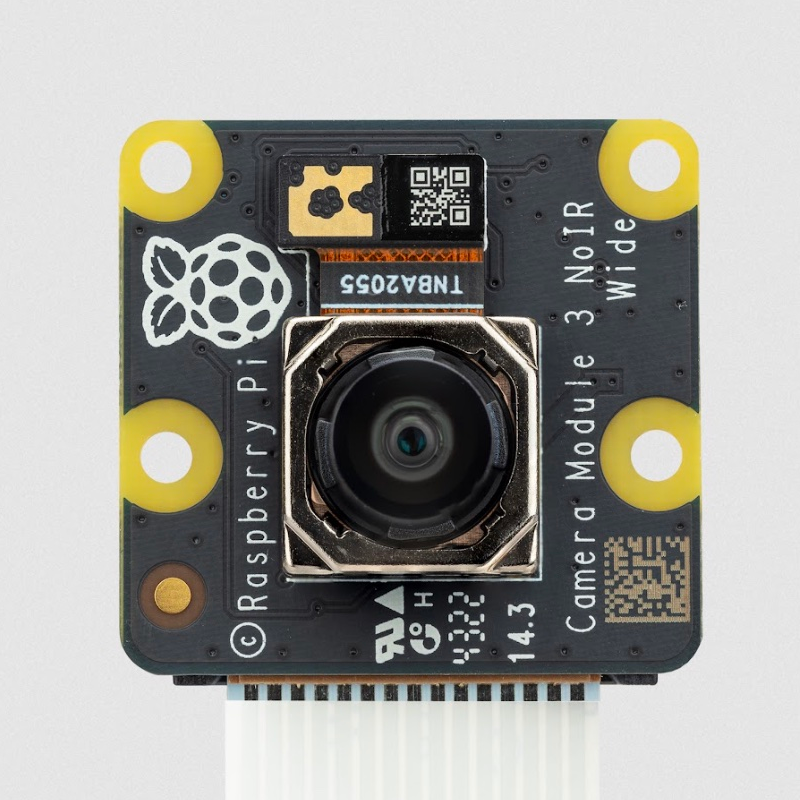

Módulo de câmara V3 Oficial Raspberry Pi sem filtro IR (NOIR) - 12MP 120°

: PCO01186
42,70 €
preço com IVA incluído

O Raspberry Pi Camera Module 3 é a nova câmera compacta da Raspberry Pi. Possui um sensor IMX708 com 12 megapixels e HDR, além de foco automático com detecção de fase.

Esta camara é a versão NoIR, ou seja não tem filtro infravermelho, o que a torna perfeita para fotografar ou gravar em abientes com pouca luz.

Esta camâra é a versão de 120º, se quiseres a versão de 76º, clica aqui.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

The Raspberry Pi Camera Module 3 NoIR is the latest entry in the Official Raspberry Pi range of camera modules, offering a new 12 Megapixel Sony IMX708 image sensor, powered autofocus, improved low-light sensitivity and HDR (High Dynamic Range) support!

This NoIR version is infrared-sensitive with no InfraRed (NoIR) filter on the lens, which makes it perfect for shooting Infrared photography and taking pictures/video in low light (twilight) environments. For night photography, you'll need to flood the target with infrared light.

The new Camera Module 3 NoIr is available with a wide-angle 120° (The Standard NoIR Camera Is 76º), giving you more options for your specific project needs. We also have a standard version which is better suited for daylight photography.



Compatibility (Important!)

Accessories

  1. The Camera Module 3 is mechanically identical to the previous Camera Module V2 apart from the front sensor section. The new sensor is larger and may not fit all previous camera accessories

  2. We are in the process of updating each camera accessory in the store to indicate compatibility within the product descriptions

Software

  1. The Camera Module 3 can only be used with libcamera - the previous raspistill/raspivid libraries will not work

  2. You will need to update Raspberry Pi OS as the Camera Module 3 requires a new driver and a specific version of libcamera

Boards

  1. The Camera Module 3 is compatible with all Raspberry Pi boards with a camera connector (CSI connector)

  2. To use this camera with a Raspberry Pi Zero (which has a smaller connector), you will need to use an adapter cable



Features

  1. Back-illuminated and stacked CMOS 12-megapixel image sensor (Sony IMX708)

  2. High signal-to-noise ratio (SNR)

  3. Built-in 2D Dynamic Defect Pixel Correction (DPC)

  4. Phase Detection Autofocus (PDAF) for rapid autofocus

  5. QBC Re-mosaic function

  6. HDR mode (up to 3-megapixel output)

  7. CSI-2 serial data output

  8. 2-wire serial communication (supports I2C fast mode and fast-mode plus)

  9. 2-wire serial control of focus mechanism



Specifications

  1. Sensor: Sony IMX708

  2. Resolution: 11.9 megapixels

  3. Sensor size: 7.4mm sensor diagonal

  4. Pixel size: 1.4μm × 1.4μm

  5. Horizontal/vertical: 4608 × 2592 pixels

  6. Common video modes: 1080p50, 720p100, 480p120

  7. Output: RAW10

  8. IR cut filter: Not present (NoIR)

  9. Autofocus system: Phase Detection Autofocus

  10. Dimensions: 25 × 24 × 11.5mm (12.4mm height for Wide variants)

  11. Ribbon cable length: 150mm

  12. Cable connector: 15 × 1mm FPC

  13. Compliance:

    • FCC 47 CFR Part 15, Subpart B, Class B Digital Device

    • Electromagnetic Compatibility Directive (EMC) 2014/30/EU

    • Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU

  14. Production lifetime: Raspberry Pi Camera Module 3 will remain in production until at least January 2030



Lens Specifications

Wide

  1. Effective focal length 2.75mm

  2. f/2.2

  3. Diagonal field of view 120 degrees (at 16:9)

  4. 35mm equivalent focal length roughly 16mm (full width) - 18mm (3:2 crop)

  5. Focus 5cm - infinity



Package Contents

  1. 1x Raspberry Pi Camera Module 3 NoIR Wide.

  2. 1x 150mm camera ribbon cable (fitted to the camera module)



Resources

  1. Product Brief

  2. Raspberry Pi Camera Information Page

  3. Libcamera information page

  4. Installing a Raspberry Pi Camera
