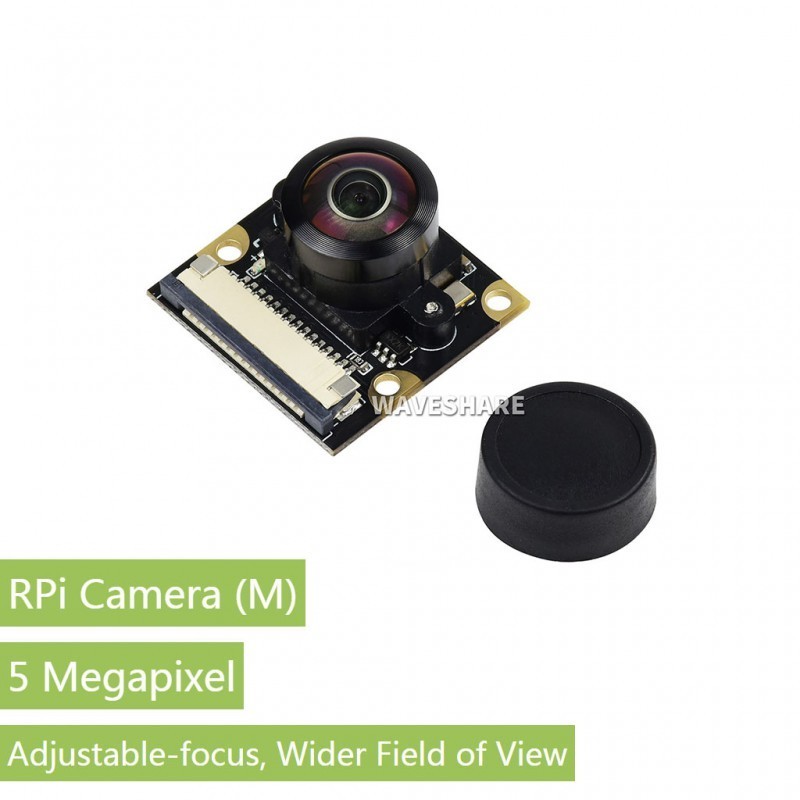

RPi Camera (M), Lente olho de peixe 200º c/ ajuste de foco

: PCO01133
34,95 €
preço com IVA incluído
Quantidade

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Features

  • Raspberry Pi Camera, supports all revisions of the Pi
  • Fisheye Lens, offers wider field of view
  • 5 megapixel OV5647 sensor
  • Adjustable focus distance
  • Camera specifications
    • CCD size : 1/4inch
    • Focal Length : 0.87mm
    • Angle of View (diagonal) : 200 degrees (while other normal cameras are typically 72 degree)
    • Sensor best resolution : 1080p
  • 4 screw holes
    • Used for attachment
    • Provides 3.3V power output
    • Supports connecting fill flash LED
  • 2592 × 1944 still picture resolution
  • Support 1080p30, 720p60 and 640x480p60/90 video record
  • Dimension: 25mm x 24mm

Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable

Development Resources

Wiki : www.waveshare.com/wiki/RPi_Camera_(M)

Selection Guide

PARTNUMBER PIXELS SENSOR ADJUSTABLE FOCUS DISTANCE INFRARED NIGHT VISION ANGLE OF VIEW (DIAGONAL) (DEGREE) MANUFACTURER DIMENSIONS (MM) RECOMMENDATION1
RPi Camera V2 8 Mega IMX219 × × 62.2 element14 25x24x9 ★★★☆
RPi NoIR Camera V2 8 Mega IMX219 × √ 62.2 element14 25x24x9 ★★★☆
RPi Camera (B) 5 Mega OV5647 √ × 60.6 Waveshare 32x32 ★★★
RPi Camera (D) 5 Mega OV5647 × × 66 Waveshare 25x24x9 ★★
RPi Camera (E) 5 Mega OV5647 × √ 69.1 Waveshare 25x24x6 ★★
RPi Camera (F) 5 Mega OV5647 √ √ 75 Waveshare 25x24 ★★★★
RPi Camera (G) 5 Mega OV5647 √ × 160 Waveshare 25x24 ★★★★
RPi Camera (H) 5 Mega OV5647 √ √ 160 Waveshare 25x24 ★★★★
RPi Camera (I) 5 Mega OV5647 √ × 170 Waveshare 32x32 ★★★
RPi Camera (M) 5 Mega OV5647 √ × 200 Waveshare 25x24 ★★★☆
RPi IR-CUT Camera2 5 Mega OV5647 √ √ 75.7 Waveshare 31x32 ★★★★
RPi IR-CUT Camera (B)2 5 Mega OV5647 √ √ 40 Waveshare 31x32 ★★★★
RPi Zero V1.3 Camera3 5 Mega OV5647 × × 69.1 Waveshare 60x11.5x5 ★★★
RPi FPC Camera 5 Mega OV5647 × × 72 Waveshare 300x16x5 ★★★
  1. The recommendation is considered from sales report and cost performance.
  2. While normal IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, the RPi IR-CUT Camera can take better pictures in correct color by daylight, and still features the ability to see in the dark.
  3. RPi Zero V1.3 Camera supports only Raspberry Pi Zero V1.3, Raspberry Pi Zero W, and Raspberry Pi Zero WH

Package Content

Weight: 0.017 kg

The included FFC is 16cm, if you need a longer cable, please consider: RPi Camera Cable 60cm

  1. RPi Camera (M) x1
  2. 15-pin FFC (opposite sides contact) x1

1RPi-Camera-M-1_93.jpg  2RPi-Camera-FFC_93.jpg
