Argon ONE V3 - Caixa para a Raspberry Pi 5 com Expansão M.2 NVME PCIE

: PCO01204
62,50 €
preço com IVA incluído

Uma caixa em alumínio para proteger a tua Raspberry Pi 5! Tem um PCB integrado com ventoinha e disponibiliza todas as entradas de periféricos do mesmo lado. Aliado a estas funcionalidades, esta caixa também disponibiliza um espaço para colocares um SSD M.2!

NOTA: Raspberry Pi não incluída.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Documents:

Argon ONE V3 - User Manual



PI5-CASE-ARGON-ONE Aluminum Alloy Case, features



Decent looking, stunning aesthetics

Adopts Black ABS Bottom Case with Black Aluminum Top Cover, Simple & Nice Looking

PI5-CASE-ARGON-ONE Aluminum Alloy Case, Simple & Nice Looking



Precise Opening Design

Reversed GPIO Slot And Openings For Sorts Of Connectors, With Clear Labels

PI5-CASE-ARGON-ONE Aluminum Alloy Case, precise openings



"ALWAYS ON" Feature

Automatically Starting The Pi On Power-Up, Enabled Via Jumper

PI5-CASE-ARGON-ONE Aluminum Alloy Case with ALWAYS ON function

Active + Passive cooling

The whole case top acts as a passive cooling for the Raspberry Pi, combined with the included cooling fan and multiple airflow vents, brings excellent cooling effect

PI5-CASE-ARGON-ONE, inside view, with excellent cooling effect



Reserved DAC expansion board header

Supports connecting with DAC expansion board to activate 3.5mm Audio Jack for Raspberry Pi 5

* Note: the DAC board is not included, please purchase separately

PI5-CASE-ARGON-ONE, with reserved DAC expansion board header

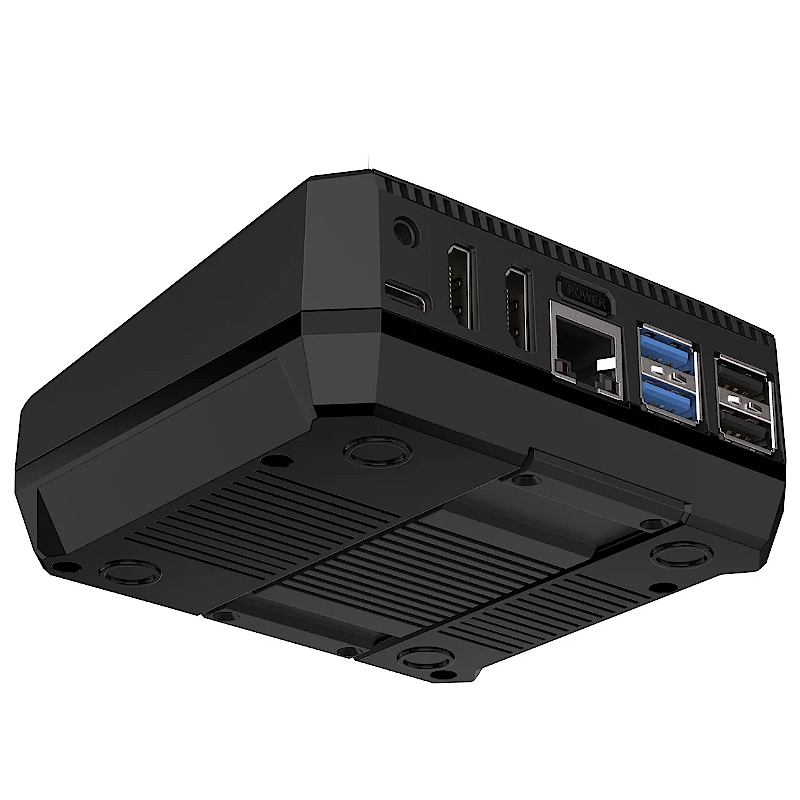

Neat Cable Management

All Of The Ports Are Accessed At The Back, Minimal Cable Clutter

* Note: the DAC board is required to activate 3.5mm Audio Jack

PI5-CASE-ARGON-ONE, Interface Introduction





Safe & Handy Power Button

Combined With One-Line Script To Turn The Computer On / Off While Ensuring The Stored Files Are Safe, Also Supports Customized Function

PI5-CASE-ARGON-ONE, power button introduction



Dedicated PCIe To M.2 Expansion Board

Reserved M.2 NVME Solid State Drive slot, with Built-in Heatsink

PI5-CASE-ARGON-ONE-M.2 with dedicated PCIe To M.2 expansion board



Easy assembly

Just a few steps to go, No Messy Wiring, No Wrong Connection, More Stable, More Safe

PI5-CASE-ARGON-ONE assembly instruction

PI5-CASE-ARGON-ONE-M.2 assembly instruction

NOTE:* for reference only, the Raspberry Pi 5 and M.2 Solid State Drive are not included.



Outline Dimensions

PI5-CASE-ARGON-ONE-M.2 Outline Dimensions


Package Content

  1. Metal case (with built-in cooling fan) x1

  2. PCIe cable 2PCS x1

  3. Thermal pad 2PCS x1

  4. Nonskid feet 4PCS x1

  5. Spare PCIe connector cover x1

  6. Screws pack x1

PI5-CASE-ARGON-ONE-M.2

PCO01204
