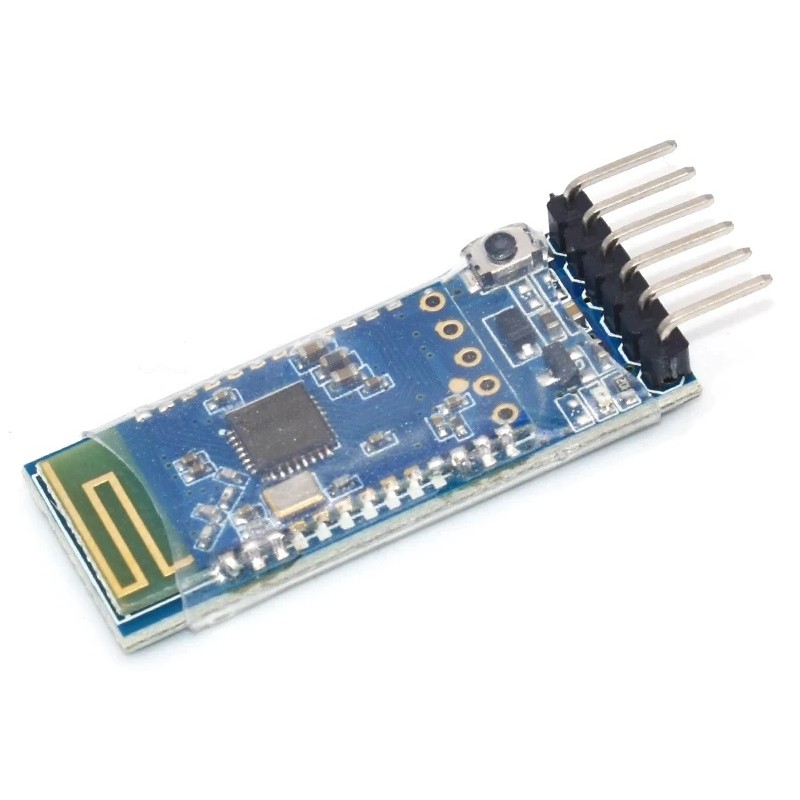

JDY-24M Módulo Bluetooth 5.0 BLE iBeacon MESH Zigbee - 6 Pinos

Referência : COM01026

5,50 €

preço com IVA incluído

Este módulo Bluetooth 5.0 suporta comunicações Master / Slave em simultâneo de forma transparente, suporta modo IBeacon com modo de funcionamento ultra-low power, função BLE Bluetooth probe, detecção IBeacon e MESH network.

A comunicação Bluetooth está melhor que nunca! Agora a combinar todas as funcionalidades da comunicação bluetooth e ainda acrescentar as vantagens da comunicação Zigbee e mais algumas funcionalidades, caminhamos para um desenvolvimento de aplicações sem fios mais simples e de baixo custo.

As aplicações destes módulos são infindáveis, só temos que dar asas à nossa imaginação e o céu é o limite!

Descrição
Anexos

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

This JDY-24M super Bluetooth 5.0 Module supports master-slave transparent transmission, lBeacon, BLE probe, lBeacon detection, and MESH network.

The maximum number of MESH network supports 65280 device network. Multi-hop wireless anti-collision technology is adopted. The network communication speed supports 50ms to send 16 byte data. The single module supports routing node and terminal node. The routing node supports data relay (low power consumption is not supported). The terminal node supports low power consumption (automatic sleep after key wake-up and data sending), JDY-24M network generally only needs to be configured with network NETID and short address, and the module will automatically network. When the network module communicates with APP, it is equivalent to transparent transmission, which greatly convenient for users to developAPP compatible with old products APP.

Features:

Support data transparent transmission with mobile phone (IOS, Android)APP (working current about 1mA)
Support module and module master slave high speed transparent transmission
Support lBeacon function (ultra-low power consumption)
Support lBeaconprobe function
Support BLE Bluetooth probe function
Multi-connected slave mode is supported. Multi-connected slave can connect with multiple mobile phones and transparent transmission at the same time.
Support Bluetooth MESH network (Network serial port data communication, output IO control, input key control)
MESH network data sending supports response and no response communication
Network remote control
Multi-connected master-slave mixed connection (the master is connected to the slave at the same time, and the slave is connected to the mobile phone at the same time, and work at the same time)

Applications:

Bluetooth network LED (one-to-many, many-to-one, mobile phone or remote controller control, many-to-many control)
Bluetooth network serial port communication application (one-to-many, many-to-one, mobile phone or remote controller control, many-to-many control)
Network panel switch, 86 switch (ultra-low power consumption)
Network smart home application (switch, relay, curtain) control
Network sensor application
WIFI network gateway application
ZlGbee network application
Mobile network control application
Key label

Technical specifications:

Type		Specification parameter
Working voltage		3.6 ~ 6Vdc
Working temperature		-40 ~ 85°C
Maximum transmitting power		+4dbm
Communicalion distance		80m
Bluetooth version		BLH5.0
Antenna		PCB board antenna
Antenna gain		-3dbi
Receiving sensitivity		-96dbm
SMT welding temperature		<260*C
Communication interface		UART
Module size		27mm * 12.88mm * 1.6mm
Communication speed between slave and APP		8k(byte/s)
MESH communication speed		50ms send 16bvte
Average current	Wake up (transparent transmission) current in non MESH mode	About 1mA
	Light sleep of slave with broadcast in non MESH mode	Within 200uA (related to broadcasting interval)
	Wake up communication current in MESH mode	About 4mA
	Sleep current in MESH mode	3uA
	Deep Sleep Mode	3uA
