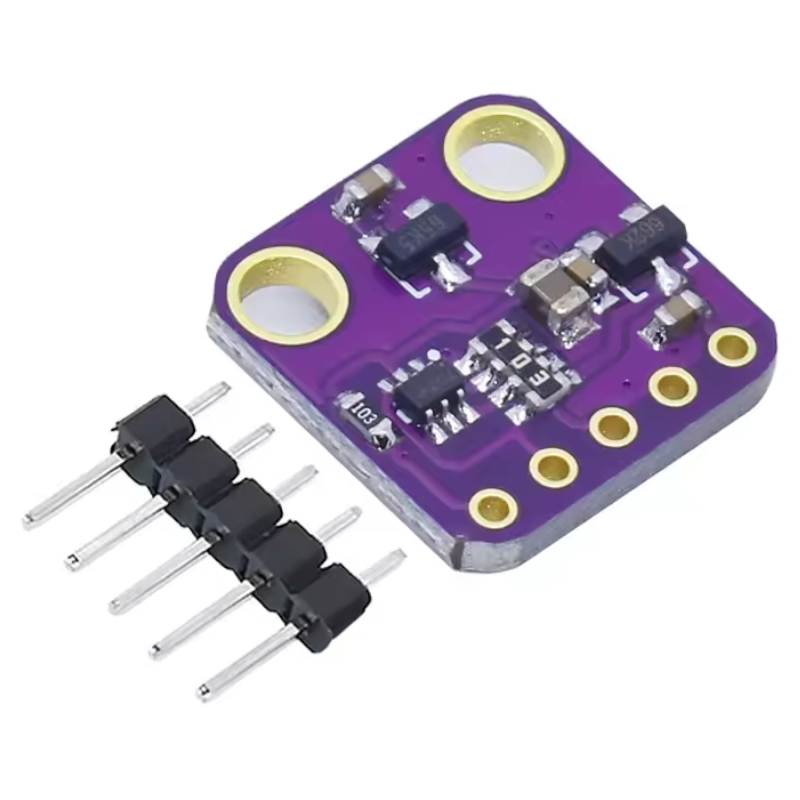

Módulo Sensor de frequência cardíaca MAX30100 - pulsação

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Key Features:

1. Sensor: MAX30100

2. Functions: Measures heart rate and blood oxygen saturation (SpO2)

3. Interface: I²C communication

4. Operating Voltage: 1.8V to 3.3V

5. Power Consumption: Low power consumption suitable for battery-operated devices

6. On-Board LEDs: Red and IR LEDs for optical measurements

7. Built-in Photodetector: For detecting light reflected from the skin

Technical Specifications:

1. Operating Voltage: 1.8V to 3.3V

2. Current Consumption: 0.2 mA (typical)

3. Communication Interface: I²C

4. Heart Rate Measurement Range: 30 bpm to 240 bpm

5. SpO2 Measurement Range: 0% to 100%

6. LED Wavelengths: Red (660 nm) and IR (940 nm)

7. Resolution: 16-bit ADC for precise measurements

8. Package: Typically comes as a small module with pin header

Documents

1. Datasheet
