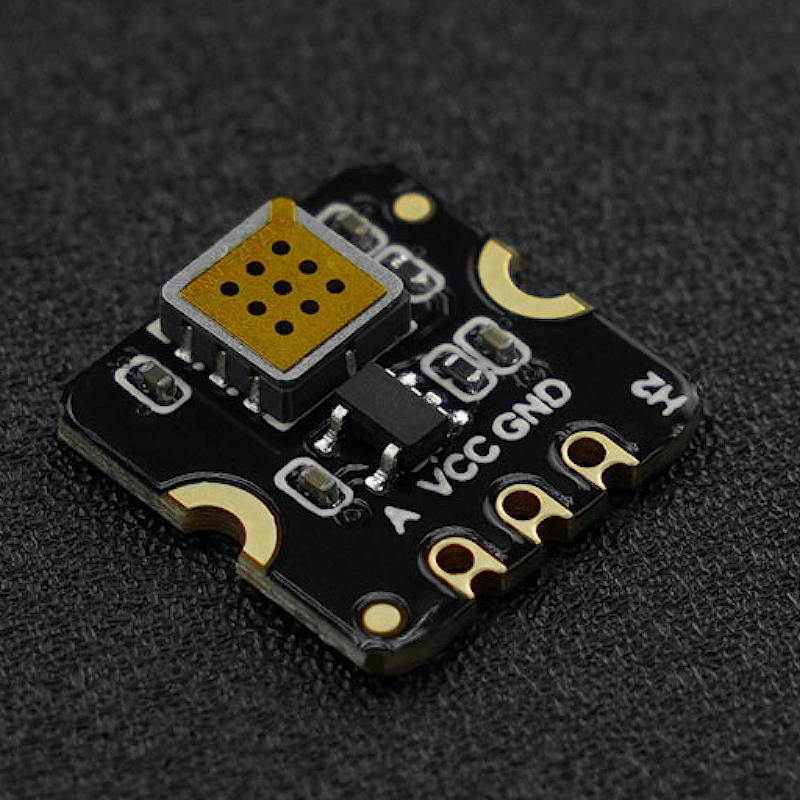

Sensor Analógico compacto MEMS de Hidrogénio H2 (Breakout, 0.1-1000ppm) - DFRobot SEN0572

: SEN08094
18,50 €
preço com IVA incluído

Este sensor de hidrogénio utiliza a tecnologia micro electromecânica (MEMS), fazendo assim com que este produto tenha umas dimensões muito reduzidas e um baixo consumo de energia. Para além disso, este sensor pode medir qualitativamente a concentração de H2 e poderá ser usado para a deteção de fugas de hidrogénio e outras aplicações.

Se quiseres obter mais informações sobre este produto, incluindo códigos de exemplo, consulta a sua Wiki Page.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

Fermion: MEMS H2 sensor employs state-of-the-art micro-electromechanical system (MEMS) technology, endowing the sensor with compact dimensions (13x13x2.5mm), low power consumption (＜20mA), minimal heat generation, short preheating time, and swift response recovery. The sensor can measure the concentration of hydrogen gas qualitatively. It is suitable for the hydrogen leakage alarm and other application scenarios.

The MEMS series currently encompasses 11 different types of gas sensors (HCHO, CO, CH4, VOC, NH3, H2S, EtOH, Smoke, Odor, H2, NO2), which can be combined as per specific requirements.

Please note: This sensor is capable of only qualitative measurements. For quantitative measurements, kindly consider purchasing the Gravity: Factory Calibrated Electrochemical Gas Sensor Series.

Wiring Diagram of Fermion: MEMS H2 Sensor and Arduino UNO

Figure: Wiring Diagram of Fermion: MEMS H2 Sensor and Arduino UNO



Precautions for use

  1. Kindly remove the protective film before usage.

  2. To prevent exposure to volatile silicon compounds vapors (such as silicone adhesive, hair gel, silicone rubber, or other locations where volatile silicon compounds are present).

  3. Avoid exposure to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.).

  4. Prevent contamination from alkalis, alkali metal salts, and halogens.

  5. Refrain from prolonged exposure to extreme environments (such as high temperatures, high humidity, high pollution).

  6. Avoid contact with water, condensation, and freezing.

  7. Minimize excessive vibration, impact, and dropping.

  8. Please refrain from employing this module in systems that involve personal safety concerns.

  9. For extended periods of non-usage, it is advisable to preheat the module for at least 24 hours.



Features

  1. Compact size, measuring only 13*13*2.5mm

  2. Low power consumption, operating current ＜20mA

  3. High sensitivity and rapid response recovery

  4. Advanced MEMS technology



Applications

  1. Air quality monitoring: measures the level of H2 and other pollutants in the ambient air.

  2. Automotive emission control: monitors the H2 emission from fuel cell vehicles and adjusts the fuel cell operation to optimize the performance and efficiency.

  3. Industrial safety: detects the leakage or exposure of H2 and other flammable gases in industrial processes or workplaces.



Specification

  1. Gas detected: Hydrogen (H2)

  2. Detection range: 0.1-1000ppm

  3. Operating voltage: 3.3-5V

  4. Operating current: ＜20mA

  5. Output signal: Analog voltage

  6. Sensitivity: R0(in air)/Rs(in 200ppm H2) ≥ 5

  7. Operating temperature: -10-50℃

  8. Operating humidity: 15-90%RH (non-condensing)

  9. Lifespan: ≥5 years (in air)

  10. Dimension：13×13 x 2.5mm/0.0.51×0.51x0.1"



Documents



Shipping List

  1. Fermion: MEMS H2 Sensor (breakout) × 1

  2. 2.54mm pitch header pin × 1
