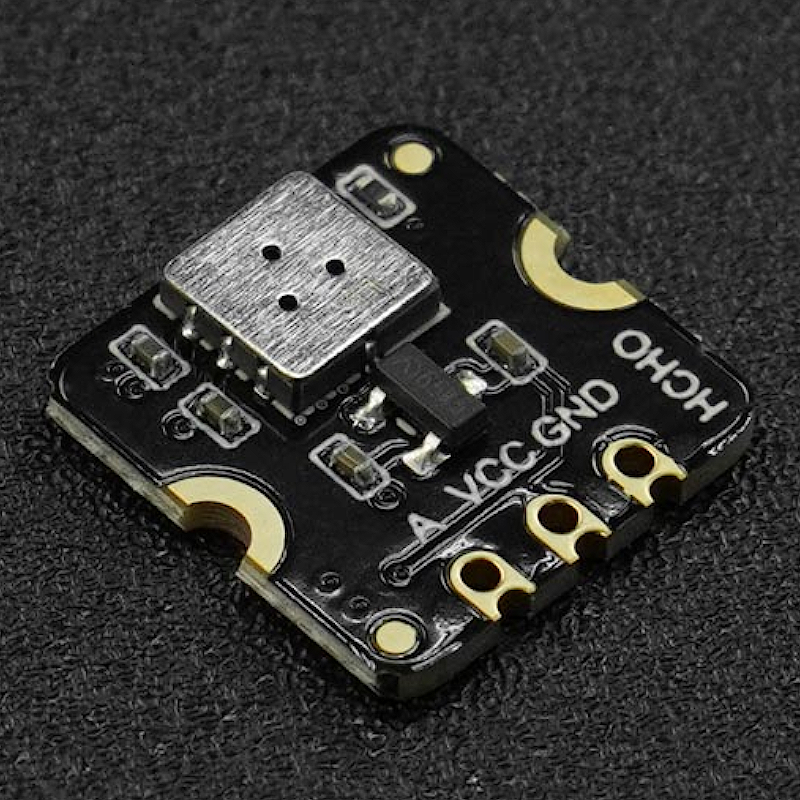

Sensor Analógico compacto MEMS de Formaldeído HCHO (Breakout, 0-3ppm) - DFRobot SEN0563

: SEN08086
5,90 €
preço com IVA incluído

O sensor de aormaldeído utiliza  a tecnologia micro electromecânica (MEMS), fazendo assim com que este produto tenha umas dimensões muito reduzidas e um baixo consumo de energia. Para além disso, este sensor é capaz de medir qualitativamente a concentração de formaldeído de carbono o que o torna perfeito para sistemas de alarme de fuga desse mesmo composto químico.

Se quiseres obter mais informações sobre este produto, incluindo códigos de exemplo, consulta a sua Wiki Page.

Quantidade
Últimos artigos em stock

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

Fermion: MEMS Formaldehyde HCHO Gas Detection Sensor employs state-of-the-art micro-electromechanical system (MEMS) technology, endowing the sensor with compact dimensions (13x13x2.5mm), low power consumption (＜20mA), minimal heat generation, short preheating time, and swift response recovery. This sensor qualitatively measures the concentration of formaldehyde gas, making it suitable for applications in air purifiers, HVAC systems, smart wearables, portable detectors, and more.

The MEMS series currently encompasses 11 different types of gas sensors (HCHO, CO, CH4, VOC, NH3, H2S, EtOH, Smoke, Odor, H2, NO2), which can be combined as per specific requirements.

Please note: This sensor is capable of qualitative measurements only. For quantitative measurements, kindly consider purchasing the Gravity: Factory Calibrated Electrochemical Gas Sensor Series.



Wiring Diagram of Fermion: MEMS HCHO Sensor and Arduino UNO

Figure: Wiring Diagram of Fermion: MEMS HCHO Sensor and Arduino UNO



Precautions for use

  1. Kindly remove the protective film before usage.

  2. To prevent exposure to volatile silicon compounds vapors (such as silicone adhesive, hair gel, silicone rubber, or other locations where volatile silicon compounds are present).

  3. Avoid exposure to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.).

  4. Prevent contamination from alkalis, alkali metal salts, and halogens.

  5. Refrain from prolonged exposure to extreme environments (such as high temperatures, high humidity, high pollution).

  6. Avoid contact with water, condensation, and freezing.

  7. Minimize excessive vibration, impact, and dropping.

  8. Please refrain from employing this module in systems that involve personal safety concerns.

  9. For extended periods of non-usage, it is advisable to preheat the module for at least 24 hours.



Features

  1. Compact size, measuring only 13*13*2.5mm

  2. Low power consumption,operating current ＜20mA

  3. High sensitivity and rapid response recovery

  4. Advanced MEMS technology



Applications

  1. Air purifiers

  2. HVAC systems

  3. Smart wearables

  4. Portable detectors



Specification

  1. Gas detected: HCHO

  2. Detection range: 0-3ppm

  3. Operating voltage: 3.3-5V

  4. Operating current: ＜20mA

  5. Output signal: Analog voltage

  6. Sensitivity: R0(in air)/Rs(in 0.4ppm HCHO) ≥ 1.8

  7. Operating temperature: -10-50℃

  8. Operating humidity: 15-90%RH (non-condensing)

  9. Lifespan: ≥3 years (in air)

  10. Dimension：13×13 x 2.5mm/ 0.0.51×0.51x0.1"



Documents

Shipping List

  1. Fermion: MEMS Formaldehyde HCHO Gas Detection Sensor (breakout) × 1

  2. 2.54mm pitch header pin × 1
