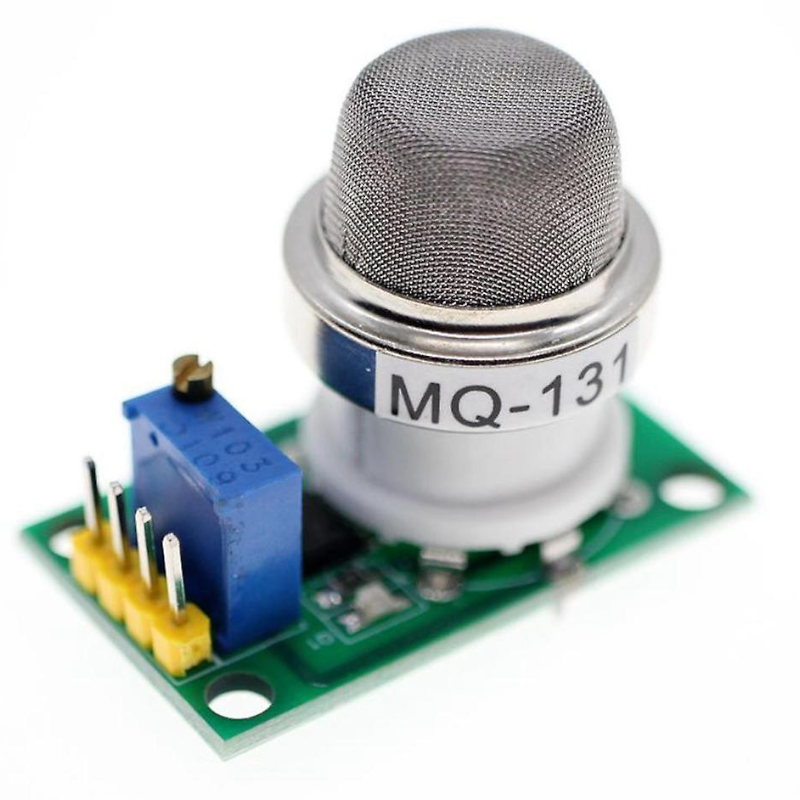

Módulo Sensor de Ozono MQ131 (Alta concentração 10~1000ppm)

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

MQ-131 Ozone Gas Detector Sensor Module The sensitive material of the MQ131 gas sensor is O3 SnO2, which with lower conductivity in clean air. When Ozone gas exists. The sensor’s conductivity is higher along with the gas concentration rising. Please use a simple electro circuit, Convert the change of conductivity to correspond output signal of gas concentration. MQ131 gas sensor has a high sensitivity to Ozone, also sensitive to O3 CL2, NO2, etc.

Features:

1. Fast response characteristics

2. Mounting holes to facilitate fixed installation

3. The probe can plug design for easy testing.

4. Signal light indicates the output

5. Dual signal output (analog output, and TTL-level output)

6. TTL output valid signal is low; (low output signal light, can be accessed by the microcontroller IO port)

7. Analog output increases with the concentration, the higher the voltage the higher the concentration

8. The ozone gas with high sensitivity (detection concentration range 10PPB-2PPM Ozone)

9. Long life and reliable stability

Features/Specs

1. Model No.: MQ-131

2. Sensor: MQ-131

3. Detecting Range: 10PPB-2PPM

4. Working voltage: 5VDC

5. Length: 31 mm

6. Width: 22 mm

7. Height: 29 mm

8. Weight: 8 gm

Documents

1. Datasheet
