Gravity: Sensor de Sulfeto de Hidrogénio (Ácido Sulfídrico) H2S (Calibrado) - I2C & UART

: SEN08069
79,90 €
preço com IVA incluído

Este sensor detecta a concentração de sulfeto de hidrogénio e tem três tipos de saídas: I2C, UART e analógica, sendo compatível com Arduino, ESP32, Raspberry PI, etc. Este sensor já vem calibrado de fábrica, o que te permite medir com rapidez e precisão a concentração de ácido sulfídrico noambiente.

Se quiseres saber mais sobre este produto, consulta a sua Wiki Page. Para conheceres toda a gama de sensores da DFRobot consulta o Guia de Seleção.

Quantidade
Últimos artigos em stock

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

This is a sensor that detects hydrogen sulfide concentration and supports three output modes: analog, I2C, and UART. The probe has been calibrated at the factory, which can quickly and accurately measure the concentration of hydrogen sulfide in the environment. Can be widely used in the detection of hydrogen sulfide in industrial, underground, and environmental protection fields.

The probe adopts the electrochemical principle, has the characteristics of strong anti-interference ability, high stability, high sensitivity, etc., and the service life is as long as two years. The sensor has 32 modifiable I2C addresses, an integrated temperature compensation algorithm, and a threshold alarm function, It has good compatibility with mainstream main control devices such as Arduino, ESP32 and Raspberry PI. The easy-to-use Gravity interface, coupled with our sample code, can quickly build a hydrogen sulfide concentration detector.

DFRobot has introduced 12 gas detection sensors in this series, CO, O2, NH3, H2S, NO2, HCL, H2, PH3, SO2, O3, CL2, HF, which are used in exactly the same way and data format, so you can combine them according to your needs.

Gravity: H2S Sensor (Calibrated) - I2C & UART



Features

  1. Strong anti-interference ability

  2. High stability

  3. High sensitivity



Applications

  1. Underground hydrogen sulfide detection

  2. Industrial hydrogen sulfide detection

  3. Environmental protection device



Specification

  1. Detection Gas: Hydrogen sulfide (H2S)

  2. Detection range: 0~100ppm

  3. Working Voltage: 3.3～5.5V DC

  4. Working Current: ＜5mA

  5. Output Signal: I2C, UART (0~3V), analog voltage

  6. Working Temperature: -20～50℃

  7. Working Humidity: 15～90%RH (non-condensing)

  8. Storage Temperature: -20～50℃

  9. Storage Humidity: 15～90%RH (non-condensing)

  10. Lifespan: ＞2 years (in the air)

  11. Adapter Plate Size: 37*32mm

  12. Compatibility: Arduino, ESP32, Raspberry pi



Documents

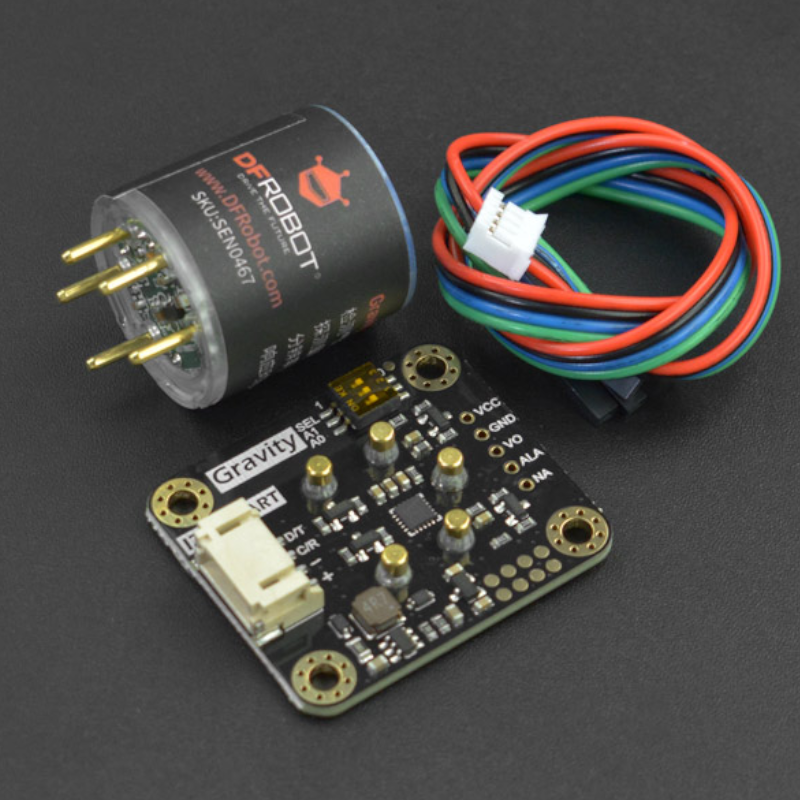

Shipping List

  1. Gravity: H2S Signal Conversion Board x1

  2. H2S sensor probe x1

  3. Gravity - 4pin Cable x1
