Gravity: Sensor de Cloreto de Hidrogénio (Ácido Clorídrico) HCL (Calibrado) - I2C & UART

: SEN08074
184,90 €
preço com IVA incluído

Este sensor detecta a concentração de cloreto de hidrogénio e tem três tipos de saídas: I2C, UART e analógica, sendo compatível com Arduino, ESP32, Raspberry PI, etc. Este sensor já vem calibrado de fábrica, o que te permite medir com rapidez e precisão a concentração cloreto de hidrogénio no ambiente.

Se quiseres saber mais sobre este produto, consulta a sua Wiki Page. Para conheceres toda a gama de sensores da DFRobot consulta o Guia de Seleção.

Quantidade
Últimos artigos em stock

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

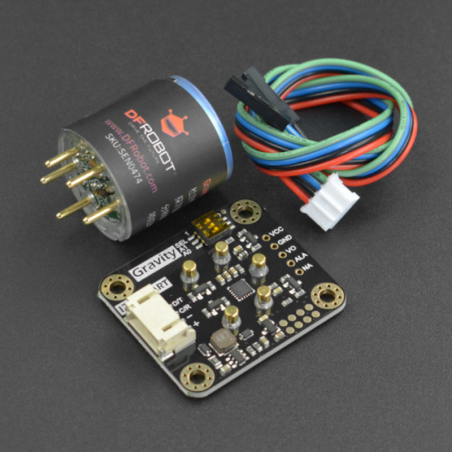

This is a sensor that detects hydrogen chloride concentration and supports three output modes: analog, I2C, and UART. The probe has been calibrated at the factory, which can quickly and accurately measure the concentration of hydrogen chloride in the environment. Can be widely used in the detection of hydrogen chloride in the industrial, underground, and environmental protection fields.

The probe adopts the electrochemical principle, has the characteristics of strong anti-interference ability, high stability, high sensitivity, etc., and the service life is as long as two years. The sensor has 32 modifiable I2C addresses, an integrated temperature compensation algorithm, and a threshold alarm function, It has good compatibility with mainstream main control devices such as Arduino, ESP32,  Raspberry PI . The easy-to-use Gravity interface, coupled with our sample code, can quickly build a hydrogen chloride concentration detector.

DFRobot has introduced 12 gas detection sensors in this series, CO, O2, NH3, H2S, NO2, HCL, H2, PH3, SO2, O3, CL2, HF, which are used in exactly the same way and data format, so you can combine them according to your needs.

Gravity: HCL Sensor (Calibrated) - I2C & UART



Features

  1. Strong anti-interference ability

  2. High stability

  3. High sensitivity



Applications

  1. Industrial hydrogen chloride detection

  2. Underground hydrogen chloride detection

  3. Environmental protection device



Specification

  1. Detection Gas: Hydrogen chloride (HCL)

  2. Detection range: 0~10ppm

  3. Working Voltage: 3.3～5.5V DC

  4. Working Current: ＜5mA

  5. Output Signal: I2C, UART (0~3V), analog voltage

  6. Working Temperature: -20～50℃

  7. Working Humidity: 15～90%RH (non-condensing)

  8. Storage Temperature: -20～50℃

  9. Storage Humidity: 15～90%RH (non-condensing)

  10. Lifespan: >2 years (in the air)

  11. Adapter Plate Size: 37*32mm

  12. Compatibility: Arduino, ESP32, Raspberry pi



Documents



Shipping List

  1. Gravity: HCL Signal Conversion Board x1

  2. HCL sensor probe x1

  3. Gravity - 4pin Cable x1

SEN08074
