Gravity: Sensor de Fluoreto de Hidrogénio (Ácido Fluorídrico) HF (Calibrado) - I2C & UART

This is a sensor that detects hydrogen fluoride concentration and supports three output modes: analog, I2C, and UART. The probe has been calibrated at the factory, which can quickly and accurately measure the concentration of hydrogen fluoride in the environment. Can be widely used in the detection of hydrogen fluoride in industrial and environmental protection fields.

The probe adopts the electrochemical principle, has the characteristics of strong anti-interference ability, high stability, high sensitivity, etc., and the service life is as long as two years. The sensor has 32 modifiable I2C addresses, an integrated temperature compensation algorithm, and a threshold alarm function, It has good compatibility with mainstream main control devices such as Arduino, ESP32, and Raspberry Pi. The easy-to-use Gravity interface, coupled with our sample code, can quickly build a hydrogen fluoride concentration detector.

DFRobot has introduced 12 gas detection sensors in this series, CO, O2, NH3, H2S, NO2, HCL, H2, PH3, SO2, O3, CL2, HF, which are used in exactly the same way and data format, so you can combine them according to your needs.

1. Strong anti-interference ability

2. High stability

3. High sensitivity

1. Industrial hydrogen fluoride detection

2. Environmental protection device

1. Detection Gas: Hydrogen fluoride (HF)

2. Detection range: 0~10ppm

3. Working Voltage: 3.3～5.5V DC

4. Working Current: ＜5mA

5. Output Signal: I2C, UART (0~3V), analog voltage

6. Working Temperature: -20～50℃

7. Working Humidity: 15～90%RH (non-condensing)

8. Storage Temperature: -20～50℃

9. Storage Humidity: 15～90%RH (non-condensing)

10. Lifespan: >2 years (in the air)

11. Adapter Plate Size: 37*32mm

12. Compatibility: Arduino, ESP32, Raspberry pi

1. Product wiki

2. DFRobot Gas Sensor Selection Guide

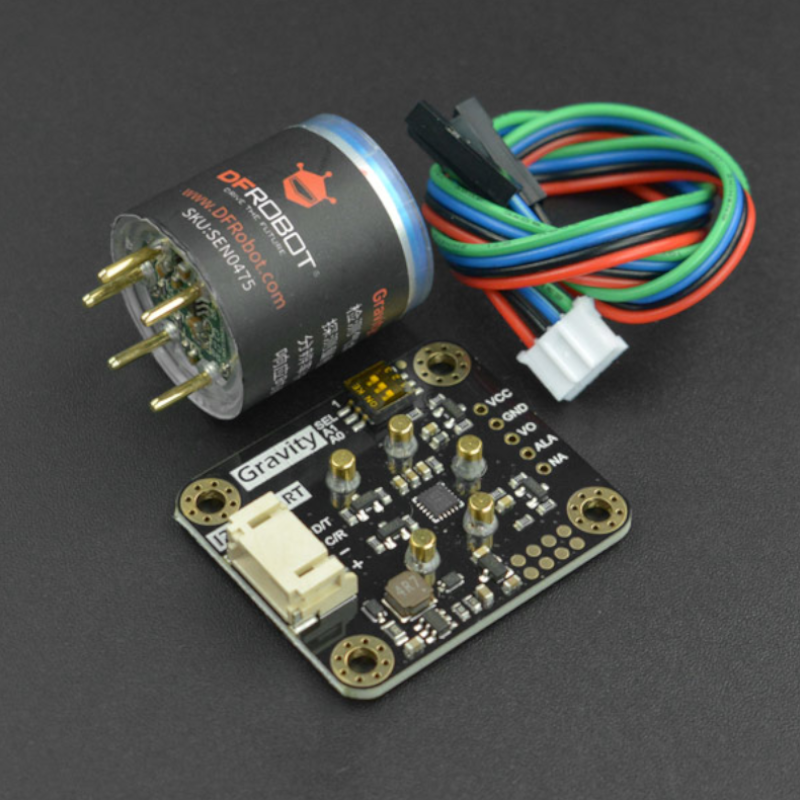

1. Gravity: HF Signal Conversion Board x1
2. HF sensor probe x1
3. Gravity - 4pin Cable x1
