Gravity: Sensor Fotoelétrico Nível de Água para Arduino - SEN0205

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

INTRODUCTION

This is a photoelectric water liquid level sensor that is operates using optical principles. The advantages of this photoelectric water liquid level sensor are good sensitivity and no need for mechanical parts - meaning less calibration! The corrosion resistant probe is easily mounted and can handle high temperature and high pressure. The arduino liquid sensor is equipped with an interface adapter for compatibility with the DFRobot "Gravity" interface.


To ease the difficulty of using this arduino liquid sensor,  a Gravity Interface is adapted to allow plug&play.  The Arduino IO expansion shield is the best match for this senor connecting to  Arduino. As this liquid sensor is able to work at 3.3V which makes it compatible with Raspberry Pi, intel edison, joule and curie.


Note: Avoid placing the sensor near bright lights or in direct sunlight as these can cause interference.

SPECIFICATION

• Model: FS-IR02
• Type: Photoelectric liquid level sensor
• Operating voltage: 5 VDC
• Output current: 12 mA
• Working temperature: - 25 ~ 105 ℃
• Low level output: < 0.1 V
• High level output: > 4.6 V
• Liquid level detection accuracy: ±0.5 mm
• Material: PC
• Measuring range: No limit
• Life: 50,000 hours
• Dimension: 28 x 28 mm/ 1.1 x 1.1 inches
• Cable Length: 450mm
• Weight: 26g

DOCUMENTS

• Wiki (Liquid Level Sensor-FS-IR02 SKU: SEN0205)
• More Resource

SHIPPING LIST

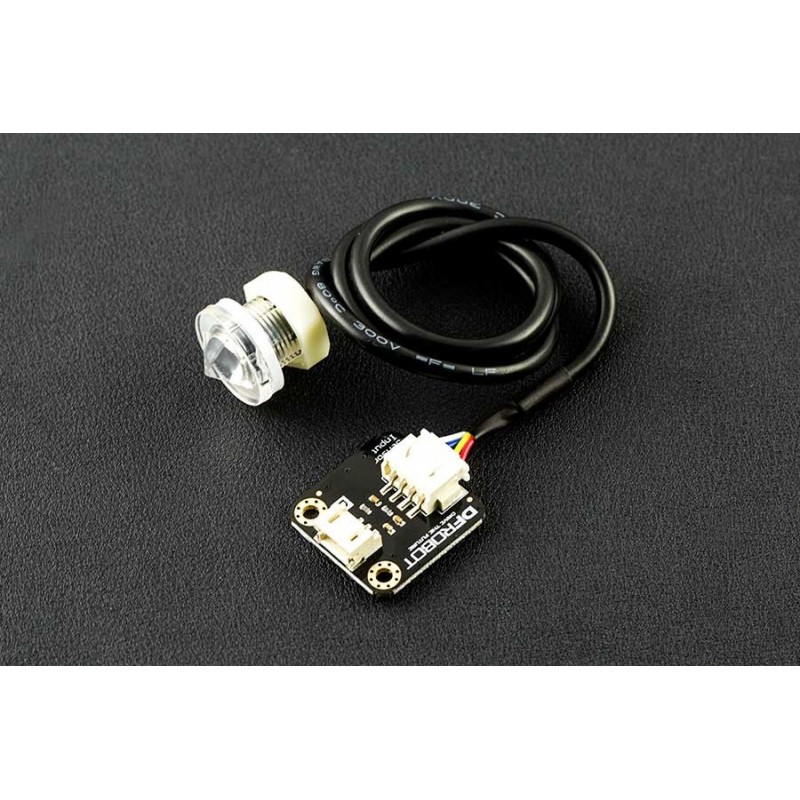

• Liquid Level Sensor-FS-IR02 probe x1
• Liquid Level Sensor convert board x1
