Power:bit Móldulo de Alimentação de 2 pilhas CR2025 para micro:bit - ELECFREAKS EF03409

Description

ELECFREAKS Power:bit is a pocket-sized extension board. It is powered by two 2025 button batteries and carries a buzzer on the board. Due to its small cute size and abundant electric power, it is quite suitable to be applied to micro:bit wearable devices like pedometers, timers, portable music broadcasters, and so on.

DIMENSION

PINS & CONNECTORS

FEATURES

1. Powered by two CR2025 li-batteries.

2. The buzzer on board is connected to the P0 port on micro:bit.

3. P0, P1, P2, 3V, and GND can be led out by pins.

4. Enable to match micro:bit and acrylic watch band.

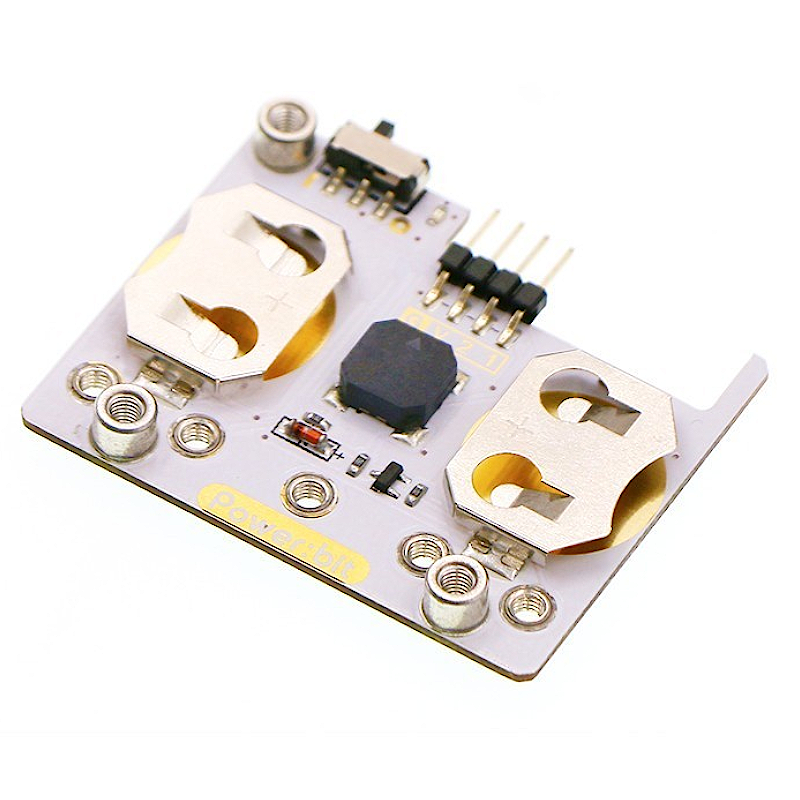

MAJOR COMPONENTS

Power Switch
The end marked I is for power on, and the other marked O is for power off.



1x4 Pin Connector
It can export pins like P1, P2, 3V, and GND. We can use it to do some extensions.



Two CR2025 Battery Sockets

You can place two 2025 batteries（or a 3V button battery）into the socket.


Buzzer
The buzzer is controlled by the P0 port.

HARDWARE CONNECTION

Fix micro:bit onto power:bit with 5 screws. Then place a pair of 3V 2050 batteries into the battery socket of power:bit. When we slide the switch to the end marked I, the whole device is powered on. When we slide the switch to the end marked O, the whole device is powered off.
