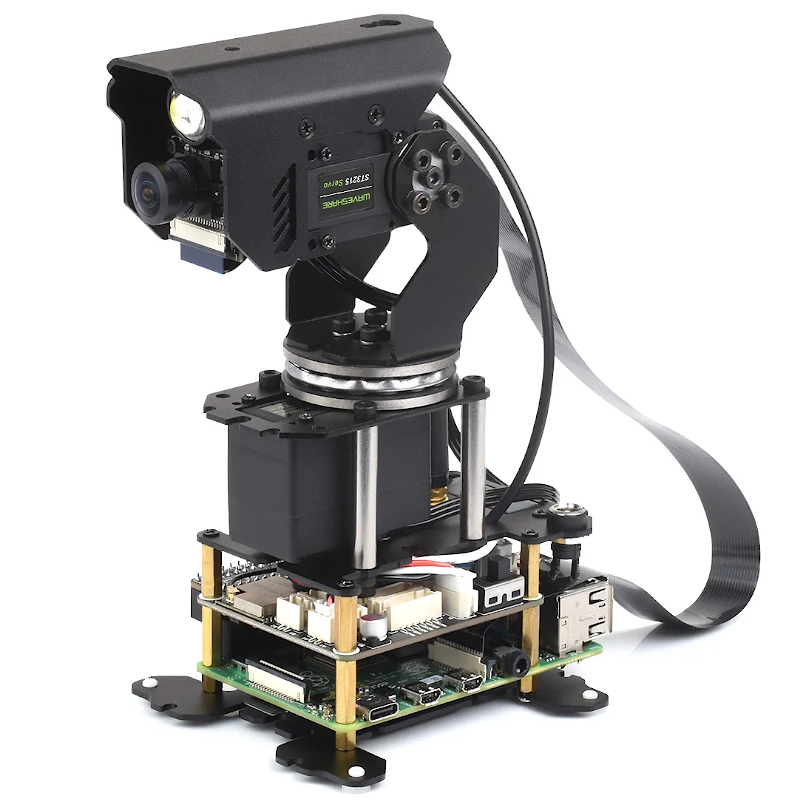

Sistema Pan-Tilt Omnidirecional p/ Raspberry (não incluída) c/ Câmera 0V5647 5MP 160° e Lanterna Led - Waveshare 26519

* for reference only, the Raspberry Pi 4B is NOT included.

Specifications

Easy To Control Via Cross-Platform Web Application

Allows connecting and controlling the pan-tilt module via mobile phones, tablets and computers by clicking the buttons on the Web App. Supports secondary development of this open-source Web App to customize the user interface and add new functions.

Flexible 360° omnidirectional rotation

The Horizontal Rotation Range Up To 360°, The Vertical Rotation Range Up To 135°

Supports Raspberry Pi 4B / 5

Highly compatible with Raspberry Pi, can be easily integrated into your project.

* for reference only, the Raspberry Pi is NOT included.

Open-Source All Demos for a variety of practical functions

160° ultra wide-angle camera

Comes with 0V5647 5MP 160 ultra wide-angle camera
Capture wider area to meet various visual requirements

LED Fill Light

Ensures clear images in low-light conditions

Small size × high-torque

30kg.cm ultimate joint torque to meet various working requirements

* for reference only, please refer to the Package Content for detailed part list

Joint Direct-Drive Design with High-precision serial bus servos

Adopts joint direct-drive design with high-precision serial bus servos, built in 360° 12-bit magnetic encoder, supports obtaining feedback information such as joint angle and Joint load to realize closed-loop control

Supports Flexible Expansion And Secondary Development

Comes with a free Picatinny rail and 1/4 screw, open source for models and drawings.
More convenient for users to integrate this pan-tilt camera module into other projects

* for reference only, please refer to the Package Content for detailed part list

Outline dimensions

Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Package Content

Weight: 0.888 kg

1. Bearing retainer x1

2. Servo mounting plate (2PCS) x1

3. Pan-Tilt metal kit (3PCS) x1

4. Chassis mounting plate (2PCS) x1

5. LED fill light with PH2.0 male plug x1

6. RPi Camera (G) (with cable) x1

7. ST3215 Servo (with cable and screws) x2

8. 3PIN servo connection cable ~300mm x2

9. FFC 15PIN cable ~600mm x1

10. Thrust ball plain bearing x1

11. 2.4G antenna x1

12. DC5521 to XH2.54 male cable ~15cm x1

13. PH2.0 dual-plug 4PIN cable ~20cm x1

14. IPEX 1 to SMA adapter cable ~17cm x1

15. 0.91inch OLED x1

16. General Driver for Robots x1

17. 5.3cm clear suction pad x5

18. 12V 5A Power supply x1

19. Screwdriver x1

20. Jetson Nano Adapter (A) x1

21. 2*5PIN cable ~9cm x1

22. USB Type-A male to Type-C male cable ~1m x1

23. Mini cross wrench sleeve x1

24. Picatinny rail (with spanner) x1

25. Spanner x1

26. FFC 15PIN black cable ~400mm x1

27. Pi5-Camera-Cable-500mm x1

28. Silicone nonskid feet x8

29. Screws pack x1
