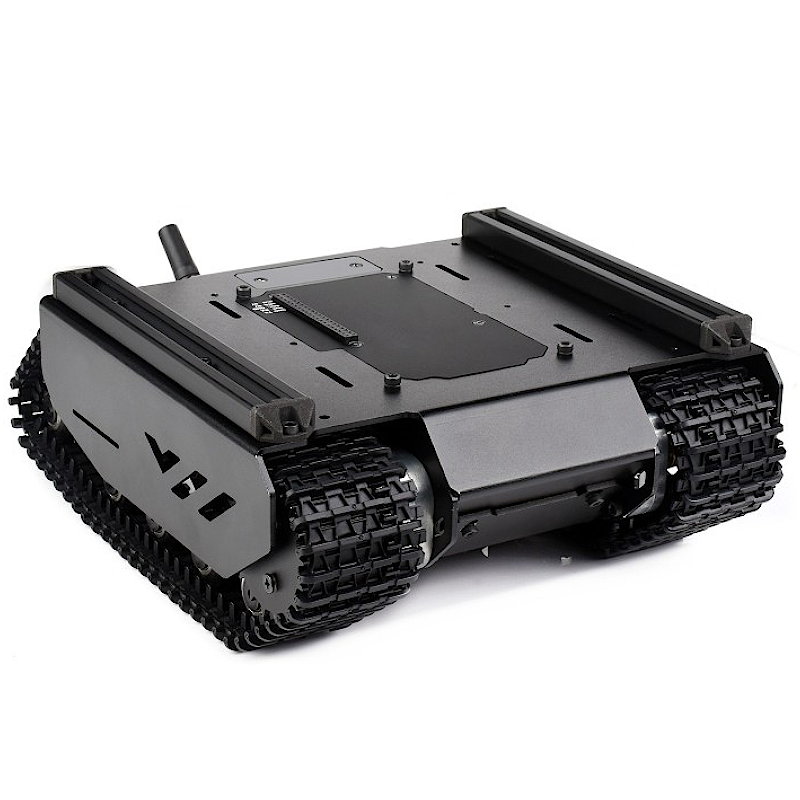

UGV01 - Base UGV de Lagartas Expansível c/ driver ESP32, Suporta Hosts Pi e Jetson (3x18650 não incluídas) - Waveshare 24019

: ROB04017
175,00 €
preço com IVA incluído

Esta plataforma robótica tem um formato de um tanque com lagartas e conta com um chassi todo em metal, dois perfis de alumínio para adicionares mais acessórios à tua plataforma e ainda amortecedores, o que faz com esta plataforma tenha um desempenho todo o terreno. Podes controlar esta base através da sua aplicação web ou então através da tua Raspberry Pi ou da placa Jetson Nano.

Se quiseres saber mais sobre este produto, consulta a sua Wiki Page.

Nota: Irás precisar de 3 baterias 18650 para alimentar esta plataforma robótica.

Quantidade
Últimos artigos em stock

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.





Features at a glance

The UGV01 series is a tracked mobile robot chassis, which features superb off-road crossing ability and anti-vibration performance, open source all code for secondary development. It supports multiple host computers (Raspberry Pi, Jetson Nano, etc), the host computer can communicate with the ESP32 slave computer through the serial port. The motor with encoder can obtain the speed feedback for closed-loop speed control. Built in 3S UPS power supply module, supports 3 x 18650 Li batteries (in series, NOT included), which provides uninterruptible power for the robot and supports charging and power output at the same time. Built in multi-functional robot driver board, based on ESP32, with onboard WIFI and Bluetooth, for driving serial bus servos, outputing PWM signal, expanding TF card slot, etc.

The UGV01 adopts multiple independent Suspension Systems which greatly reduce the impact of complex terrains, can easily meet the needs of heavy loads, shock absorption, and off-road. Also, it comes with 2x 1020 European standard profile rails, provides more possibilities for secondary development.




Specifications

Outline dimensions

231×197×151mm

Suspension systems

4×2 (independent)

Chassis height

26mm

Rail Center distance

170mm

Track width

44mm

Running speed

0.25~1m/s

Track level grounding length (non-load)

115mm

Suspension material

1.5mm (thickness) stainless steel

Track climbing grounding length (with large load)

170mm

Body material

2mm (thickness) 5052 Aluminum Alloy

Weight

1.9kg

Vertical obstacle ability

40mm

Driving payload

6.2kg

Climbing ability

36°

Battery support

18650 Lithium battery × 3 (NOT Included)

Minimum turning radius

0m (In-situ Rotation)

Charging time

1.5h

Battery life

1h (full power continuous output)

Motor power

5.2W × 2

Remote control function

WIFI AP/STA

Motor encoder

Basic pulse 11PPR

Communication interface

UART /serial bus servo interface / IIC










Dimensions




Resources & Services


* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.



Package Content

Weight: 3.232 kg
